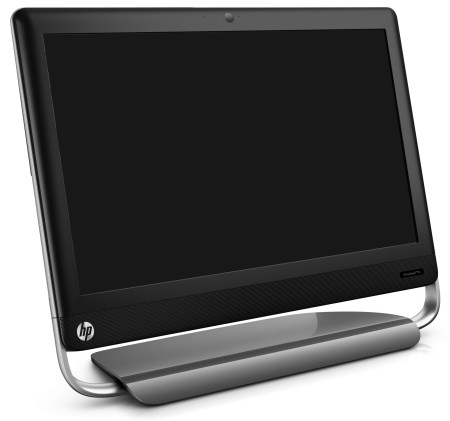

TouchSmart 520-1080a AMD A6 A6-3600
58.4 cm (23") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 6450A Windows 7 Home Premium Black
Model 520-1080aPart no. QF215AAEAN 887111017802
83 specifications
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ProcessorAMD A6
- Memory4 GB
- Storage1 TB
- GraphicsAMD Radeon HD 6450A
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD A6
- Memory
- 4 GB
- Storage
- 1 TB
- Graphics
- AMD Radeon HD 6450A
- Brand
- HP
- Category
- All-in-One PCs/Workstations
- Model
- 520-1080a
- Part number
- QF215AA
- EAN / UPC
- 887111017802
- Also known as
- HP TouchSmart 520-1080a AMD A6 A6-3600 58.4 cm (23") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 6450A Windows 7 Home Premium Black
Specifications
83 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Full HD | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.78 million colours |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD A6 |
| Processor model | A6-3600 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.4 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 4 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 8 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1333 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD speed | 7200 RPM |
| HDD interface | SATA II |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | DV RS-MMC, Memory Stick (MS), MicroSD (TransFlash), miniSD, MMC, MMC+, MS Duo, MS PRO, MS PRO Duo, SD, SDHC, xD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | AMD Radeon HD 6450A |
| On-board graphics card | Yes |
| On-board graphics card family | AMD Radeon HD 6000 |
| On-board graphics card model | AMD Radeon HD 6530D |
| On-board graphics card memory | 0.375 GB |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 8 W |
| Built-in microphone | Yes |
| Audio system | HD |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Camera resolution | 1280 x 720 pixels |
Optical drive
| Specification | Value |
|---|---|
| Optical drive interface | SATA |
| Disc types supported | CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM, DVD-ROM, DVD-RW |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DVI port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Country of origin | China |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | AMD A75 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 64-bit |
Power
| Specification | Value |
|---|---|
| AC adapter power | 180 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 580 mm |
| Depth (with stand) | 217 mm |
| Height (with stand) | 457 mm |
| Weight (with stand) | 11.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Graphics card family | AMD |
| AC adapter output current | 9.5 A |
| Display diagonal (metric) | 58.42 cm |
| Display included | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit LAN, WLAN |
| Speakers | 2 |
| Storage drive interface | Serial ATA II |
