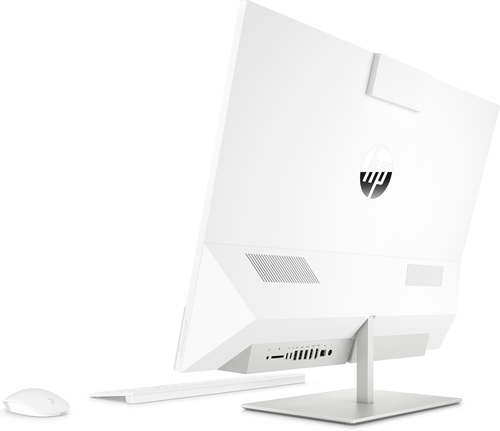

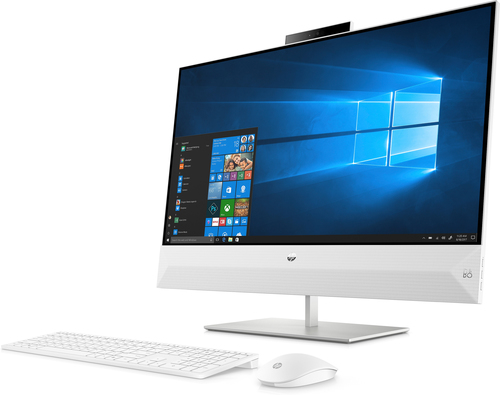

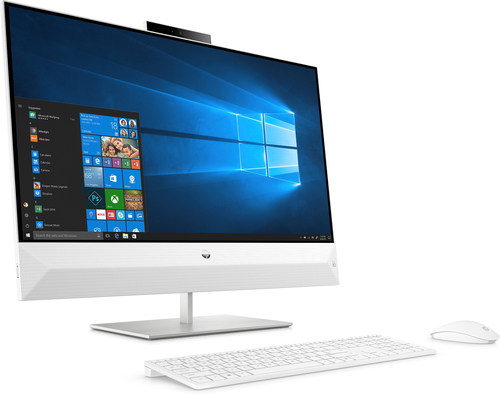

HP Pavilion 27-xa0034na Intel® Core™ i5 i5-9400T
HP

Pavilion 27-xa0034na Intel® Core™ i5 i5-9400T

68.6 cm (27") 2560 x 1440 pixels All-in-One PC 8 GB DDR4-SDRAM 2.25 TB HDD+SSD Windows 10 Home Wi-Fi 5 (802.11a

Model 27-xa0034naPart no. 7DZ47EAEAN 193905489343

160 specifications
  • Display68.6 cm (27")
  • Resolution2560 x 1440 pixels
  • ProcessorIntel® Core™ i5
  • Memory8 GB
  • Storage2.25 TB
  • GraphicsNot available
See all specifications

Overview

Display
68.6 cm (27")
Resolution
2560 x 1440 pixels
Processor
Intel® Core™ i5
Memory
8 GB
Storage
2.25 TB
Graphics
Not available
Brand
HP
Model
27-xa0034na
Part number
7DZ47EA
EAN / UPC
193905489343
Also known as
HP Pavilion 27-xa0034na Intel® Core™ i5 i5-9400T 68.6 cm (27") 2560 x 1440 pixels All-in-One PC 8 GB DDR4-SDRAM 2.25 TB HDD+SSD Windows 10 Home Wi-Fi 5 (802.11a

Specifications

160 specifications in 19 groups

Display

Display diagonal68.6 cm (27")
Display resolution2560 x 1440 pixels
TouchscreenNo
HD typeQuad HD
LED backlightYes
Display brightness350 cd/m²
Panel typeIPS
Anti-glare screenYes
RGB colour spaceNTSC
Screen shapeFlat
Colour gamut72%

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation9th gen Intel® Core™ i5
Processor modeli5-9400T
Processor cores6
Processor threads6
Processor boost frequency3.4 GHz
Processor frequency1.8 GHz
Processor cache9 MB
Processor cache typeL3
Processor socketLGA 1151 (Socket H4)
System bus rate8 GT/s
Thermal Design Power (TDP)35 W
Configurable TDP-down frequency1.2 GHz
Configurable TDP-down25 W
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
Processor lithography14 nm
Processor operating modes64-bit
Tjunction100 °C
Maximum internal memory supported by processor128 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2666 MHz
Memory bandwidth supported by processor (max)41.6 GB/s

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Memory slots1
Memory slots typeSO-DIMM
Memory clock speed2666 MHz
Memory layout (slots x size)1 x 8 GB
Memory form factorDIMM/SO-DIMM
ECCNo

Storage

Total storage capacity2.25 TB
Storage mediaHDD+SSD
Total HDDs capacity2 TB
Number of HDDs installed1
HDD capacity2 TB
HDD speed5400 RPM
HDD interfaceSATA
Total SSDs capacity256 GB
Number of SSDs installed1
SSD capacity256 GB
NVMeYes
SSD interfaceNVMe
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1050 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x3E92
On-board graphics card OpenGL version4.5

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power4 W
Built-in microphoneYes
Audio systemB&O PLAY

Camera

Built-in cameraYes

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN controller manufacturerRealtek
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Antenna type2x2
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.2

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Thunderbolt 3 ports quantity0
Thunderbolt ports quantity0
HDMI ports quantity2
HDMI version1.4
VGA (D-Sub) ports quantity0
Headphone outputs0
Microphone inNo
Combo headphone/mic portYes

Design

Product colourWhite
Country of originChina

Performance

Product typeAll-in-One PC
Motherboard chipsetIntel® H370

Software

Operating system installedWindows 10 Home
Operating system architecture64-bit
Trial softwareMicrosoft Office 365
Bundled softwareDropbox, Netflix, McAfee LiveSafe

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel TSX-NINo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID134893
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015A

Brand-specific features

HP JumpStartYes
HP speaker typeHP Dual Speakers
HP Audio SwitchYes
HP Display ControlYes
HP front cameraHP TrueVision HD IR
HP Software providedHP Connection Optimizer

Power

AC adapter power150 W

Weight & dimensions

Width (with stand)612 mm
Depth (with stand)194 mm
Height (with stand)483 mm
Weight (with stand)7.65 kg
Package width712 mm
Package depth240 mm
Package height598 mm
Package weight11.9 kg

Sustainability

Sustainability certificatesEPEAT Silver, ENERGY STAR

Packaging content

Mouse includedYes
Keyboard includedYes

Other features

3DNo
Display bezel technologyMicro-Edge
Autonomy modeNo
Detachable displayNo
Display diagonal (metric)68.6 cm
