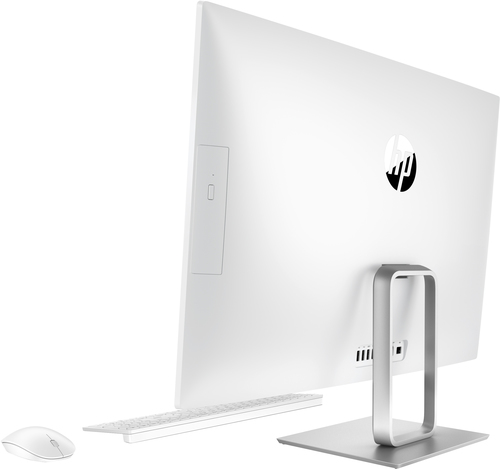

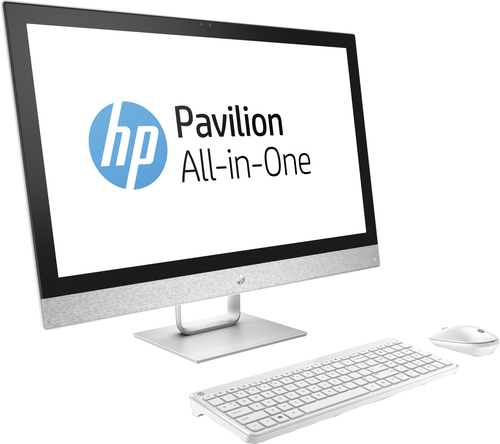

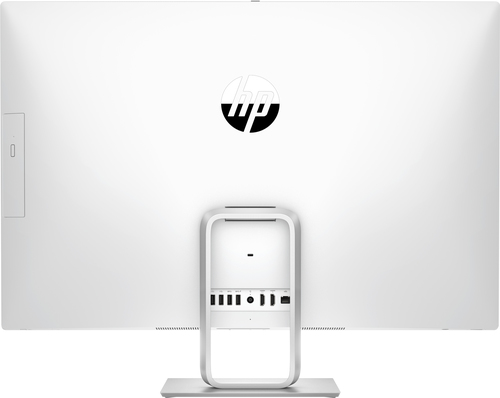

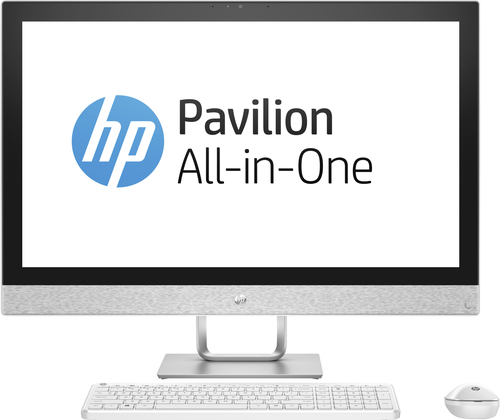

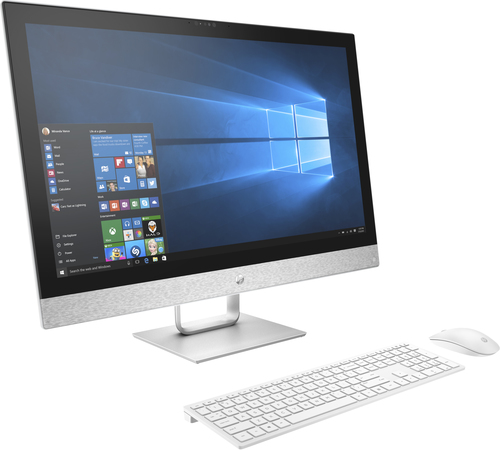

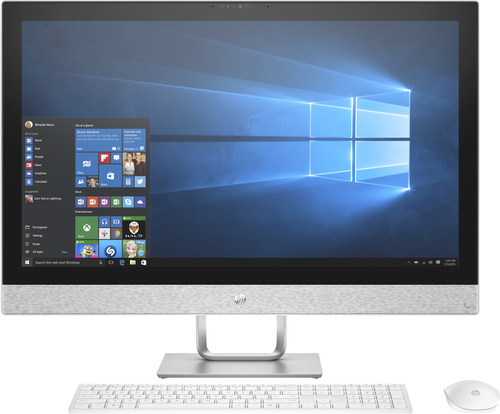

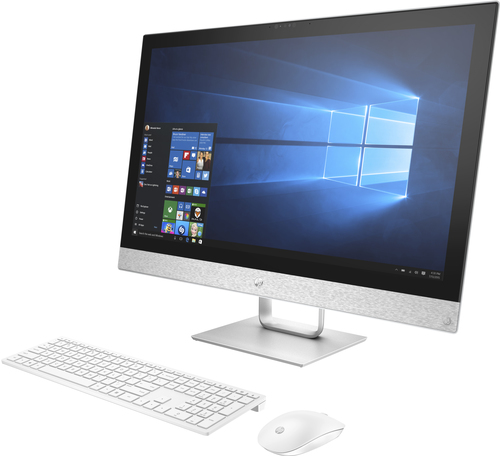

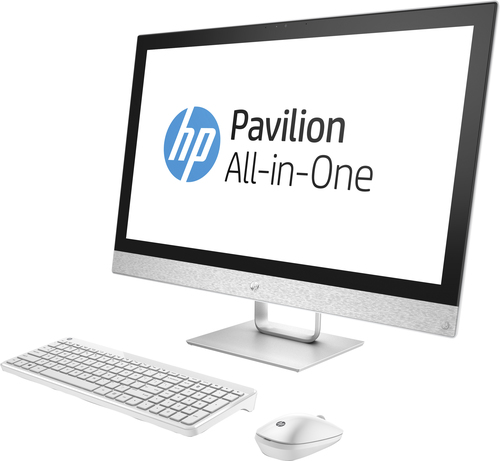

Pavilion 27-r070nd Intel® Core™ i5 i5-7400T

68.6 cm (27") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 1.12 TB HDD+SSD Windows 10 Home White

Model 27-r070ndPart no. 2ML16EA#ABH

160 specifications

Overview

Brand: HP
Category: All-in-One PCs/Workstations
Model: 27-r070nd
Part number: 2ML16EA#ABH
Also known as: HP Pavilion 27-r070nd Intel® Core™ i5 i5-7400T 68.6 cm (27") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 1.12 TB HDD+SSD Windows 10 Home White

160 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7400T
Processor cores	4
Processor threads	4
Processor boost frequency	3 GHz
Processor frequency	2.4 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	LGA 1151 (Socket H4)
System bus rate	8 GT/s
Thermal Design Power (TDP)	35 W
Configurable TDP-down frequency	1.2 GHz
Bus type	DMI3
Maximum number of PCI Express lanes	16
Number of QPI links	0
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor code	SSSR332
Processor codename	Kaby Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-7400 Desktop Series
Stepping	B0
Tjunction	80 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Specification	Value
Total storage capacity	1.12 TB
Storage media	HDD+SSD
Number of storage drives installed	2
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	M.2
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5912
On-board graphics card OpenGL version	4.4

Specification	Value
Built-in camera	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes
DC-in jack	Yes

Specification	Value
Product colour	White
Country of origin	China

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H270

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Bundled software	McAfee LiveSafe Netflix Testversie voor 1 maand voor nieuwe Microsoft Office 365-klanten HP audioschakelaar HP Display Control HP JumpStart

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	97184
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A

Specification	Value
AC adapter power	120 W
