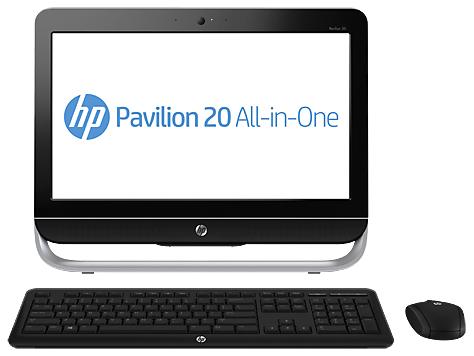

Pavilion 20-b015d Intel Pentium G G870

50.8 cm (20") 1600 x 900 pixels All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD Windows 8 Black

Model 20-b015dPart no. H4G10AAEAN 887111424853

135 specifications

Overview

Brand: HP
Category: All-in-One PCs/Workstations
Model: 20-b015d
Part number: H4G10AA
EAN / UPC: 887111424853
Also known as: HP Pavilion 20-b015d Intel Pentium G G870 50.8 cm (20") 1600 x 900 pixels All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD Windows 8 Black

135 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G870
Processor cores	2
Processor threads	2
Processor frequency	3.1 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	31
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G800 Series for Desktop
Tcase	69.1 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MS Duo, MS PRO, MS PRO Duo, SD, SDHC, SDXC

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Specification	Value
Built-in camera	Yes
Camera resolution	1280 x 720 pixels

Specification	Value
Optical drive interface	SATA

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H61

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Trial software	Norton Internet Security 2013
Bundled software	Cyberlink Power2Go Cyberlink PowerDVD Cyberlink Photo Director Cyberlink YouCam Deluxe HP Support Assistant HP Recovery Manager Microsoft Internet Explorer 10

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53493
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
