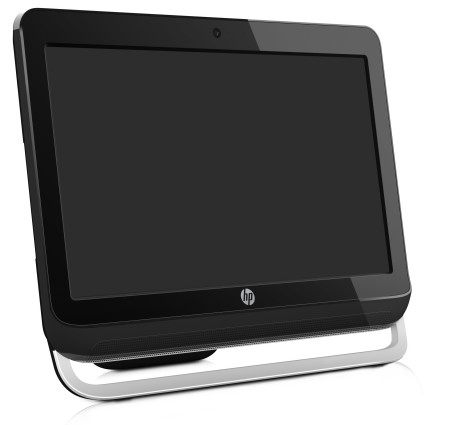

Omni 120-1229l Intel® Core™ i3 i3-2120

50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 1 TB HDD FreeDOS Black

Model 120-1229lPart no. H3U05AA

145 specifications

Overview

Brand: HP
Category: All-in-One PCs/Workstations
Model: 120-1229l
Part number: H3U05AA
Also known as: HP Omni 120-1229l Intel® Core™ i3 i3-2120 50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 1 TB HDD FreeDOS Black

145 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2120
Processor cores	2
Processor threads	4
Processor frequency	3.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	33
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-2100 Desktop Series
Tcase	69.1 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA II
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MicroSD (TransFlash), miniSD, MMC, MMC+, MS Duo, MS PRO, MS PRO Duo, SD, SDHC, xD

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
On-board graphics card memory	0.25 GB
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102

Specification	Value
Built-in camera	Yes
Camera resolution	640 x 480 pixels

Specification	Value
Optical drive interface	SATA
Disc types supported	CD-R, CD-ROM, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM, DVD-ROM, DVD-RW

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes

Specification	Value
Motherboard chipset	Intel® H61
Placement supported	Horizontal

Specification	Value
Operating system installed	FreeDOS

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53426
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
