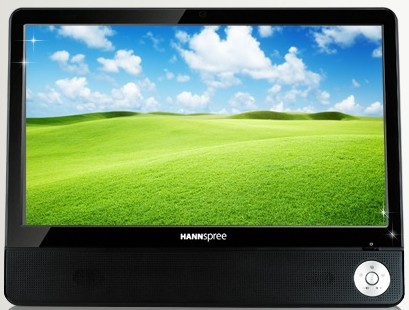

Hannspree SN22A1 All-in-One PC/workstation Intel Atom® D510

54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 3 GB DDR2-SDRAM 320 GB Windows 7 Home Premium Black

Model SN22A1EAN 4716329050126

139 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel Atom®
Memory3 GB
Storage320 GB
OSWindows 7 Home Premium

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel Atom®
Memory: 3 GB
Storage: 320 GB
OS: Windows 7 Home Premium

Brand: Hannspree
Category: All-in-One PCs/Workstations
Model: SN22A1
Part number: SN22A1
EAN / UPC: 4716329050126
Also known as: Hannspree SN22A1 All-in-One PC/workstation Intel Atom® D510 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 3 GB DDR2-SDRAM 320 GB Windows 7 Home Premium Black

Specifications

139 specifications in 19 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Display number of colours	16.78 million colours
Viewing angle, horizontal	170°
Viewing angle, vertical	160°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBLA
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory layout (slots x size)	1 x 1 + 1 x 2 GB

Storage

Specification	Value
Total storage capacity	320 GB
Number of HDDs installed	1
HDD capacity	320 GB
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD

Graphics

Specification	Value
On-board graphics card	Yes

Audio

Specification	Value
Number of speakers	2
Built-in microphone	Yes
Audio formats supported	AAC, AC3, WMA

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	No
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Firewire (IEEE 1394) ports	0
PS/2 ports quantity	0
Serial ports quantity	0

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	43098
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Power

Specification	Value
AC adapter frequency	50/60 Hz
Power consumption (standby)	2 W

Weight & dimensions

Specification	Value
Width (with stand)	527.4 mm
Depth (with stand)	404.9 mm
Height (with stand)	72.4 mm
Weight (with stand)	6.1 kg
Package weight	850 g

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CE, CB, WEEE, REACH, ErP lot 6

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Packaging content

Specification	Value
Drivers included	Yes

Other features

Specification	Value
Graphics card family	Intel
Package dimensions (WxDxH)	594 x 161 x 493 mm
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Compliance industry standards	IEEE 802.1P, 802.1Q, 802.3, 802.3u, 802.3ab
Display	LED
Display included	Yes
Line-in	Yes
Megapixel (approx.)	1.3 MP
Networking topology	10,100,1000
Number of processors installed	1
Parallel ports quantity	0
Platform	PC
Power requirements	100-240V, 19V
Power supply	65 W
Power supply type	AC/DC
Safety	HSG1161
Speakers	Yes
