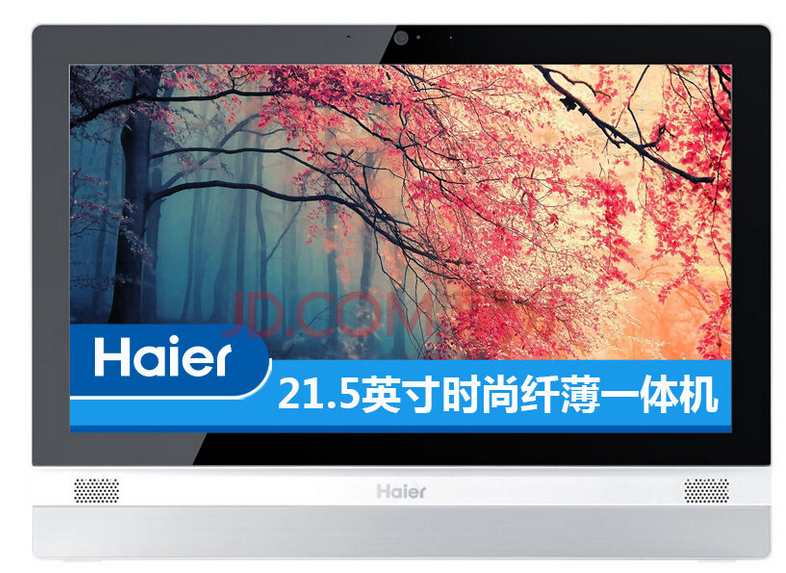

Haier S7-B233M All-in-One PC/workstation Intel® Celeron® 2950M

54.6 cm (21.5") 1920 x 1080 pixels All-in-One workstation 4 GB DDR3L-SDRAM 500 GB HDD NVIDIA® GeF

Model S7-B233M

111 specifications

Overview

Brand: Haier
Category: All-in-One PCs/Workstations
Model: S7-B233M
Part number: S7-B233M
Also known as: Haier S7-B233M All-in-One PC/workstation Intel® Celeron® 2950M 54.6 cm (21.5") 1920 x 1080 pixels All-in-One workstation 4 GB DDR3L-SDRAM 500 GB HDD NVIDIA® GeF

111 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	2950M
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	PGA946
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	37 W
Bus type	DMI
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Processor code	SR1HF
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor 2000 Series for Mobile
Stepping	C0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 720M
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR3
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Specification	Value
Built-in speaker(s)	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
Headphone outputs	1
Microphone in	Yes

Specification	Value
Product type	All-in-One workstation

Specification	Value
Operating system installed	FreeDOS

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	77403
Processor package size	37.5 x 37.5 x 4.7 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
