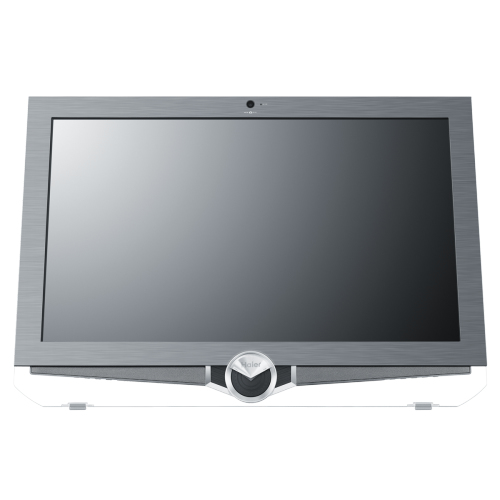

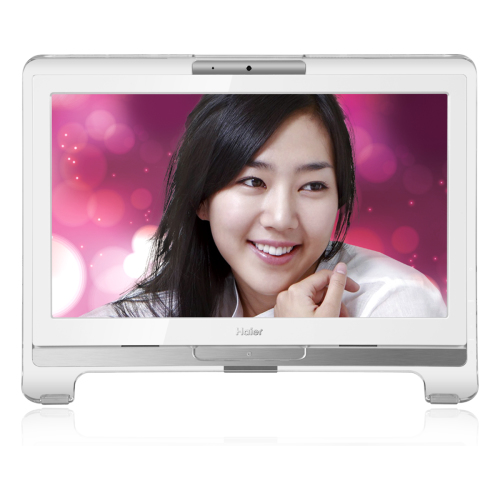

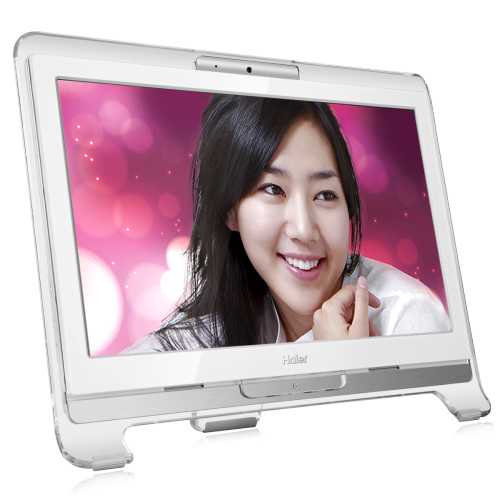

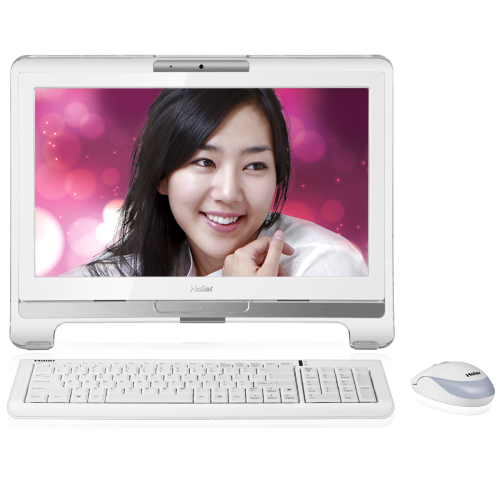

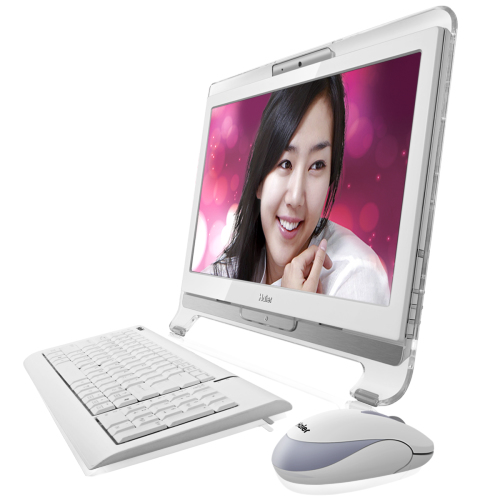

Haier Q20-D010 All-in-One PC/workstation Intel Atom® D2500

47 cm (18.5") 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Basic White

Model Q20-D010

112 specifications

Overview

Brand: Haier
Category: All-in-One PCs/Workstations
Model: Q20-D010
Part number: Q20-D010
Also known as: Haier Q20-D010 All-in-One PC/workstation Intel Atom® D2500 47 cm (18.5") 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Basic White

112 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2500
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
System bus rate	2.5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	10 W
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	4
Processor code	SR0W0
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Atom D2500 Series
Stepping	B3
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	320 GB
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	400 MHz

Specification	Value
Built-in camera	Yes
Total megapixels	1.3 MP

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Total number of SATA connectors	2

Specification	Value
Product colour	White

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® NM10 Express

Specification	Value
Operating system installed	Windows 7 Home Basic

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel ME Firmware Version	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	59682
Processor package size	22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Specification	Value
Mouse included	Yes
Keyboard included	Yes
