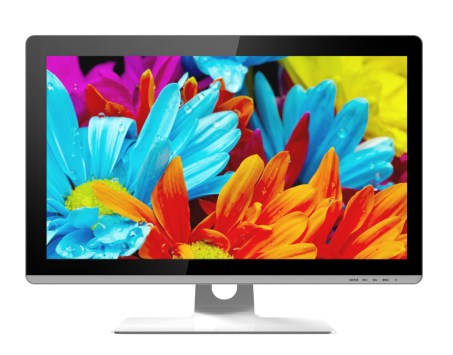

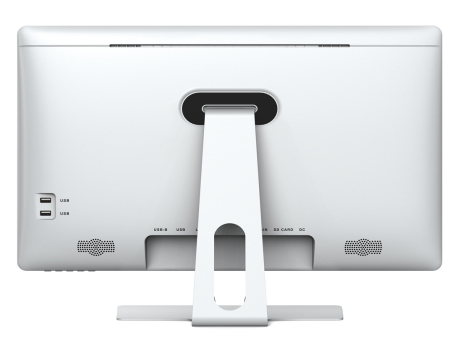

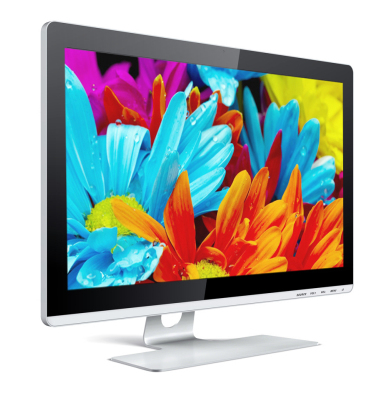

A3-B230Q All-in-One PC/workstation Intel Atom® Z3735F
59.9 cm (23.6") 1920 x 1080 pixels All-in-One workstation 2 GB DDR3-SDRAM 32 GB FreeDOS White
Model A3-B230Q
73 specifications
- Display59.9 cm (23.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel Atom®
- Memory2 GB
- Storage32 GB
- GraphicsNot available
Overview
- Display
- 59.9 cm (23.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 32 GB
- Graphics
- Not available
- Brand
- Haier
- Category
- All-in-One PCs/Workstations
- Model
- A3-B230Q
- Part number
- A3-B230Q
- Also known as
- Haier A3-B230Q All-in-One PC/workstation Intel Atom® Z3735F 59.9 cm (23.6") 1920 x 1080 pixels All-in-One workstation 2 GB DDR3-SDRAM 32 GB FreeDOS White
Specifications
73 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 59.9 cm (23.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | Z3735F |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 1.83 GHz |
| Processor frequency | 1.33 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 592 |
| Processor code | SR1UB |
| Processor codename | Bay Trail |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Atom Z3700 Series |
| Scenario Design Power (SDP) | 2.2 W |
| Stepping | C0 |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 2 GB |
| Memory types supported by processor | DDR3L-RS-SDRAM |
| Memory clock speeds supported by processor | 1333 MHz |
| Memory bandwidth supported by processor (max) | 10.6 GB/s |
| Memory channels supported by processor | Single |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 311 MHz |
| On-board graphics card burst frequency | 646 MHz |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One workstation |
Software
| Specification | Value |
|---|---|
| Operating system installed | FreeDOS |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 22 nm |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 80274 |
| Processor package size | 17 x 17 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Warranty card | Yes |
| Manual | Yes |
