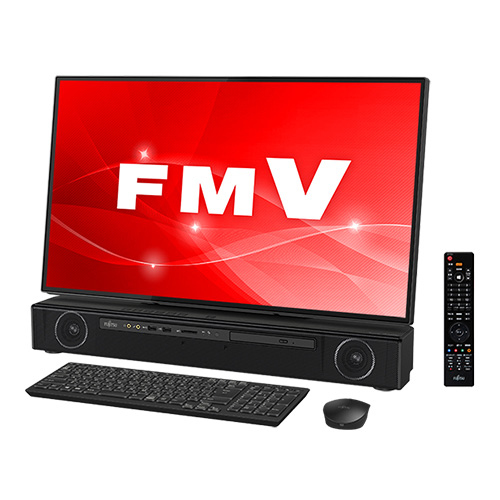

Fujitsu ESPRIMO FH90/C3 Intel® Core™ i7 i7-8750H
Fujitsu

ESPRIMO FH90/C3 Intel® Core™ i7 i7-8750H

68.6 cm (27") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 3 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac) Blac

Model FH90/C3Part no. FMVF90C3B

138 specifications
  • Display68.6 cm (27")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i7
  • Memory8 GB
  • Storage3 TB
  • GraphicsNot available
See all specifications

Overview

Display
68.6 cm (27")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i7
Memory
8 GB
Storage
3 TB
Graphics
Not available
Brand
Fujitsu
Model
FH90/C3
Part number
FMVF90C3B
Also known as
Fujitsu ESPRIMO FH90/C3 Intel® Core™ i7 i7-8750H 68.6 cm (27") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 3 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac) Blac

Specifications

138 specifications in 18 groups

Display

Display diagonal68.6 cm (27")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
LED backlightYes
Panel typeIPS
Pixel pitch0.311 x 0.311 mm
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation8th gen Intel® Core™ i7
Processor modeli7-8750H
Processor cores6
Processor threads12
Processor boost frequency4.1 GHz
Processor frequency2.2 GHz
Processor cache9 MB
Processor cache typeSmart Cache
Processor socketBGA 1440
System bus rate8 GT/s
Thermal Design Power (TDP)45 W
Configurable TDP-down frequency1.7 GHz
Configurable TDP-down35 W
Bus typeDMI
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
Processor codeSR3YY
Processor codenameCoffee Lake
Processor lithography14 nm
Processor operating modes64-bit
SteppingU0
Tjunction100 °C
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor2133,2666 MHz
Memory bandwidth supported by processor (max)41.8 GB/s

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory32 GB
Memory slots2
Memory layout (slots x size)2 x 4 GB

Storage

Total storage capacity3 TB
Storage mediaHDD
Number of HDDs installed1
HDD capacity3 TB
Intel® Optane™ Memory module capacity16 GB
Intel® Optane™ Memory module installedYes
Optical drive typeBlu-Ray DVD Combo
Card reader integratedYes
Compatible memory cardsSD

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1100 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x3E9B
On-board graphics card OpenGL version4.5

Audio

Built-in speaker(s)Yes

Camera

Built-in cameraYes

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.2

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
HDMI input ports quantity2
HDMI output ports quantity1
HDMI ports quantity3
Headphone outputs1
Microphone inYes
DC-in jackYes

Design

Product colourBlack

Performance

Product typeAll-in-One PC

Software

Operating system installedWindows 10 Home
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID134906
Processor package size42 x 28 mm
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes

Pen

Pen includedNo

Weight & dimensions

Width (with stand)616 mm
Depth (with stand)170 mm
Height (with stand)443 mm
Weight (with stand)13.3 kg

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

Packaging content

Mouse includedYes
Keyboard includedYes
Warranty cardYes
AC adapter includedYes
Remote control includedYes

Other features

3DNo
TV tuner integratedYes
