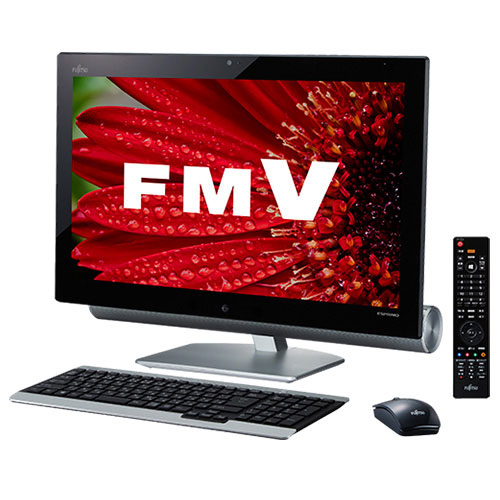

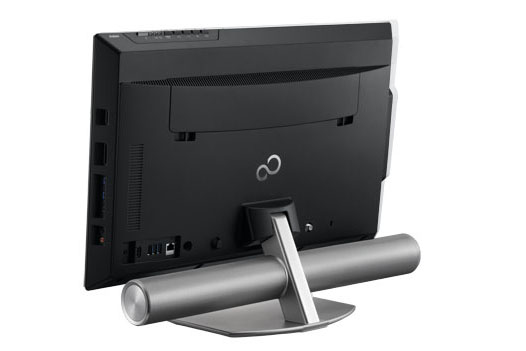

Fujitsu ESPRIMO FH78/RD Intel® Core™ i7 i7-4710MQ

58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR3L-SDRAM 3 TB HDD Windows 8.1 Aluminium, Bl

Model FH78/RDPart no. FMVF78RDB

183 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage3 TB
GraphicsNot available

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 3 TB
Graphics: Not available

Brand: Fujitsu
Category: All-in-One PCs/Workstations
Model: FH78/RD
Part number: FMVF78RDB
Also known as: Fujitsu ESPRIMO FH78/RD Intel® Core™ i7 i7-4710MQ 58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR3L-SDRAM 3 TB HDD Windows 8.1 Aluminium, Bl

Specifications

183 specifications in 18 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Native aspect ratio	16:9
Panel type	IPS
Display number of colours	16.78 million colours
Pixel pitch	0.265 x 0.265 mm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4710MQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.5 GHz
Processor frequency	2.5 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	PGA946
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	47 W
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR1PQ
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Mobile series
Stepping	C0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory layout (slots x size)	2 x 4 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	3 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
On-board graphics card memory	1.792 GB
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card ID	0x416

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	30 W
Built-in microphone	Yes
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	0.9 MP

Optical drive

Specification	Value
Disc types supported	BD, BD-R, BD-R DL, BD-R XL, BD-RE, BD-RE DL, BD-RE XL, BD-ROM, CD, CD-R, CD-ROM, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM, DVD-ROM, DVD-RW
CD-R read speed	24x
CD-R write speed	24x
CD-RW read speed	24x
CD-RW write speed	10x
DVD-R read speed	8x
DVD-R write speed	8x
DVD-R Double Layer read speed	8x
DVD-R Double Layer write speed	6x
DVD-RW read speed	8x
DVD-RW write speed	6x
DVD+R read speed	8x
DVD+R write speed	8x
DVD+R Double Layer read speed	8x
DVD+R Double Layer write speed	6x
DVD+RW read speed	8x
DVD+RW write speed	8x
DVD-RAM read speed	5x
DVD-RAM write speed	5x
BD-R read speed	6x
BD-R write speed	6x
BD-R Dual Layer read speed	6x
BD-R Dual Layer write speed	6x
BD-R XL read speed	4x
BD-R XL write speed	4x
BD-RE read speed	5x
BD-RE write speed	2x
BD-RE Dual Layer read speed	5x
BD-RE Dual Layer write speed	2x
BD-RE XL read speed	2x
BD-RE XL write speed	2x

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Combo headphone/mic port	Yes
DC-in jack	Yes
USB Sleep-and-Charge	Yes

Design

Specification	Value
Product colour	Aluminium, Black

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® HM86

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	78931
Processor package size	37.5 x 32 x 1.6 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Weight & dimensions

Specification	Value
Width (with stand)	571 mm
Depth (with stand)	201 mm
Height (with stand)	431 mm
Weight (with stand)	10.8 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Warranty card	Yes
AC adapter included	Yes
Remote control included	Yes

Other features

Specification	Value
Intel® Virtualization Technology (Intel® VT)	VT-x
Storage drive interface	Serial ATA
