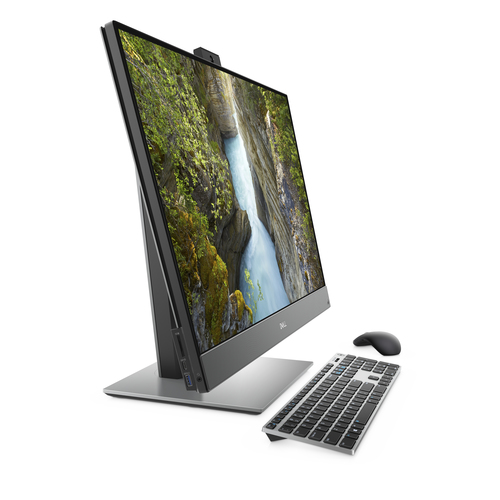

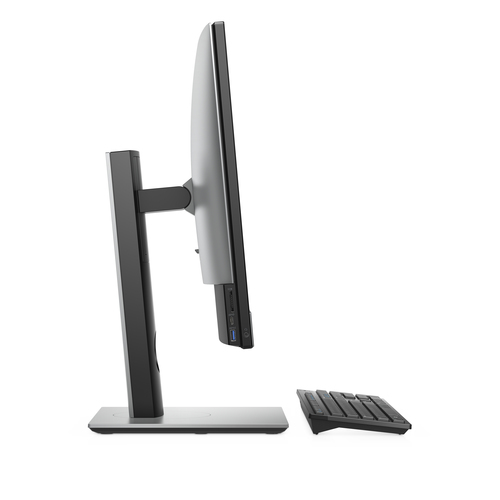

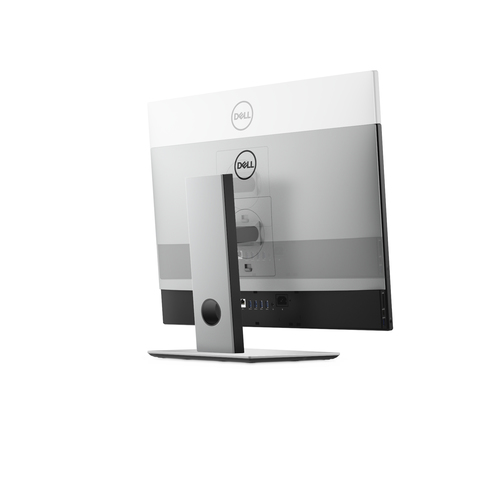

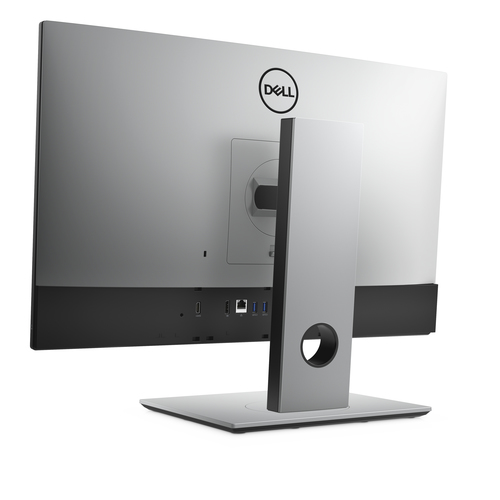

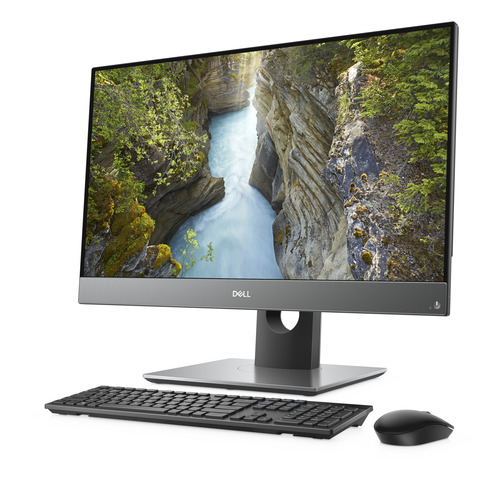

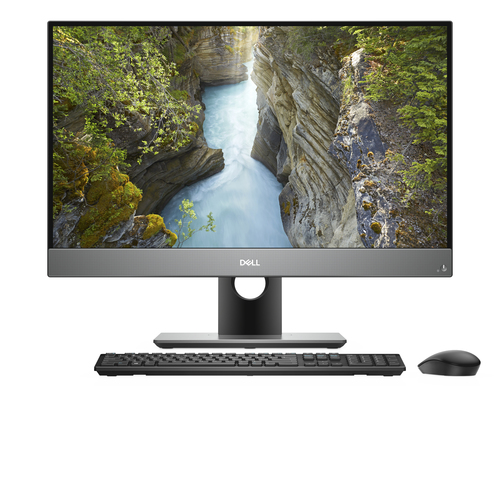

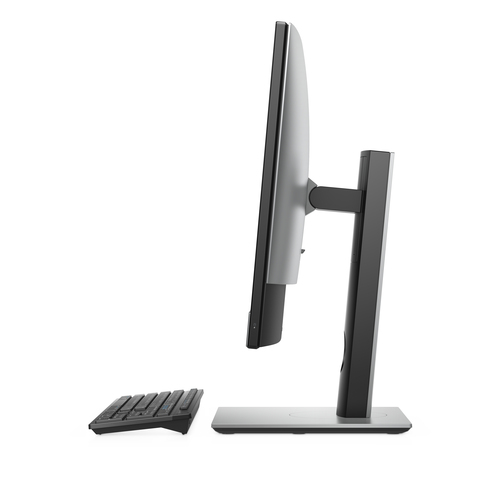

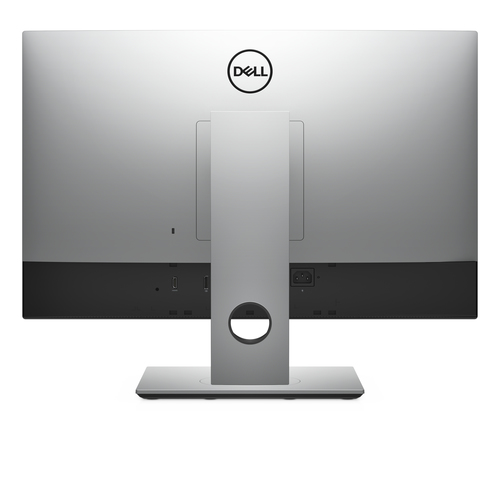

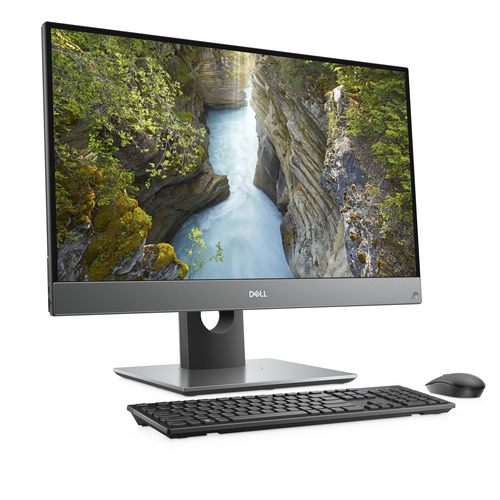

Dell OptiPlex 7770 Intel® Core™ i7 i7-9700
Dell

OptiPlex 7770 Intel® Core™ i7 i7-9700

68.6 cm (27") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 5 (802.11a

Model 7770Part no. 705TVEAN 5397184297445

161 specifications
  • Display68.6 cm (27")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i7
  • Memory8 GB
  • Storage256 GB
  • GraphicsNot available
See all specifications

Overview

Display
68.6 cm (27")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i7
Memory
8 GB
Storage
256 GB
Graphics
Not available
Brand
Dell
Model
7770
Part numbers
705TV, JV7R7, CAD0010777AF08ON2OJP, CAD0020777AF08ON2OJP, 7KX5R, AO7770AIO +30 more
EAN / UPC
5397184297445, 5397184325391, 5397184325407, 5397184297469 +4 more
Also known as
DELL OptiPlex 7770 Intel® Core™ i7 i7-9700 68.6 cm (27") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 5 (802.11a

Specifications

161 specifications in 18 groups

Display

Display diagonal68.6 cm (27")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
LED backlightYes
Native aspect ratio16:9
Display brightness200 cd/m²
Panel typeIPS
Display number of colours16.78 million colours
Pixel pitch0.3114 x 0.3114 mm
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation9th gen Intel® Core™ i7
Processor modeli7-9700
Processor cores8
Processor threads8
Processor boost frequency4.7 GHz
Processor frequency3 GHz
Processor cache12 MB
Processor cache typeSmart Cache
Processor socketLGA 1151 (Socket H4)
System bus rate8 GT/s
Thermal Design Power (TDP)65 W
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
Processor codenameCoffee Lake
Processor lithography14 nm
Processor operating modes64-bit
Tjunction100 °C
Maximum internal memory supported by processor128 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2666 MHz
Memory bandwidth supported by processor (max)41.6 GB/s

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory32 GB
Memory slots2
Memory slots typeSO-DIMM
Memory clock speed2666 MHz
Memory layout (slots x size)1 x 8 GB
Memory form factorDIMM/SO-DIMM

Storage

Total storage capacity256 GB
Storage mediaSSD
Number of storage drives installed1
Total SSDs capacity256 GB
Number of SSDs installed1
SSD capacity256 GB
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1200 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x3E98
On-board graphics card OpenGL version4.5

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power6 W
Built-in microphoneYes
Audio chipRealtek ALC3289
Audio systemWaves MaxxAudio Pro

Camera

Built-in cameraYes
Total megapixels2 MP
Camera HD typeFull HD
Camera signal format1080p
Privacy cameraYes
Privacy typePop-up

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
WLAN controller modelIntel Dual Band Wireless-AC 9560
Antenna type2x2
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Thunderbolt 3 ports quantity0
Thunderbolt ports quantity0
HDMI output ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs0
Microphone inNo
Audio outputYes
Combo headphone/mic portYes
PowerShareYes
Number of USB ports with PowerShare support1

Design

Product colourBlack, Silver
Cable lock slotYes
On/off buttonYes

Performance

Product typeAll-in-One PC
Placement supportedHorizontal

Software

Operating system installedWindows 10 Pro
Operating system architecture64-bit
Operating system languageMultilingual
Trial softwareMicrosoft Office

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)Yes
Intel TSX-NIYes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID191792
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015C

Power

AC adapter frequency47/63 Hz
AC adapter input voltage100 - 240 V

Pen

Pen includedNo

Weight & dimensions

Width (with stand)614 mm
Depth (with stand)254.8 mm
Weight (with stand)11.8 kg
Width (without stand)614 mm
Depth (without stand)57.7 mm
Height (without stand)389 mm
Weight (without stand)8.63 kg
Package width918 mm
Package depth216 mm
Package height558 mm
Package weight15.5 kg

Packaging content

Mouse included on selected markets onlyYes
Keyboard included on selected markets onlyYes
Power cord includedYes
ManualYes

Other features

3DNo
Autonomy modeNo
Detachable displayNo
Stand typeHeight adjustable stand
