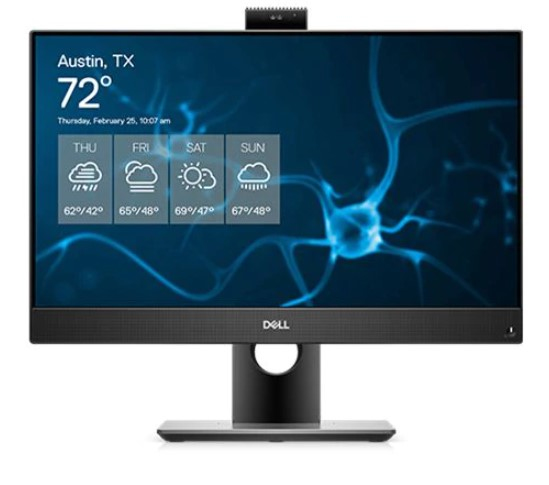

Dell OptiPlex 7480 Intel® Core™ i7 i7-10700
Dell

OptiPlex 7480 Intel® Core™ i7 i7-10700

60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 32 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Black

Model 7480Part no. KP5MPEAN 5397184449301

133 specifications
  • Display60.5 cm (23.8")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i7
  • Memory32 GB
  • Storage256 GB
  • GraphicsNot available
See all specifications

Overview

Display
60.5 cm (23.8")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i7
Memory
32 GB
Storage
256 GB
Graphics
Not available
Brand
Dell
Model
7480
Part numbers
KP5MP, KJF24, N004O7480AIO, N003O7480AIO, N009O7480AIO, S005O7480AIOUS +34 more
EAN / UPC
5397184449301, 5397184449318, 5397184449356, 5397184449325 +9 more
Also known as
DELL OptiPlex 7480 Intel® Core™ i7 i7-10700 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 32 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Black

Specifications

133 specifications in 18 groups

Display

Display diagonal60.5 cm (23.8")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
Native aspect ratio16:9
Panel typeIPS
Pixel pitch0.3114 x 0.3114 mm

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation10th gen Intel® Core™ i7
Processor modeli7-10700
Processor cores8
Processor threads16
Processor boost frequency4.8 GHz
Processor frequency2.9 GHz
Processor cache16 MB
Processor cache typeSmart Cache
Processor socketLGA 1200 (Socket H5)
System bus rate8 GT/s
Thermal Design Power (TDP)65 W
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
Processor codenameComet Lake
Processor lithography14 nm
Processor operating modes64-bit
Tjunction100 °C
Maximum internal memory supported by processor128 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2933 MHz
Memory bandwidth supported by processor (max)45.8 GB/s

Memory

Internal memory32 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory64 GB
Memory slots2
Memory slots typeSO-DIMM
Memory clock speed2933 MHz

Storage

Total storage capacity256 GB
Storage mediaSSD
Number of storage drives installed1
Total SSDs capacity256 GB
Number of SSDs installed1
SSD capacity256 GB
NVMeYes
SSD interfaceNVMe, PCI Express
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board GPU manufacturerIntel
On-board graphics cardYes
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1200 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x9BC5
On-board graphics card OpenGL version4.5

Audio

Built-in speaker(s)Yes
RMS rated power10 W
Built-in microphoneYes

Camera

Built-in cameraYes

Network

Wi-FiYes
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Thunderbolt ports quantity0
HDMI ports quantity2
DisplayPorts quantity1
Audio outputYes
Combo headphone/mic portYes
DC-in jackYes
PowerShareYes
Number of USB ports with PowerShare support1

Design

Product colourBlack
Cable lock slotYes
Cable lock slot typeKensington
On/off buttonYes

Performance

Product typeAll-in-One PC
Trusted Platform Module (TPM)Yes

Software

Operating system installedWindows 10 Pro
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)Yes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID199316
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015C

Power

AC adapter power160 W

Weight & dimensions

Width (with stand)540.2 mm
Width (without stand)540.2 mm
Depth (without stand)52.8 mm
Height (without stand)344 mm

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)50 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 10668 m

Sustainability

Sustainability certificatesEPEAT Silver, ENERGY STAR

Packaging content

Mouse includedYes
Keyboard includedYes
