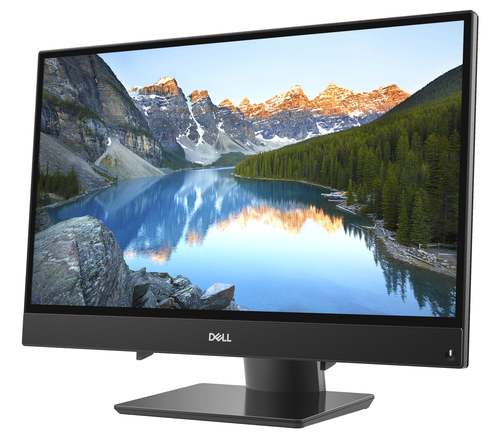

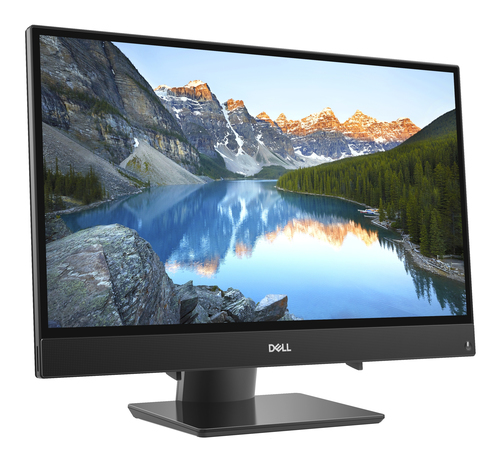

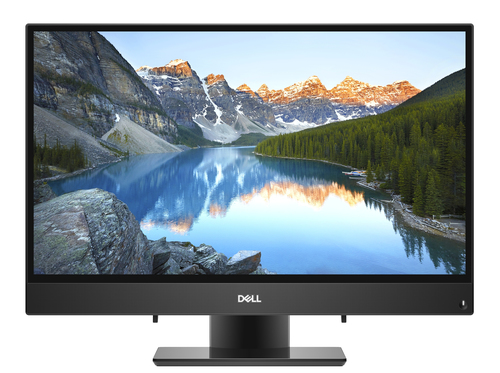

Inspiron 3477 Intel® Core™ i5 i5-7200U

60.5 cm (23.8") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR4-SDRAM 1 TB HDD Windows 10 Home Black

Model 3477Part no. 3477-6301EAN 5397184171882

176 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1 TB
Graphics: Not available

Brand: Dell
Category: All-in-One PCs/Workstations
Model: 3477
Part numbers: 3477-6301, N4261I3477102KR, N427I3477103KR, W26691421THW10, W26691427TH, IO3477_I7121TBW10S +34 more
EAN / UPC: 5397184171882, 884116318583, 884116319078, 884116336211 +5 more
Also known as: DELL Inspiron 3477 Intel® Core™ i5 i5-7200U 60.5 cm (23.8") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR4-SDRAM 1 TB HDD Windows 10 Home Black

Specifications

176 specifications in 21 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Panel type	IPS
Pixel pitch	0.2475 x 0.2475 mm
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7200U
Processor cores	2
Processor threads	4
Processor boost frequency	3.1 GHz
Processor frequency	2.5 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
System bus rate	4 GT/s
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.7 GHz
Configurable TDP-up	25 W
Configurable TDP-down frequency	0.8 GHz
Configurable TDP-down	7.5 W
Bus type	OPI
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
Processor code	SR2ZU
Processor codename	Kaby Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Stepping	H0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 620
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5916
On-board graphics card OpenGL version	4.4

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in microphone	Yes
Audio chip	Realtek ALC3246

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	0.92 MP
Camera HD type	HD
Camera resolution	1280 x 720 pixels
Camera signal format	720p
Privacy camera	Yes
Privacy type	Pop-up

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes
DC-in jack	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Design

Specification	Value
Product colour	Black
On/off button	Yes

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	95443
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19.5 V

Pen

Specification	Value
Pen included	No

Weight & dimensions

Specification	Value
Width (with stand)	548.8 mm
Width (without stand)	548.8 mm
Depth (without stand)	41.5 mm
Height (without stand)	358 mm
Weight (without stand)	5.85 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
