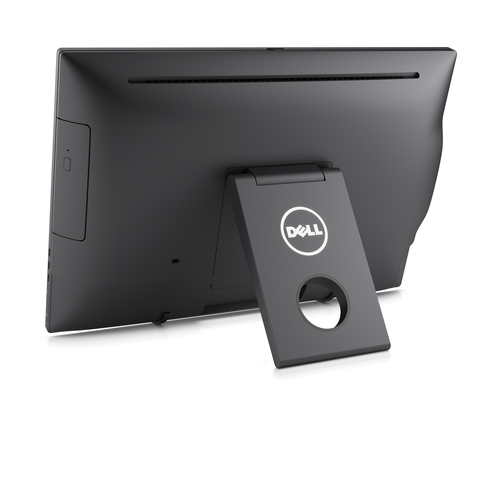

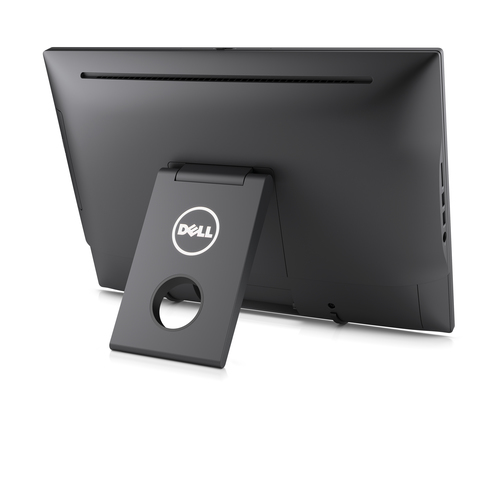

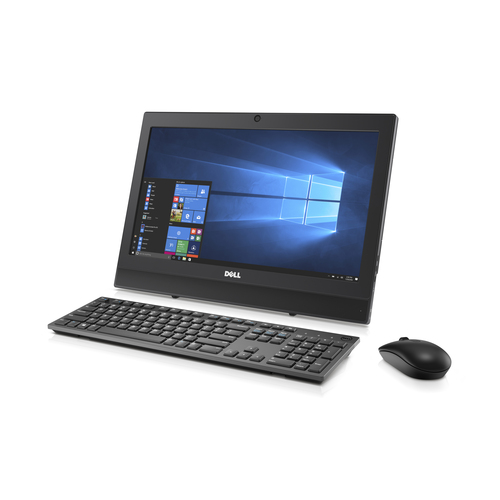

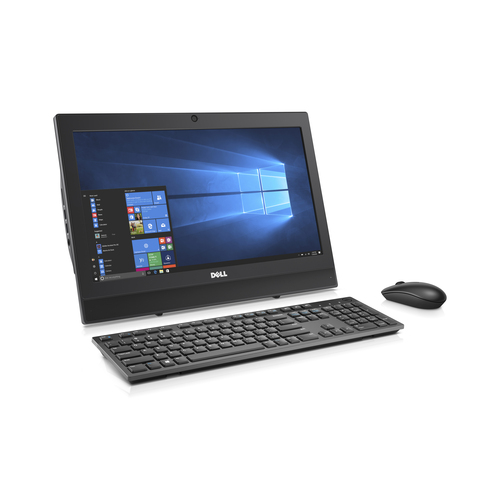

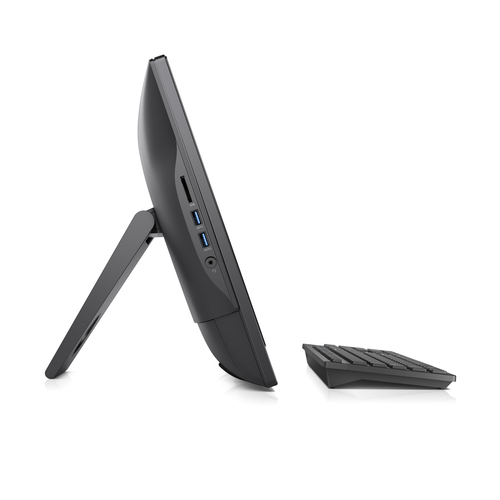

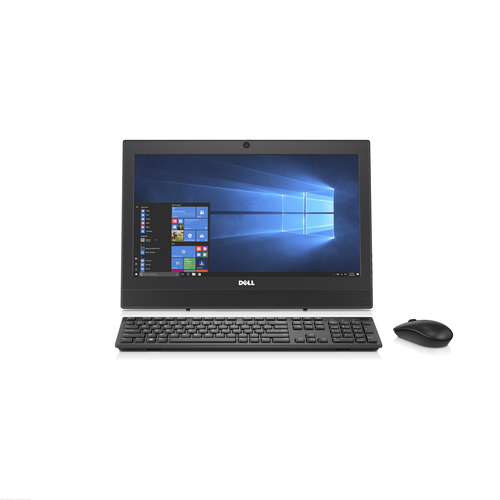

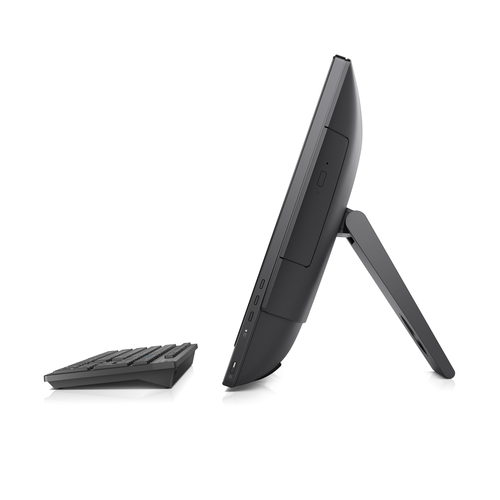

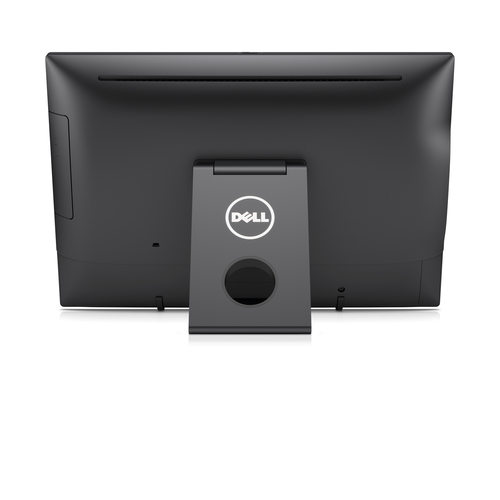

Dell 3050 AIO + Microsoft Office Home & Business 2016

Model 3050 AIO + Microsoft Office Home & Business 2016Part no. 1W20J+630-ABDD

168 specifications

Display49.5 cm (19.5")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 49.5 cm (19.5")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: Dell
Category: All-in-One PCs/Workstations
Model: 3050 AIO + Microsoft Office Home & Business 2016
Part number: 1W20J+630-ABDD
Also known as: DELL OptiPlex 3050 AIO + Microsoft Office Home & Business 2016 Intel® Core™ i5 i5-7500T 49.5 cm (19.5") 1600 x 900 pixels All-in-One PC 4 GB DDR4-SDRAM 500 GB H

Specifications

168 specifications in 19 groups

Display

Specification	Value
Display diagonal	49.5 cm (19.5")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Pixel pitch	0.27 x 0.27 mm
Screen shape	Flat
Tilt angle range	-5 - 30°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7500T
Processor cores	4
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	2.7 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	LGA 1151 (Socket H4)
System bus rate	8 GT/s
Thermal Design Power (TDP)	35 W
Configurable TDP-down frequency	1.7 GHz
Bus type	DMI3
Maximum number of PCI Express lanes	16
Number of QPI links	0
PCI Express configurations	2x8, 1x8+2x4
PCI Express slots version	3.0
Processor codename	Kaby Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Tjunction	80 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2400 MHz
Memory layout (slots x size)	1 x 4 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	7200 RPM
HDD interface	SATA III
Optical drive type	DVD-ROM
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5912
On-board graphics card OpenGL version	4.4

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W
Speakers manufacturer	Waves
Built-in microphone	Yes
Audio chip	Realtek ALC3661-CG-A3
Audio system	Waves MaxxVoice Pro

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP
Camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
Optical drive interface	SATA

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	1
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes
DC-in jack	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One PC
Market positioning	Business
Motherboard chipset	Intel® B250
Placement supported	Vertical

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Multilingual
Trial software	Microsoft Office
Bundled software	Microsoft Office Home & Business 2016

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	97121
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A

Power

Specification	Value
AC adapter power	130 W
AC adapter frequency	47/63 Hz
AC adapter input voltage	90 - 264 V
AC adapter output voltage	19.5 V

Weight & dimensions

Specification	Value
Width (without stand)	482.5 mm
Depth (without stand)	58.9 mm
Height (without stand)	328.7 mm
Weight (without stand)	3.6 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%
Operating altitude	0 - 5000 m

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
AC adapter included	Yes
Power cord included	Yes
Manual	Yes

Other features

Specification	Value
Autonomy mode	No
Dell E-Value Code	N010O3050AIOBTP
Detachable display	Yes
