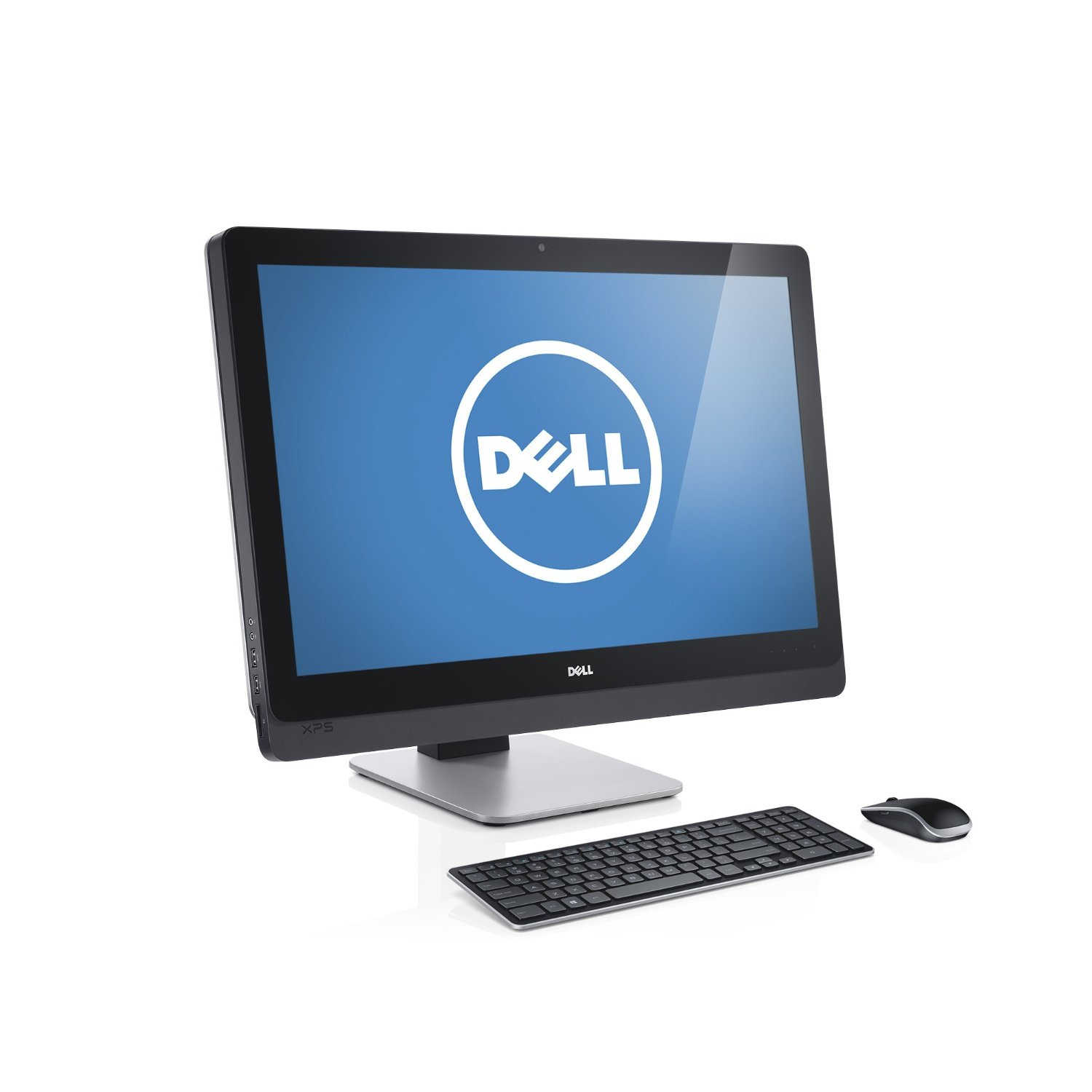

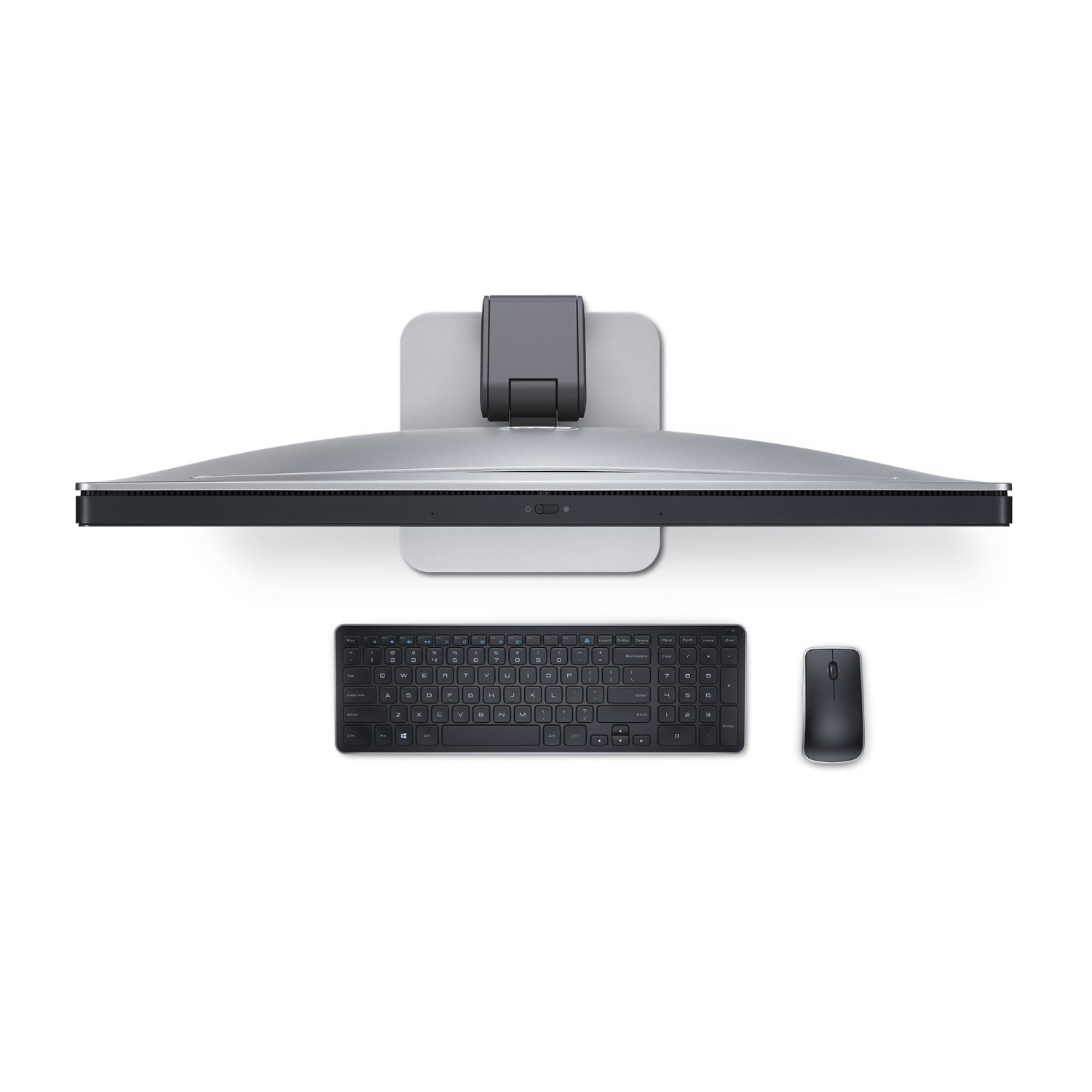

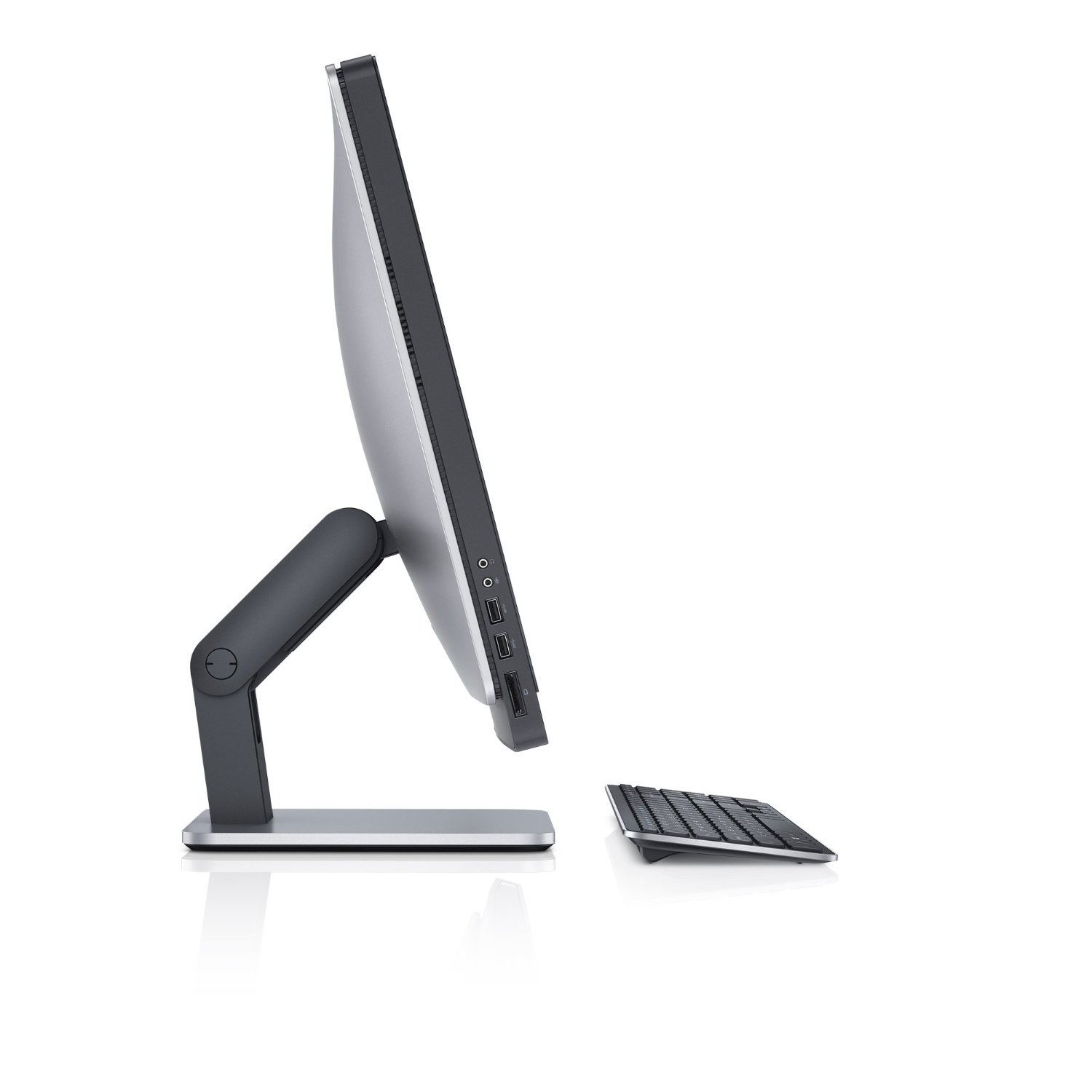

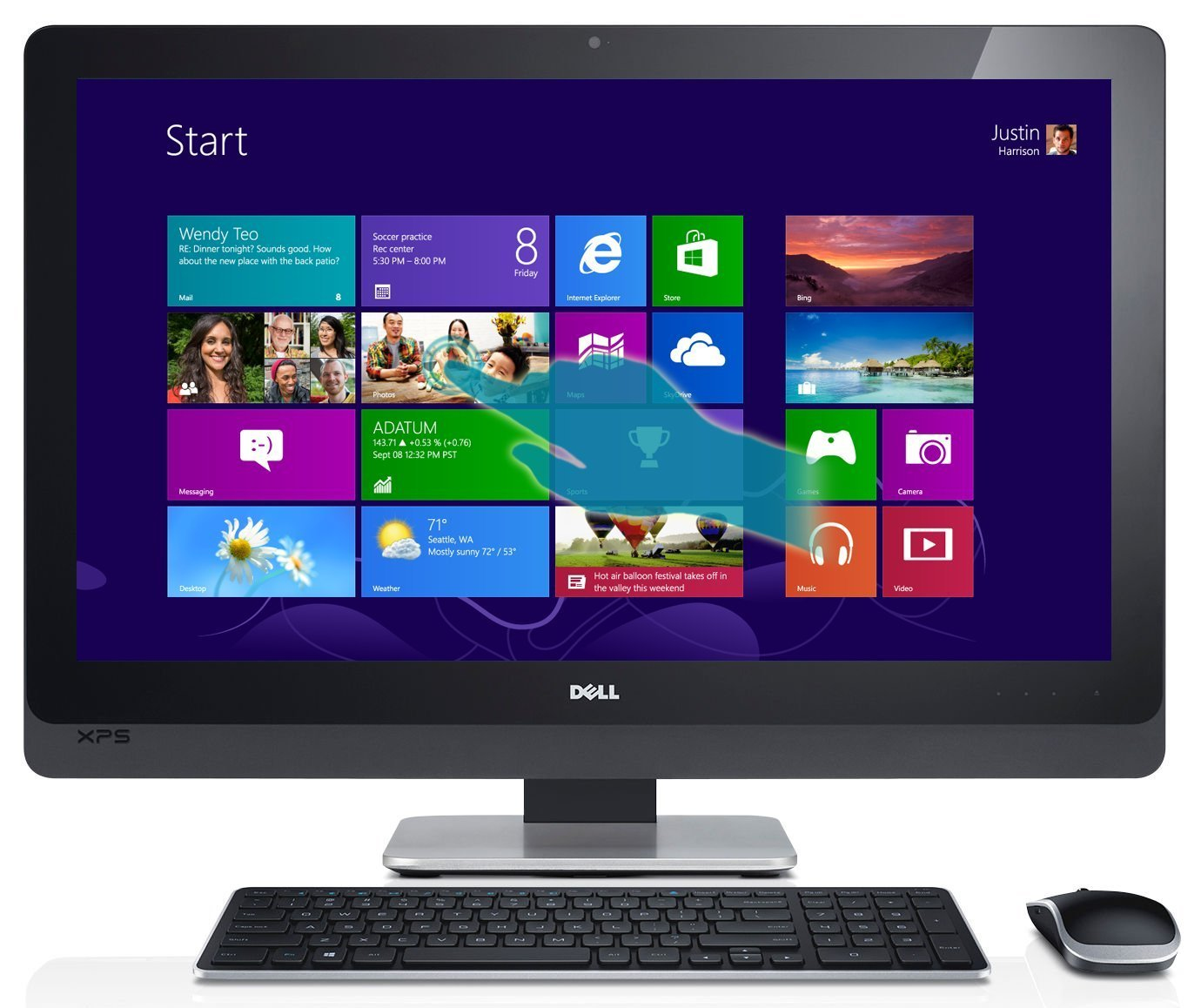

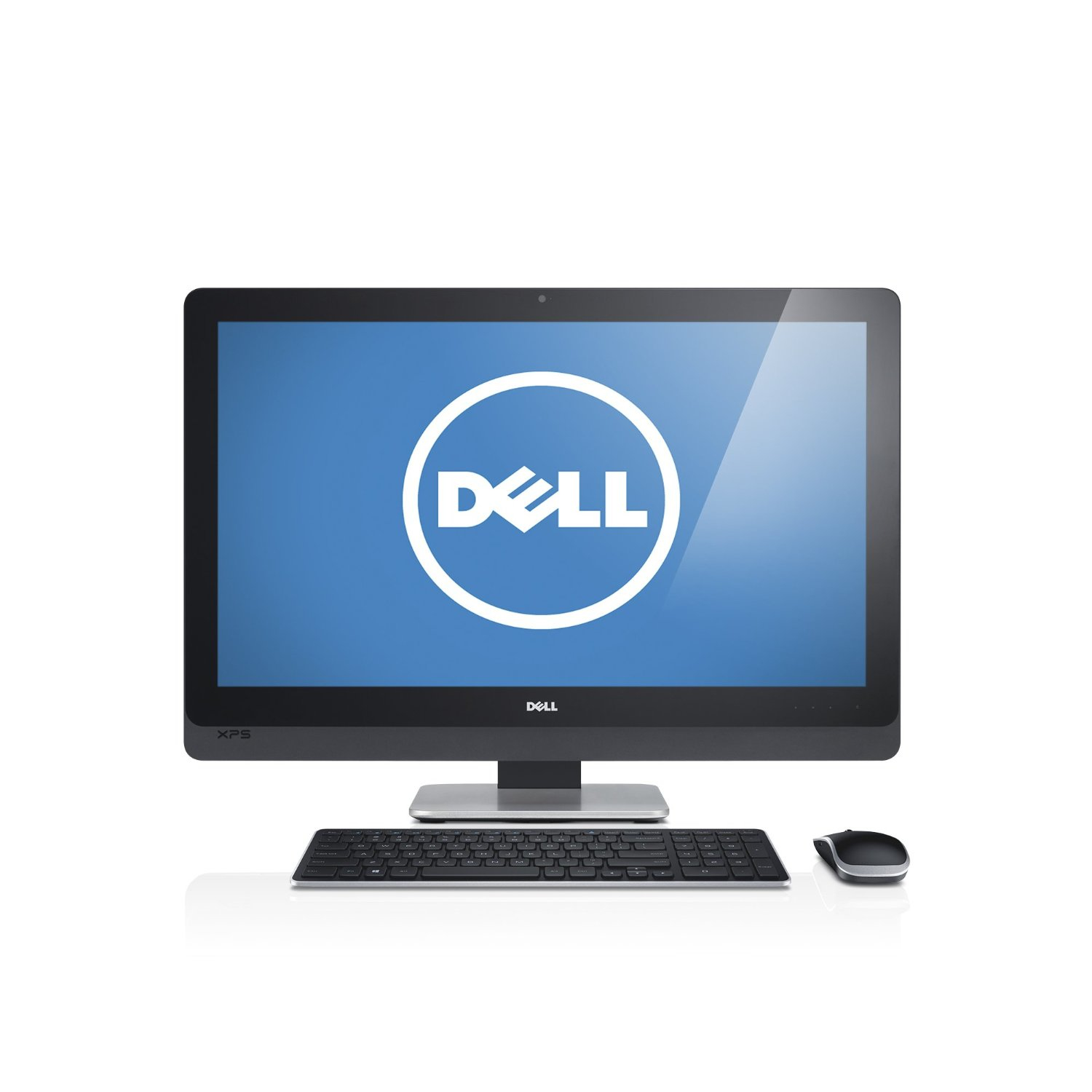

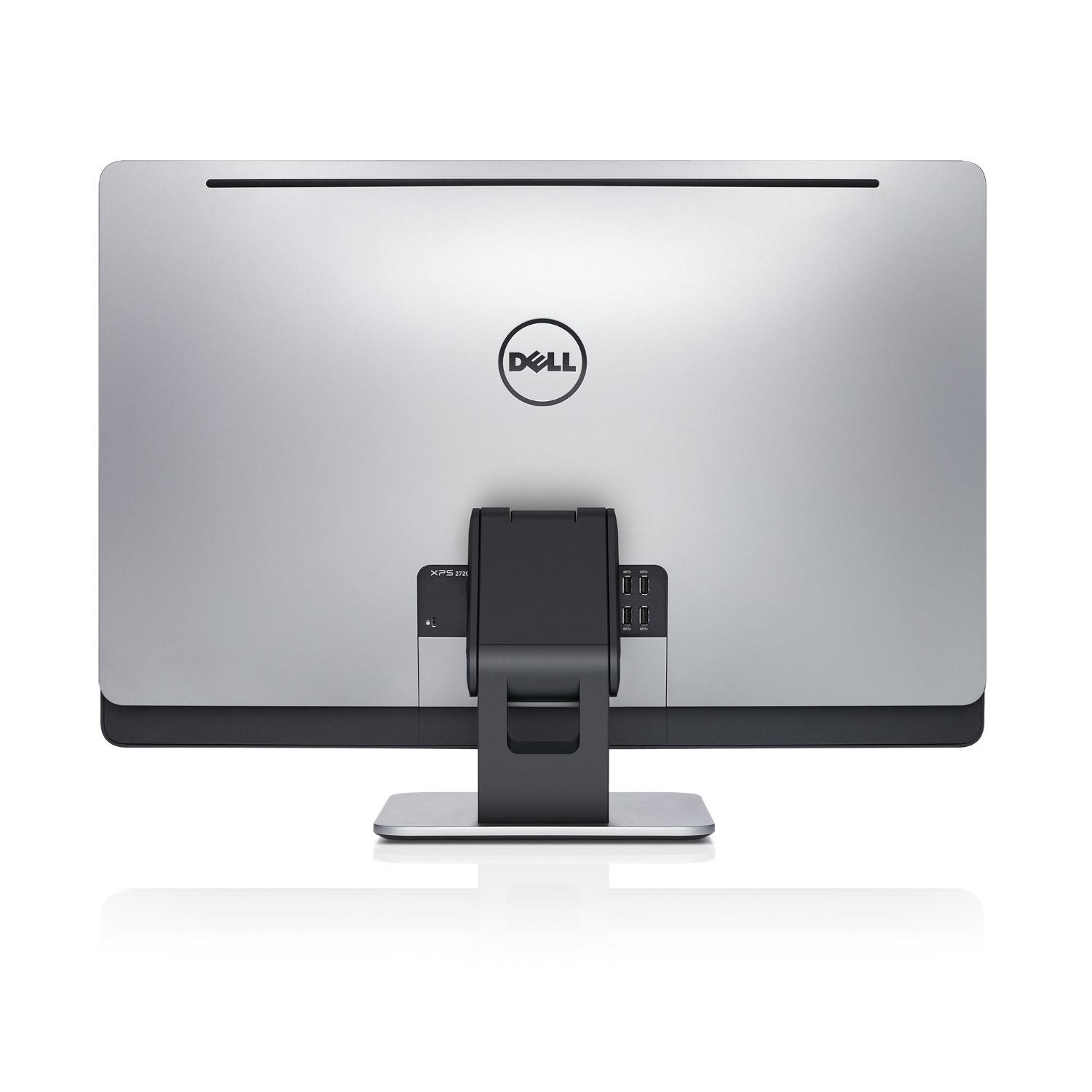

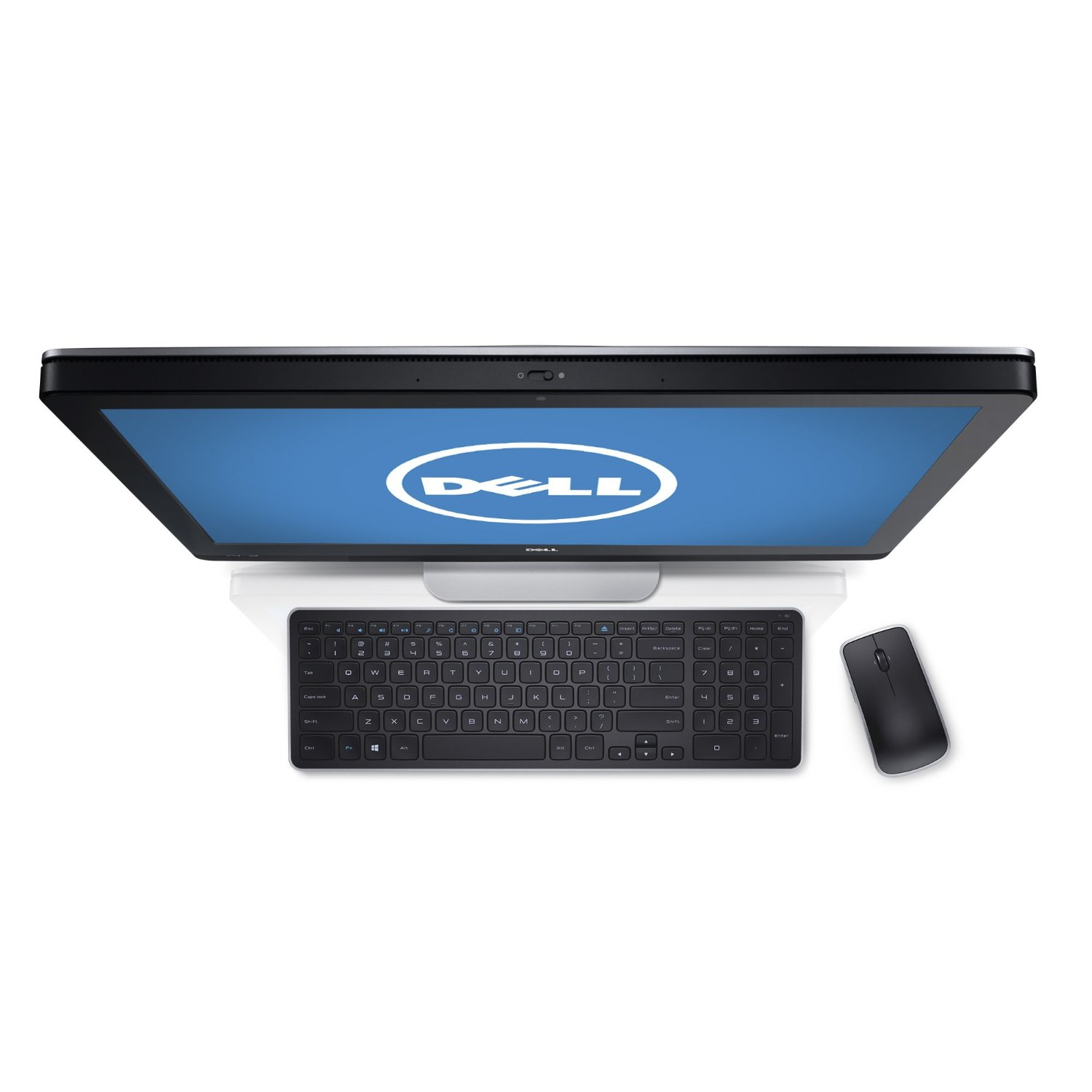

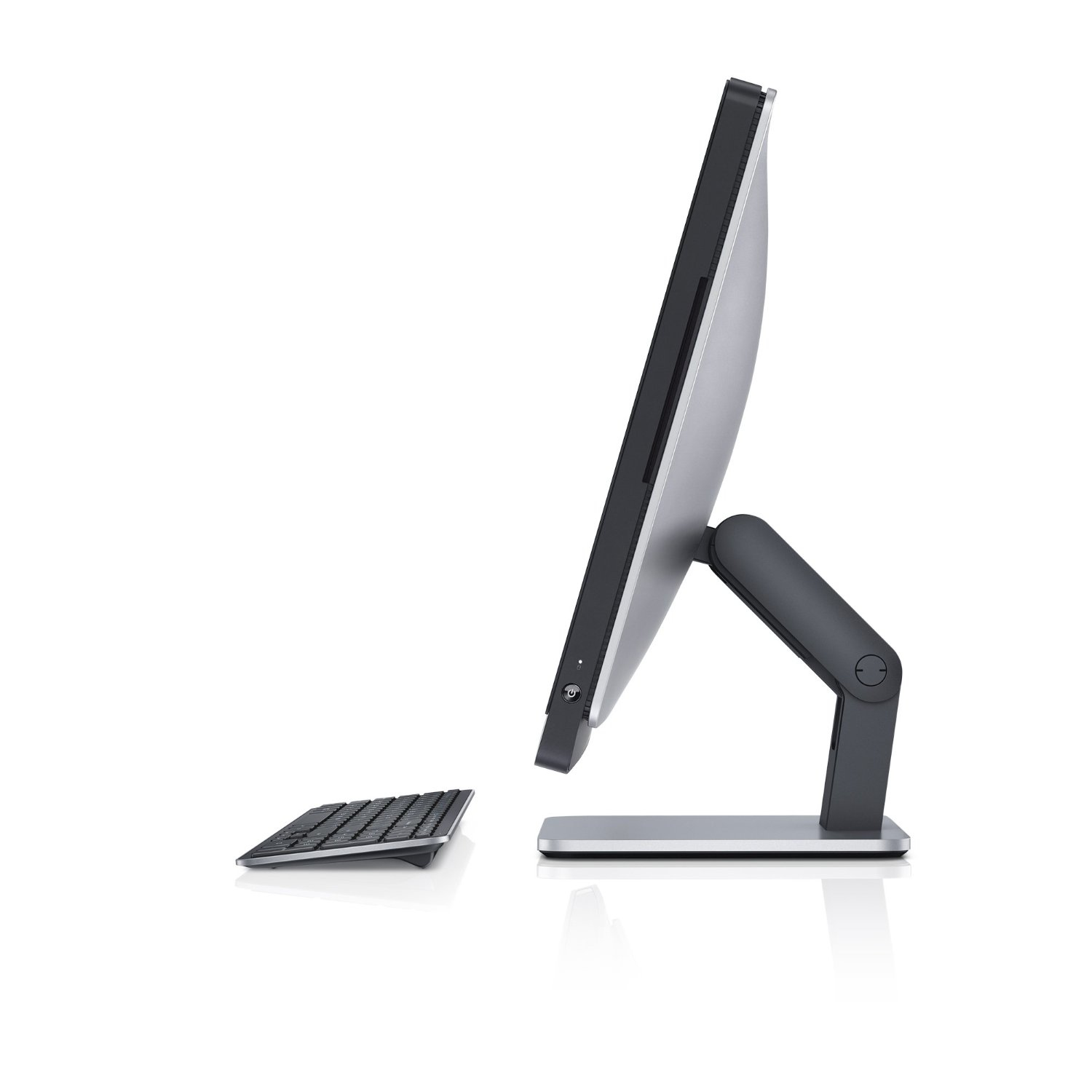

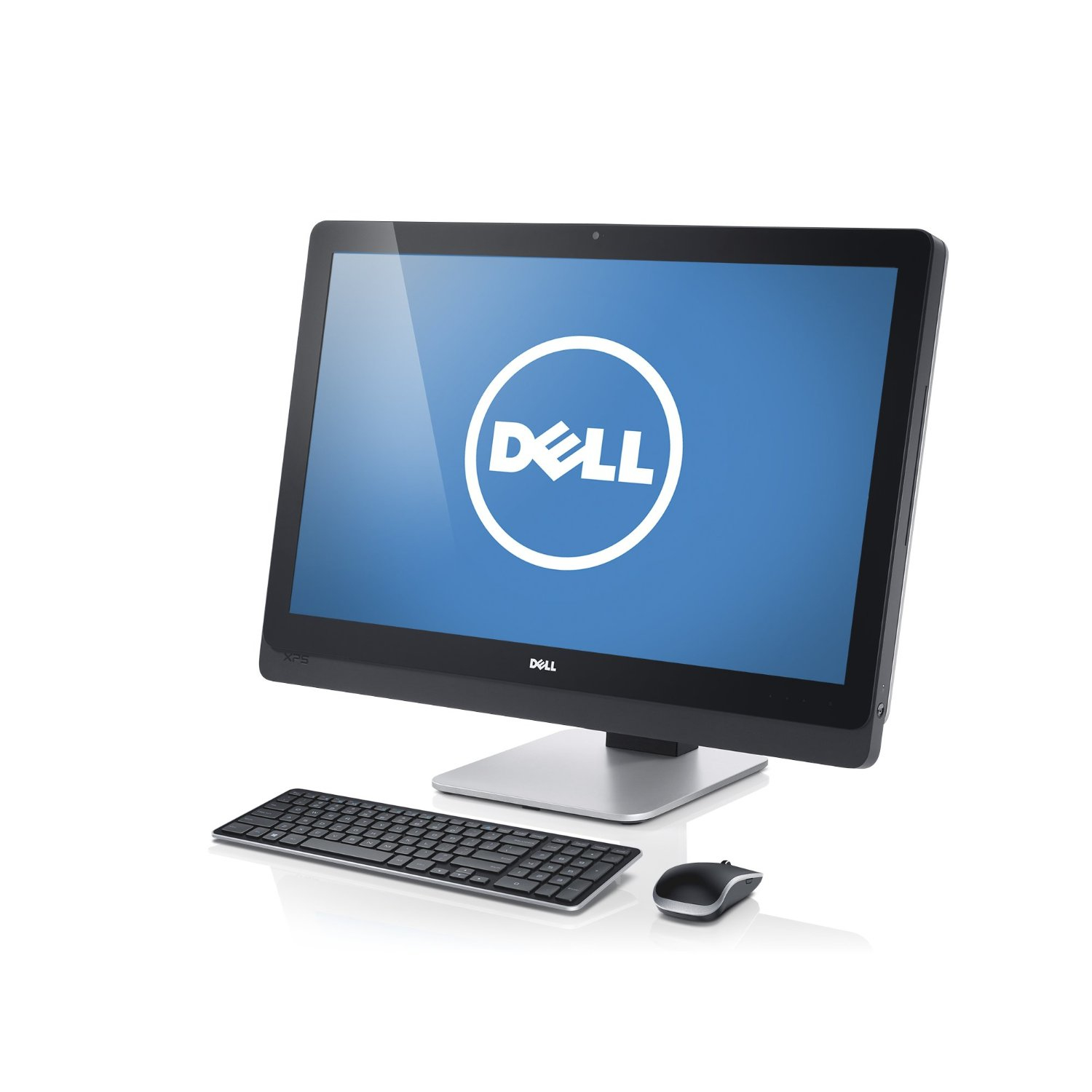

XPS 27 Intel® Core™ i7 i7-4770S

68.6 cm (27") 2560 x 1440 pixels Touchscreen All-in-One PC 8 GB DDR3-SDRAM 2 TB HDD+SSD NVIDIA® GeForce® GT 750M Windows 8.

Model 27Part no. 2720-0320

153 specifications

Display68.6 cm (27")
Resolution2560 x 1440 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage2 TB
GraphicsNVIDIA® GeForce® GT 750M

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 2560 x 1440 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 2 TB
Graphics: NVIDIA® GeForce® GT 750M

Brand: Dell
Category: All-in-One PCs/Workstations
Model: 27
Part numbers: 2720-0320, W2108P01AU, SMX27W8P13977, 2720-77122-W8T-ALM, 2720-4815, FDDOLP1394HW10 +3 more
Also known as: DELL XPS 27 Intel® Core™ i7 i7-4770S 68.6 cm (27") 2560 x 1440 pixels Touchscreen All-in-One PC 8 GB DDR3-SDRAM 2 TB HDD+SSD NVIDIA® GeForce® GT 750M Windows 8.

Specifications

153 specifications in 18 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
Touchscreen	Yes
HD type	Quad HD
Full HD	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Panel type	IPS
Multi-touch	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4770S
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	LGA 1150 (Socket H3)
64-bit computing	Yes
Thermal Design Power (TDP)	65 W
Bus type	QPI
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of QPI links	1
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR14H
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Desktop series
Stepping	C0
Tcase	71.35 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Memory layout (slots x size)	2 x 4 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	HDD+SSD
Number of storage drives installed	2
HDD speed	7200 RPM
HDD interface	SATA III
SSD interface	mSATA
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MMC+, MS PRO, SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 750M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	Waves MaxxAudio 4

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP
Camera resolution	1920 x 1080 pixels

Optical drive

Specification	Value
Disc types supported	CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes

Design

Specification	Value
Product colour	Black, Silver

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H87

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit
Bundled software	McAfee Live Safe 1Y

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75124
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
