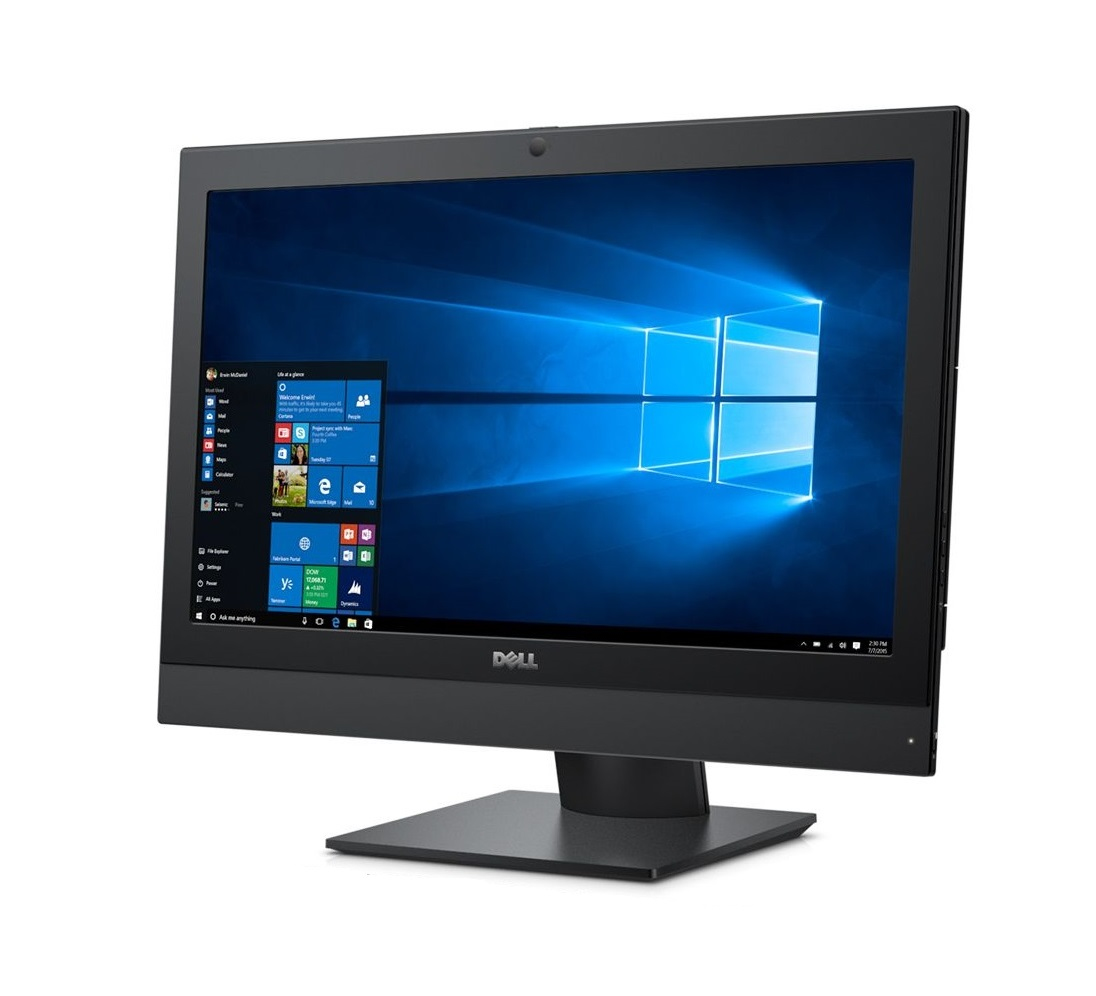

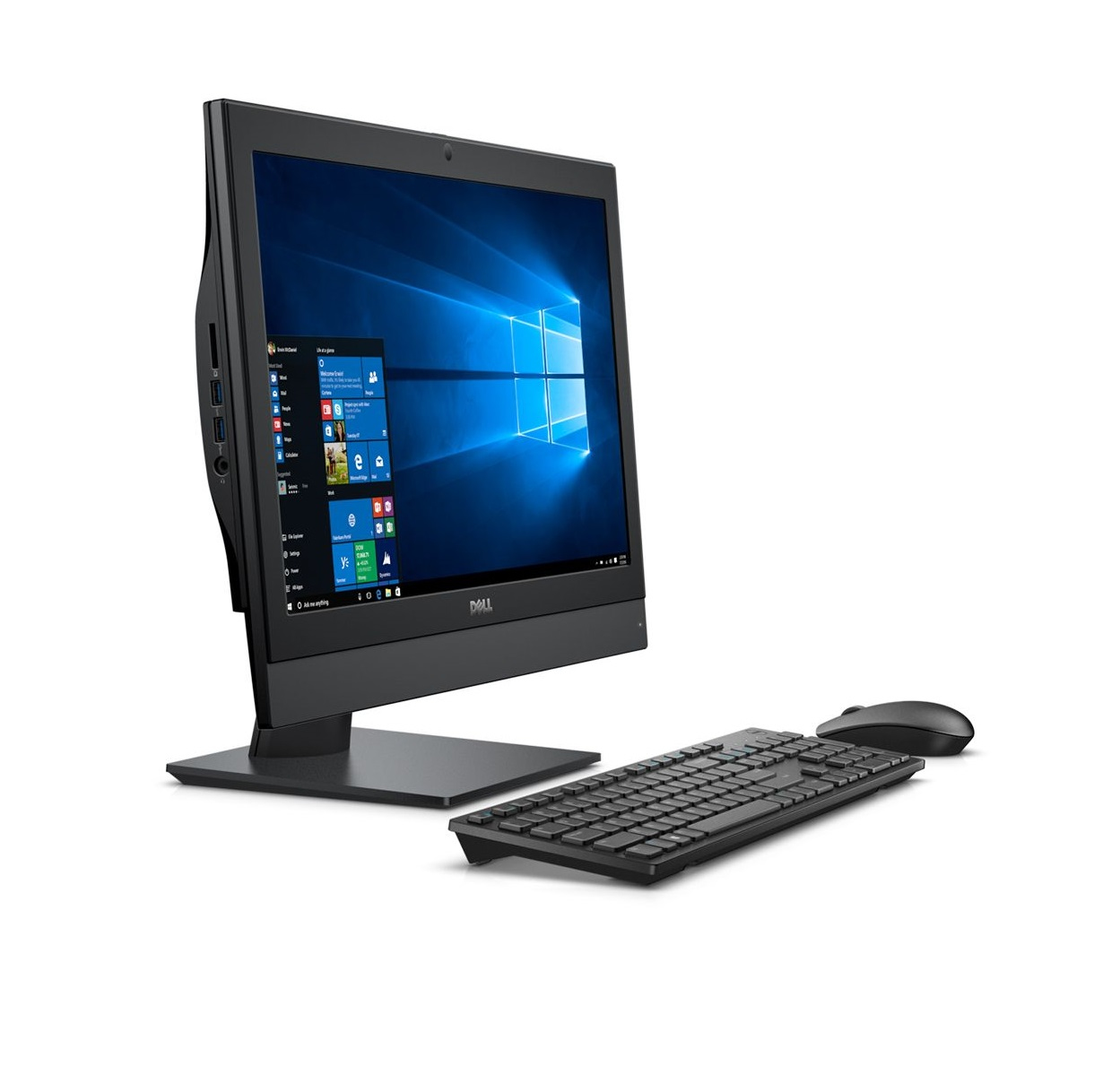

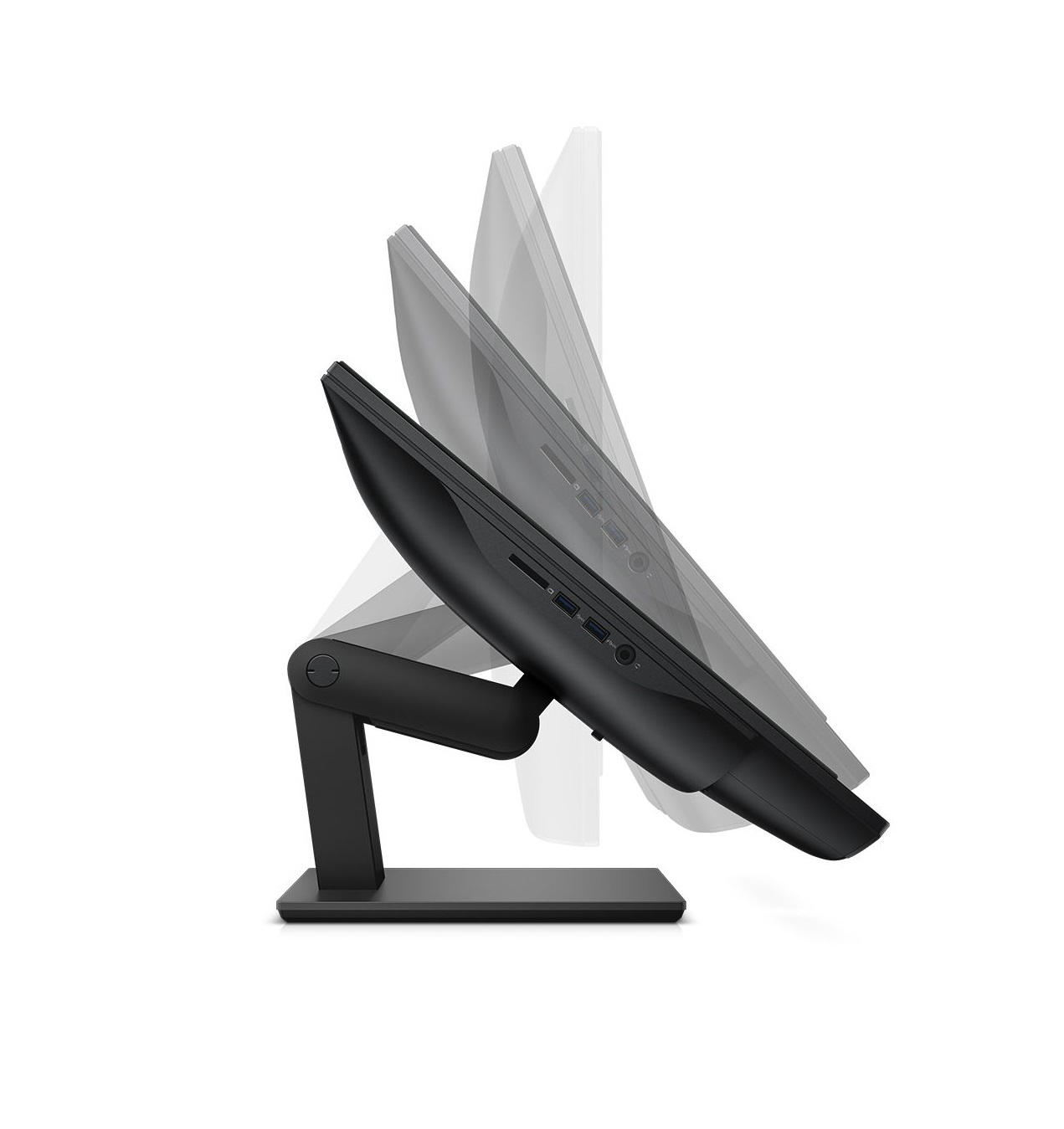

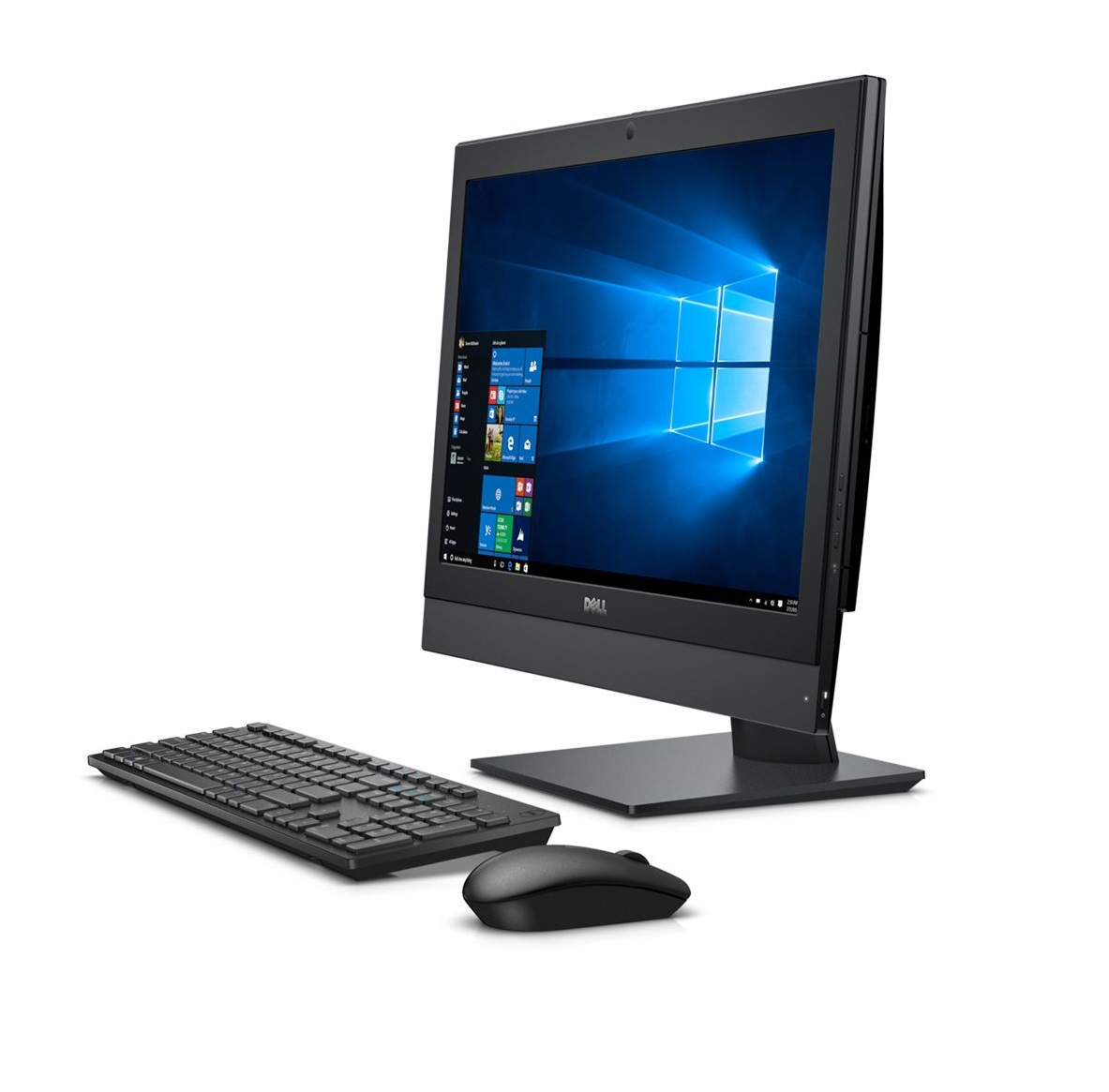

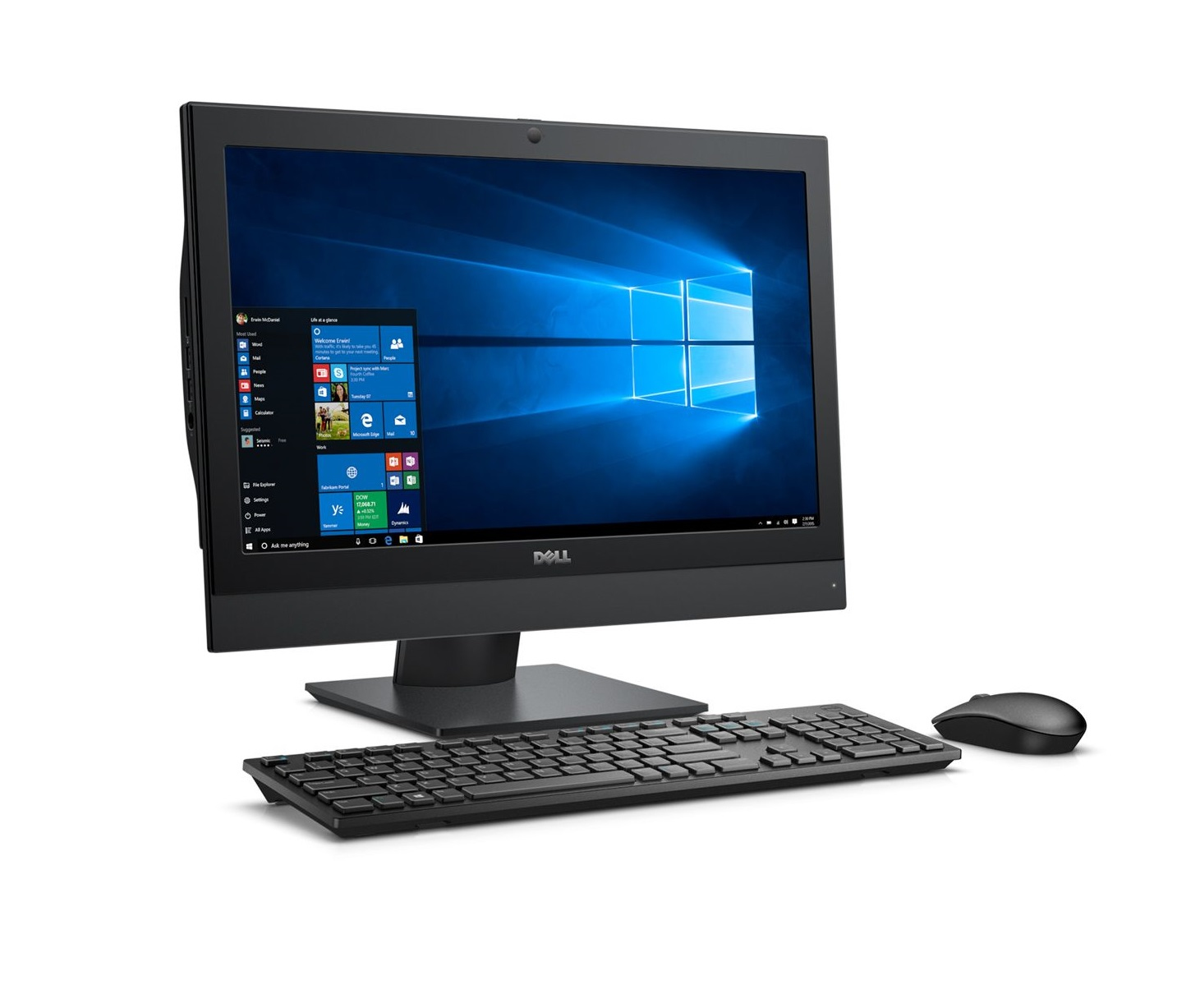

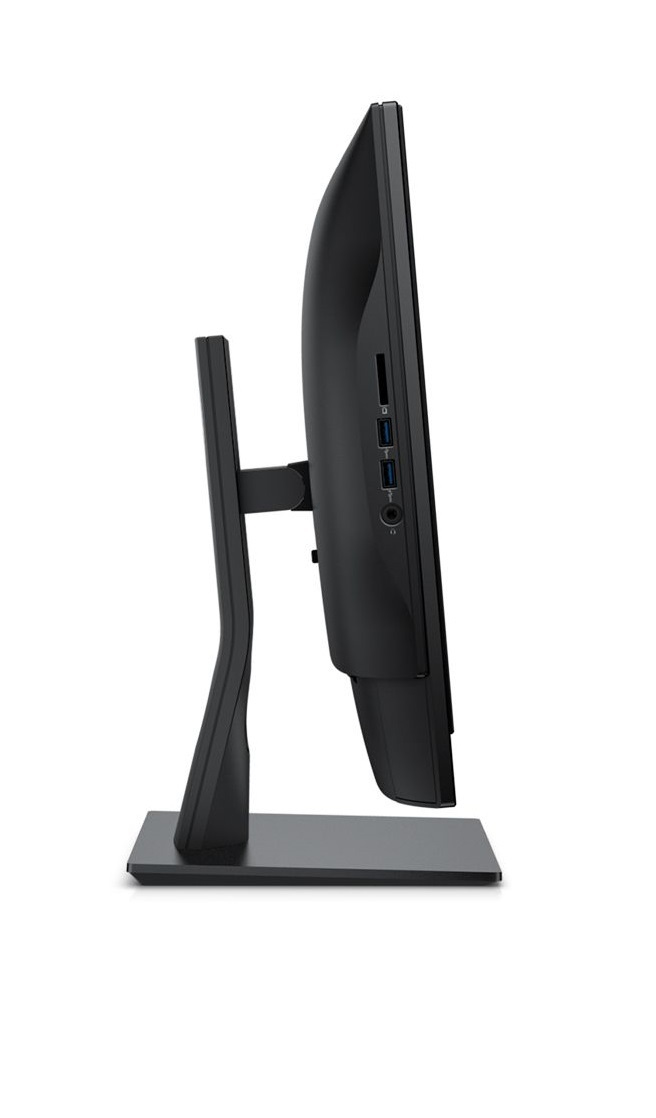

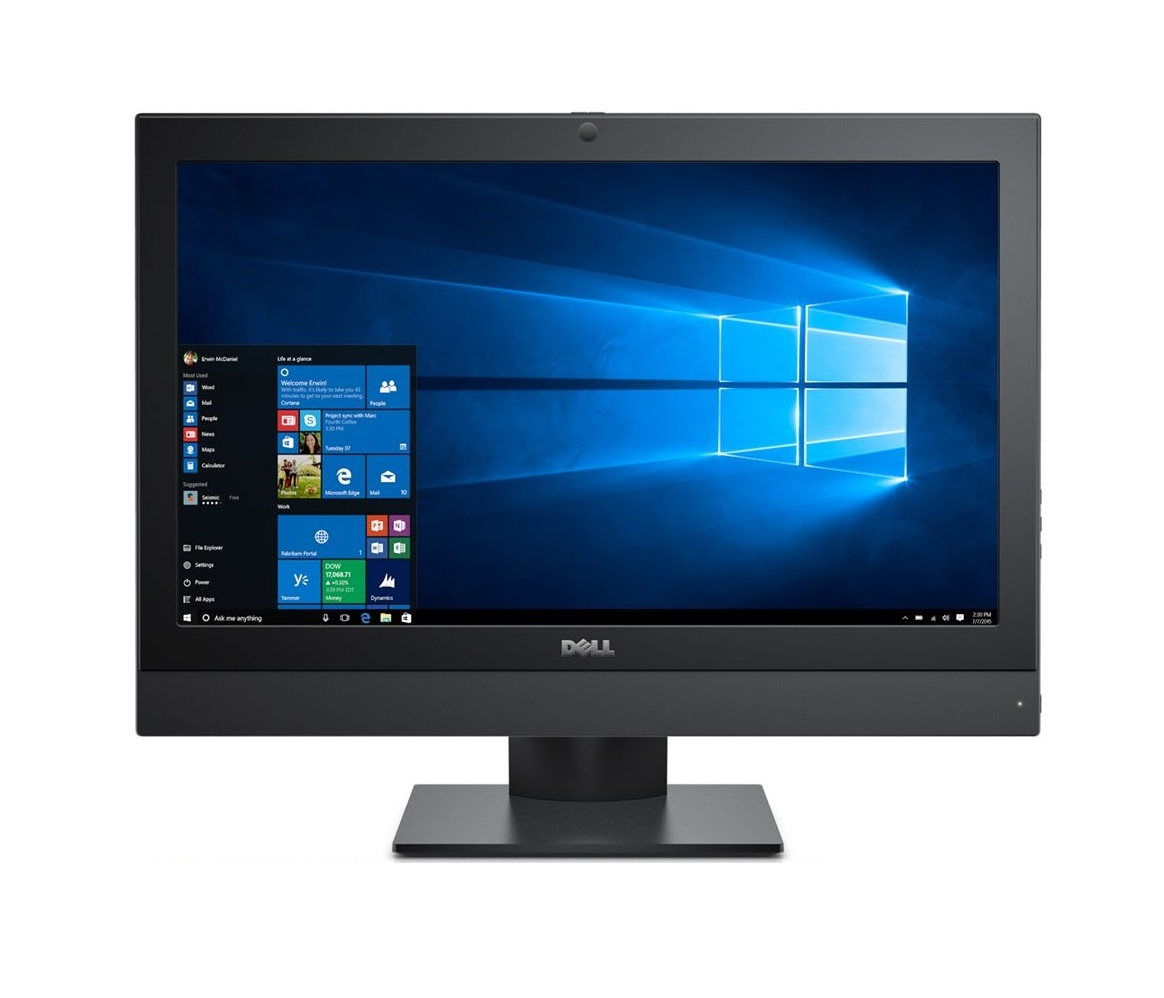

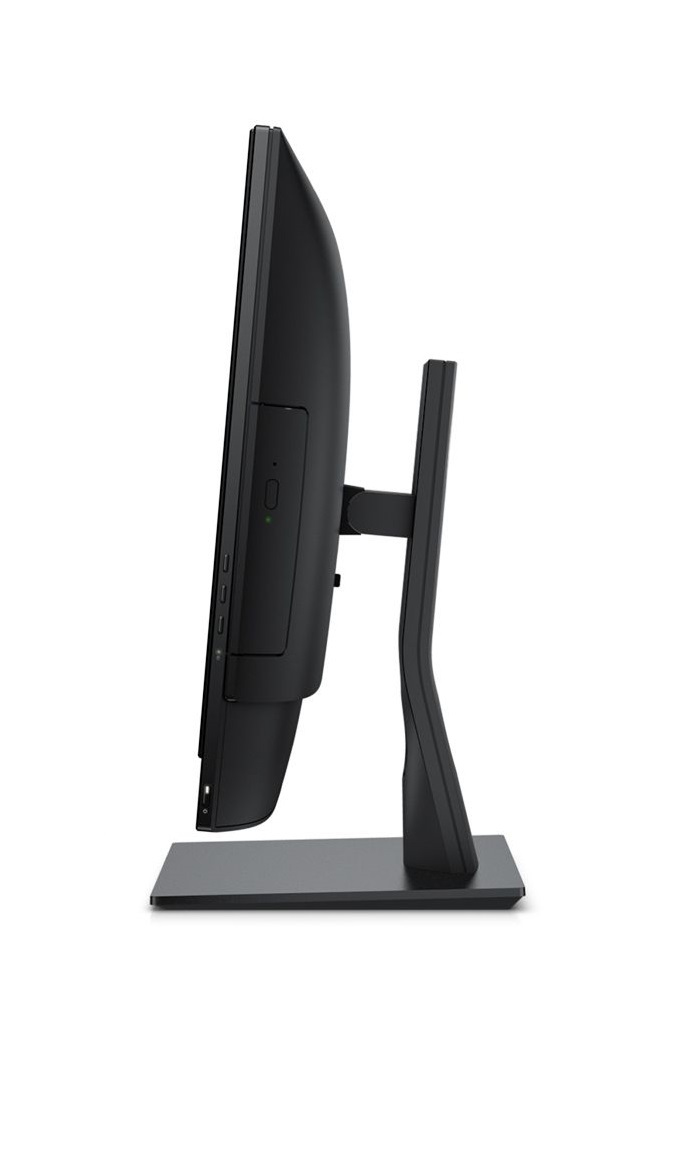

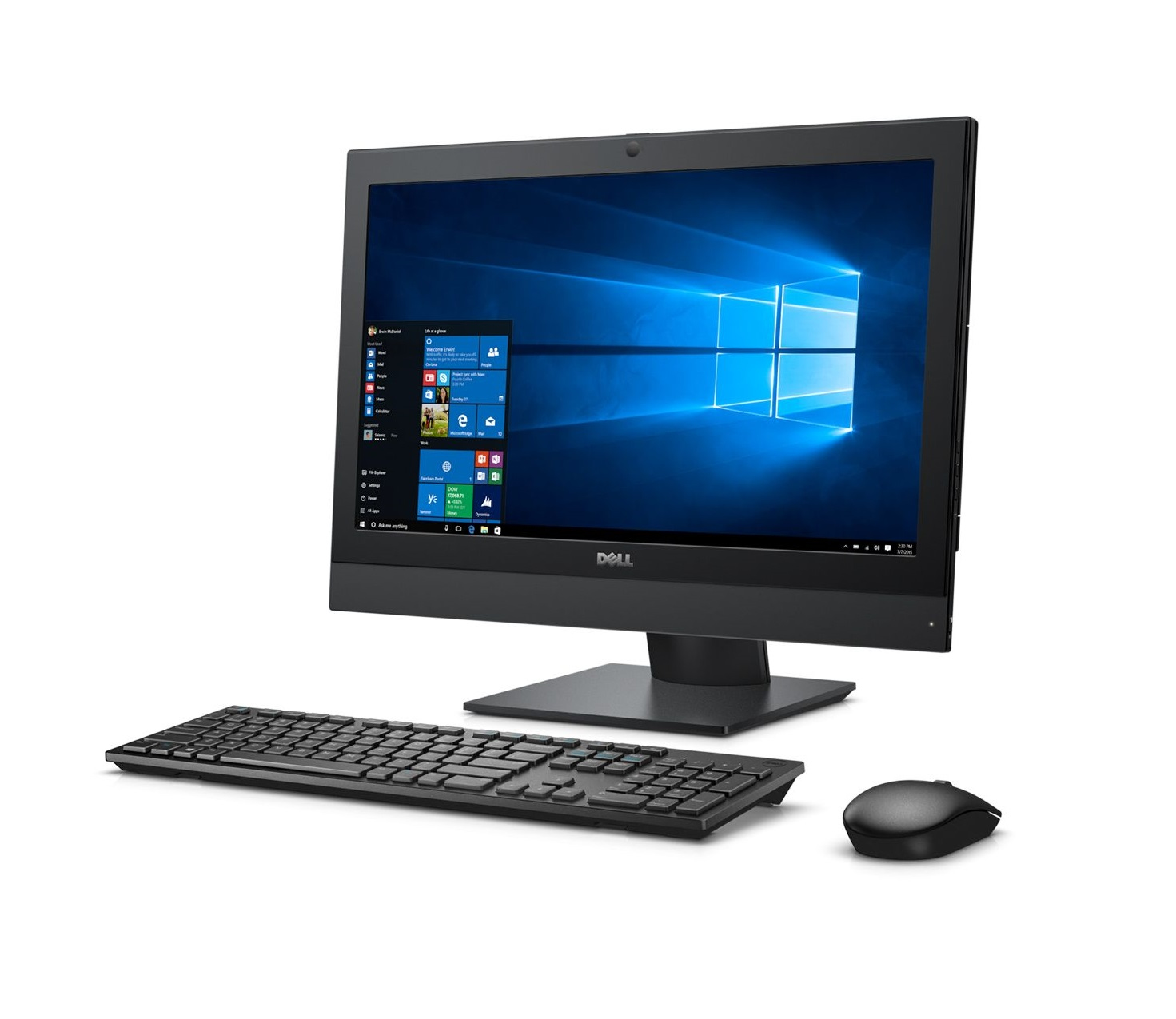

OptiPlex 22 Intel® Core™ i5 i5-6500
54.6 cm (21.5") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR3L-SDRAM 500 GB HDD Windows 7 Professional Black
Model 22Part no. S017O3240AIOUSEAN 5397063781386
191 specifications
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Dell
- Category
- All-in-One PCs/Workstations
- Model
- 22
- Part numbers
- S017O3240AIOUS, CTO02AO3240AIOUS, S008O3240AIOUS, CTOFLEXAO3240AIOUS, CAD013023AIF08IN1OJP, CAD010023AIF04IN1OJP +34 more
- EAN / UPC
- 5397063781386, 5901165757868, 4058154046210, 5397063781379
- Also known as
- DELL OptiPlex 22 Intel® Core™ i5 i5-6500 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR3L-SDRAM 500 GB HDD Windows 7 Professional Black
Specifications
191 specifications in 18 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Full HD | Yes |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Pixel pitch | 0.2475 x 0.2475 mm |
| Screen shape | Flat |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor model | i5-6500 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1151 (Socket H4) |
| System bus rate | 8 GT/s |
| 64-bit computing | Yes |
| Thermal Design Power (TDP) | 65 W |
| Bus type | DMI3 |
| FSB Parity | No |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Processor code | SR2BX |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-6500 Desktop series |
| Stepping | R0 |
| Tcase | 71 °C |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133,1333,1600,1866 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Maximum internal memory | 16 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory form factor | DIMM/SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| HDD interface | SATA III |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 530 |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 1912 |
| On-board graphics card OpenGL version | 4.4 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Audio system | Waves MaxxAudio Pro |
Optical drive
| Specification | Value |
|---|---|
| Optical drive interface | SATA |
| Disc types supported | CD, DVD |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Mini DisplayPorts quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| FireWire 800 | No |
| eSATA ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Motherboard chipset | Intel® H110 |
| BIOS password | Yes |
| HDD user password | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Operating system language | English |
| Recovery operating system | Windows 10 Pro |
| Trial software | Microsoft Office |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Built-in Visuals Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 88184 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.2, AVX 2.0, SSE4.1 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
Power
| Specification | Value |
|---|---|
| AC adapter power | 155 W |
| AC adapter frequency | 47/63 Hz |
| AC adapter input voltage | 90 - 264 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 527.8 mm |
| Weight (with stand) | 10.3 kg |
| Width (without stand) | 527.8 mm |
| Depth (without stand) | 63.5 mm |
| Height (without stand) | 363 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 5000 m |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Warranty card | Yes |
| AC adapter included | Yes |
| Drivers included | Yes |
| Power cord included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| Autonomy mode | No |
| Detachable display | No |
| Storage drive interface | Serial ATA III |
| Intel segment tagging | Enterprise, Small Business |
