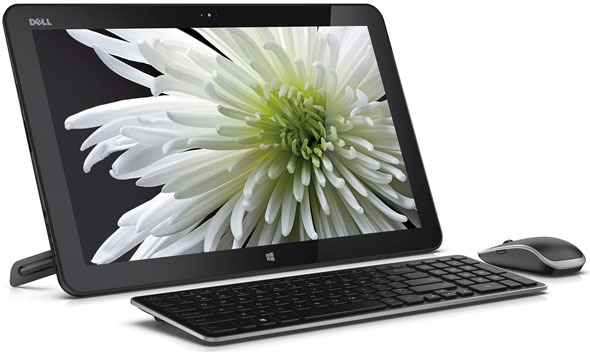

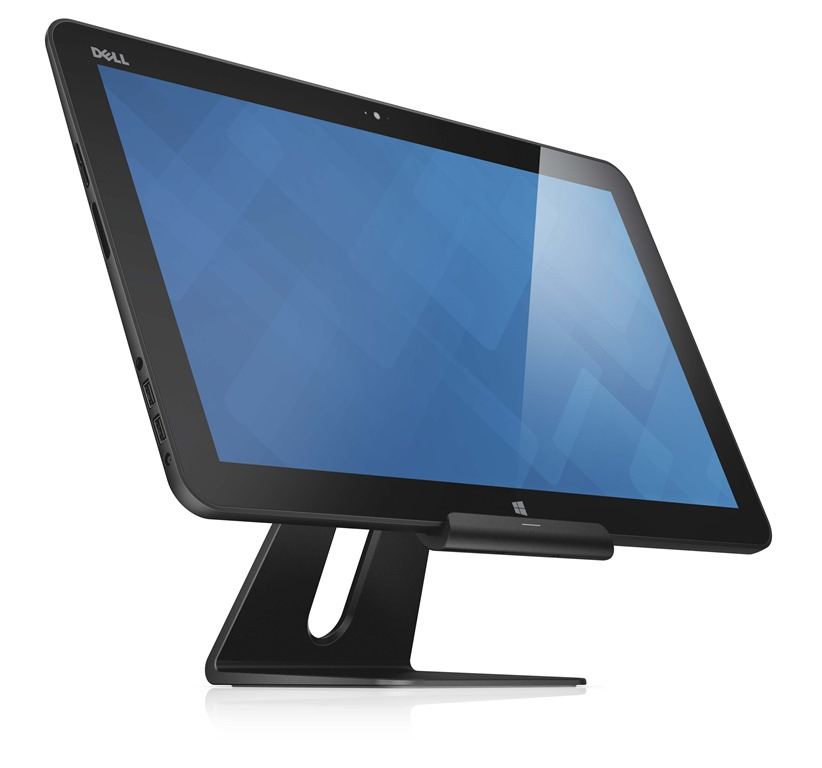

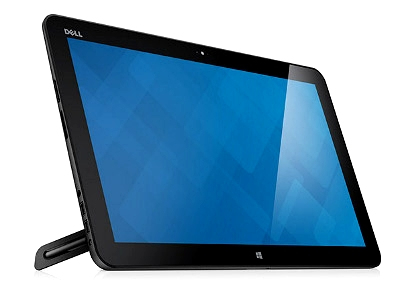

Dell XPS 1810 Intel® Pentium® 2117U

46.7 cm (18.4") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 320 GB HDD Windows 8 Pro Black

Model 1810Part no. SMX18W8S4177EAN 3760106691157

129 specifications

Display46.7 cm (18.4")
Resolution1920 x 1080 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage320 GB
GraphicsNot available

See all specifications

Overview

Display: 46.7 cm (18.4")
Resolution: 1920 x 1080 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 320 GB
Graphics: Not available

Brand: Dell
Category: All-in-One PCs/Workstations
Model: 1810
Part numbers: SMX18W8S4177, CAX18W8P4123, CAX18W8P5165, DXCWCW417, DXCWCW516, CDX1821 +34 more
EAN / UPC: 3760106691157, 884116128359, 884116128366, 8841161283664 +16 more
Also known as: DELL XPS 1810 Intel® Pentium® 2117U 46.7 cm (18.4") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 320 GB HDD Windows 8 Pro Black

Specifications

129 specifications in 17 groups

Display

Specification	Value
Display diagonal	46.7 cm (18.4")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	2117U
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	17 W
Bus type	DMI
CPU multiplier (bus/core ratio)	18
FSB Parity	No
Integrated 4G WiMAX	No
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Processor code	SR0VQ
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Pentium 2000 series for Mobile
Stepping	P0
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory slots type	DIMM
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDXC, xD

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1000 MHz

Audio

Specification	Value
Built-in speaker(s)	Yes

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	No
Combo headphone/mic port	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One PC
Trusted Platform Module (TPM)	Yes

Software

Specification	Value
Operating system installed	Windows 8 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	71469
Processor package size	31 x 24 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	463 mm
Depth (with stand)	17 mm
Height (with stand)	283 mm
Weight (with stand)	2.29 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	Yes
Mounting brackets included	Yes

Other features

Specification	Value
Storage drive interface	Serial ATA
