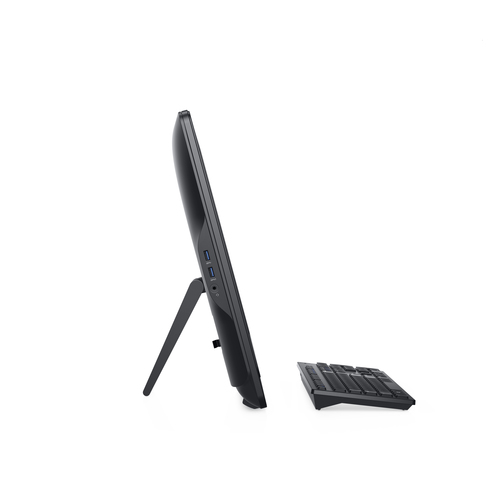

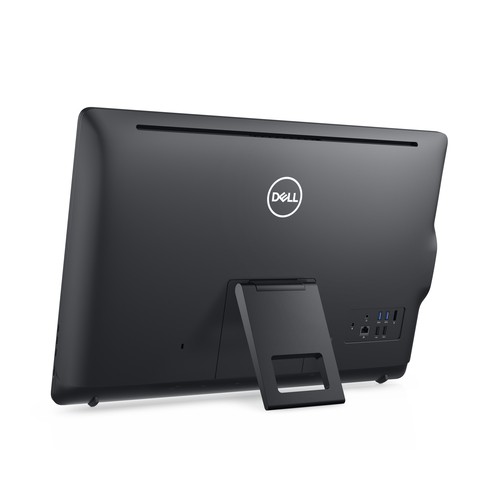

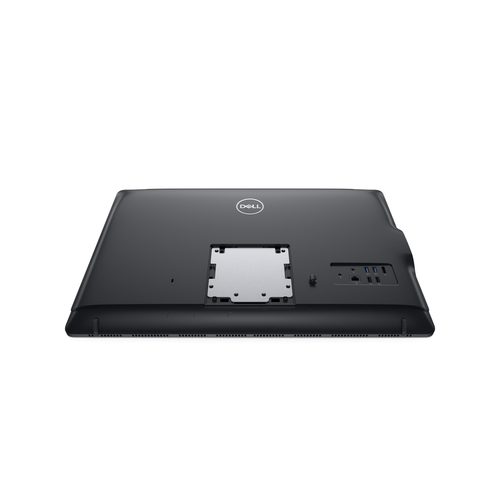

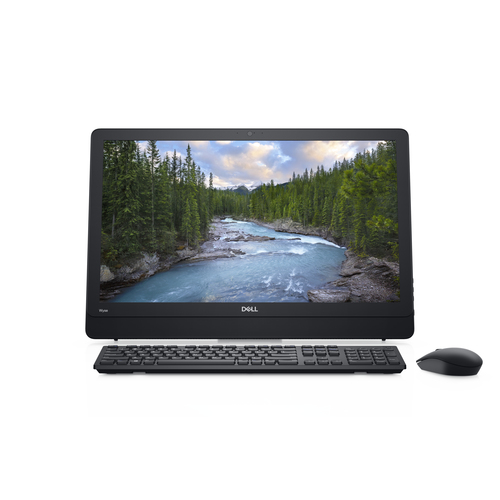

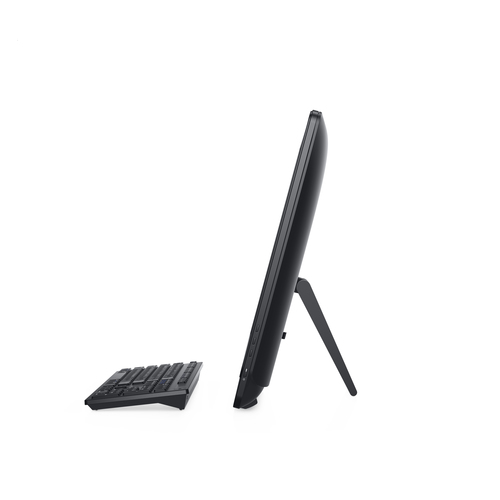

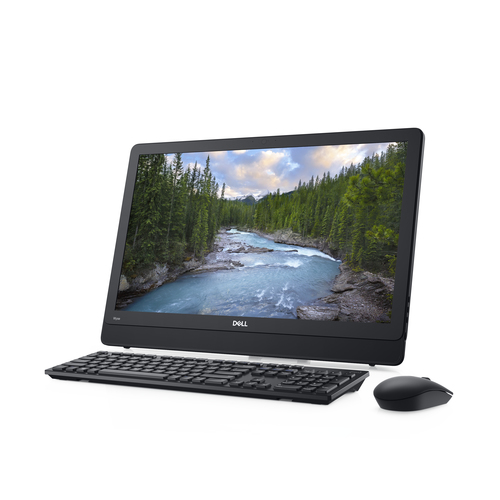

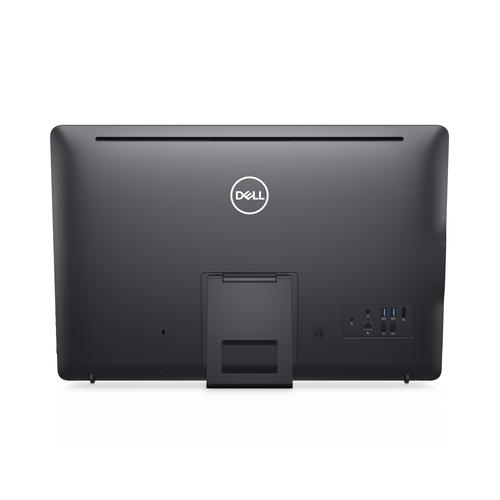

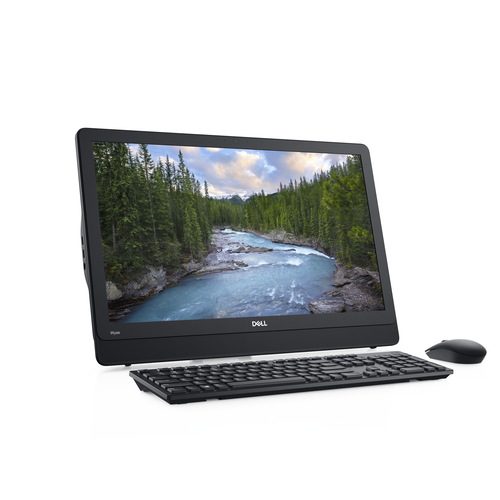

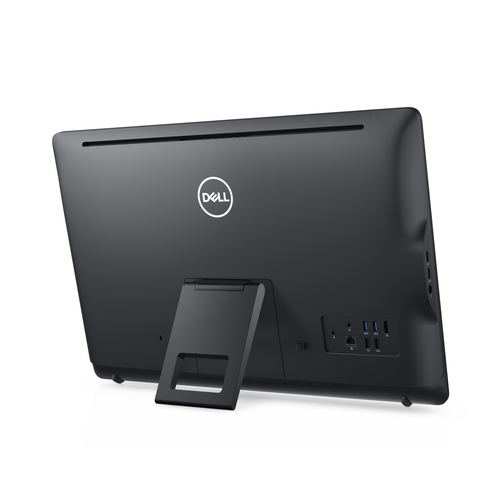

Dell Wyse 5470 Intel® Celeron® J4105
Dell Wyse

5470 Intel® Celeron® J4105

60.5 cm (23.8") 1920 x 1080 pixels All-in-One thin client 4 GB DDR4-SDRAM 16 GB eMMC Wyse ThinOS Wi-Fi 5 (802.11ac) Black

Model 5470Part no. SS5470AIOUS_FG0012EAN 5397184556382

152 specifications
  • Display60.5 cm (23.8")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Celeron®
  • Memory4 GB
  • Storage16 GB
  • GraphicsNot available
See all specifications

Overview

Display
60.5 cm (23.8")
Resolution
1920 x 1080 pixels
Processor
Intel® Celeron®
Memory
4 GB
Storage
16 GB
Graphics
Not available
Brand
Dell Wyse
Model
5470
Part numbers
SS5470AIOUS_FG0012, XCTOW5470AIOTCBR, XCTO5470AIOUSMX, J7FPX, 2XGVR, WW3YD +15 more
EAN / UPC
5397184556382, 5397184556375, 884116344940, 5397184317082 +7 more
Also known as
Dell Wyse 5470 Intel® Celeron® J4105 60.5 cm (23.8") 1920 x 1080 pixels All-in-One thin client 4 GB DDR4-SDRAM 16 GB eMMC Wyse ThinOS Wi-Fi 5 (802.11ac) Black

Specifications

152 specifications in 20 groups

Display

Display diagonal60.5 cm (23.8")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
LED backlightYes
Native aspect ratio16:9
Display brightness250 cd/m²
Response time25 ms
Pixel density82 ppi
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelJ4105
Processor cores4
Processor threads4
Processor boost frequency2.5 GHz
Processor frequency1.5 GHz
Processor cache4 MB
Processor socketBGA 1090
Thermal Design Power (TDP)10 W
Maximum number of PCI Express lanes6
PCI Express configurations1x2, 1x2+2x1, 1x4, 2x1, 4x1
PCI Express slots version2.0
Processor codenameGemini Lake
Processor lithography14 nm
Processor operating modes64-bit
Tjunction105 °C
Conflict-Free processorYes
Maximum internal memory supported by processor8 GB
Memory types supported by processorDDR4-SDRAM, LPDDR4-SDRAM
Memory clock speeds supported by processor2400 MHz

Memory

Internal memory4 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory8 GB
Memory slots2
Memory slots typeSO-DIMM
Memory clock speed2400 MHz
Memory layout (slots x size)1 x 4 GB
Memory form factorDIMM/SO-DIMM

Storage

Total storage capacity16 GB
Storage mediaeMMC
Number of storage drives installed1
Optical drive typeNo
Card reader integratedNo
Compatible memory cardsNot supported

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card modelIntel® UHD Graphics 600
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency250 MHz
On-board graphics card burst frequency750 MHz
On-board graphics card dynamic frequency (max)750 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x3185
Number of execution units12

Audio

Built-in speaker(s)Yes
RMS rated power3 W
Built-in microphoneYes
Number of microphones2

Camera

Built-in cameraYes
Total megapixels1 MP
Camera HD typeHD
Camera resolution1280 x 720 pixels
Camera signal format720p

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
WLAN controller modelIntel Dual Band Wireless-AC 9560
Antenna type2x2
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
Thunderbolt ports quantity0
HDMI ports quantity0
DisplayPorts quantity1
Headphone outputs0
Microphone inNo
Audio outputYes
Combo headphone/mic portYes
DC-in jackYes
PowerShareYes
Number of USB ports with PowerShare support1

Design

Product colourBlack
Cable lock slotYes
Cable lock slot typeKensington
On/off buttonYes

Performance

Product typeAll-in-One thin client
Trusted Platform Module (TPM)Yes

Software

Operating system installedWyse ThinOS

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Smart Response Technology version0.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Processor ARK ID128989
Processor package size25 x 24 mm
Thermal Monitoring TechnologiesYes

Power

AC adapter power90 W
AC adapter frequency50/60 Hz
AC adapter input voltage100 - 240 V
AC adapter output voltage19.5 V

Pen

Pen includedNo

Operational conditions

Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude-15.2 - 3048 m
Non-operating altitude-15.2 - 10668 m

Sustainability

Sustainability certificatesENERGY STAR

Packaging content

Mouse included on selected markets onlyYes
Keyboard included on selected markets onlyYes
AC adapter includedYes
Power cord includedYes
ManualYes

Other features

3DNo
AC adapter output current4.62 A
Autonomy modeNo
Detachable displayNo
Stand typeEasel stand
Supported protocolsPCoIP

Technical details

Operating vibration0.66 G
Non-operating vibration1.3 G
Operating shock110 G
Non-operating shock160 G
