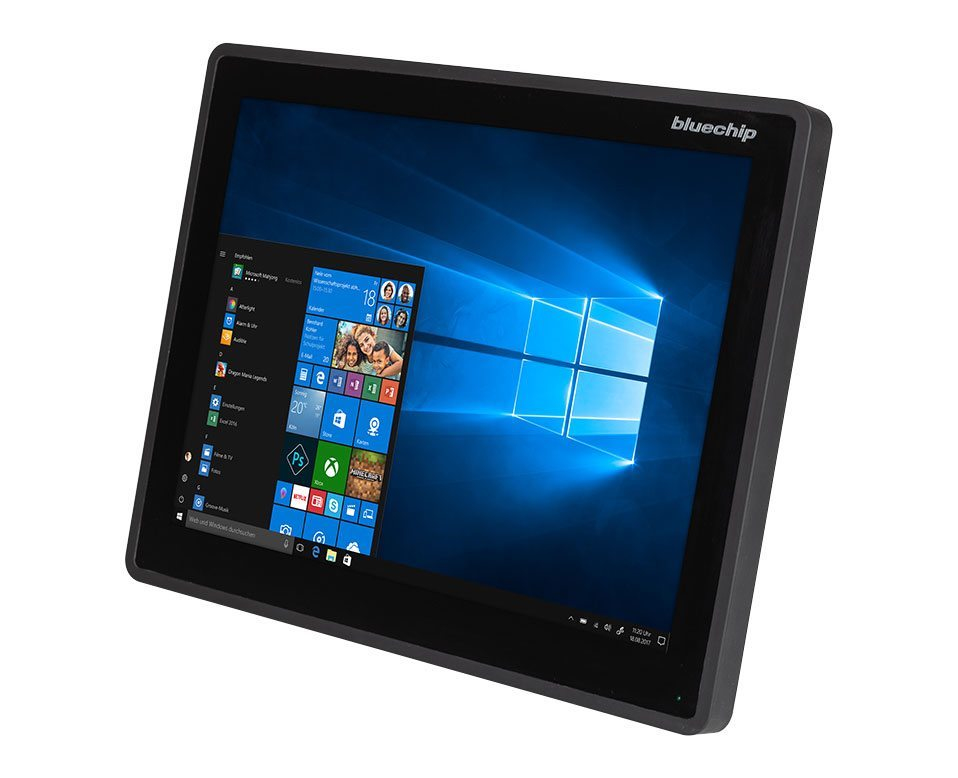

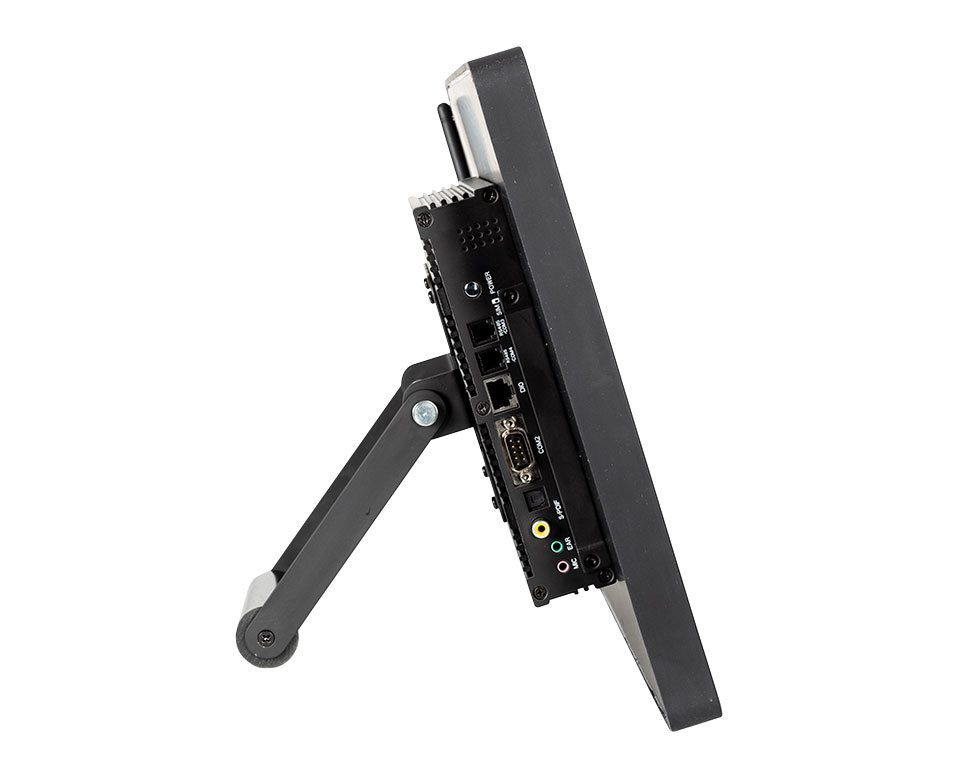

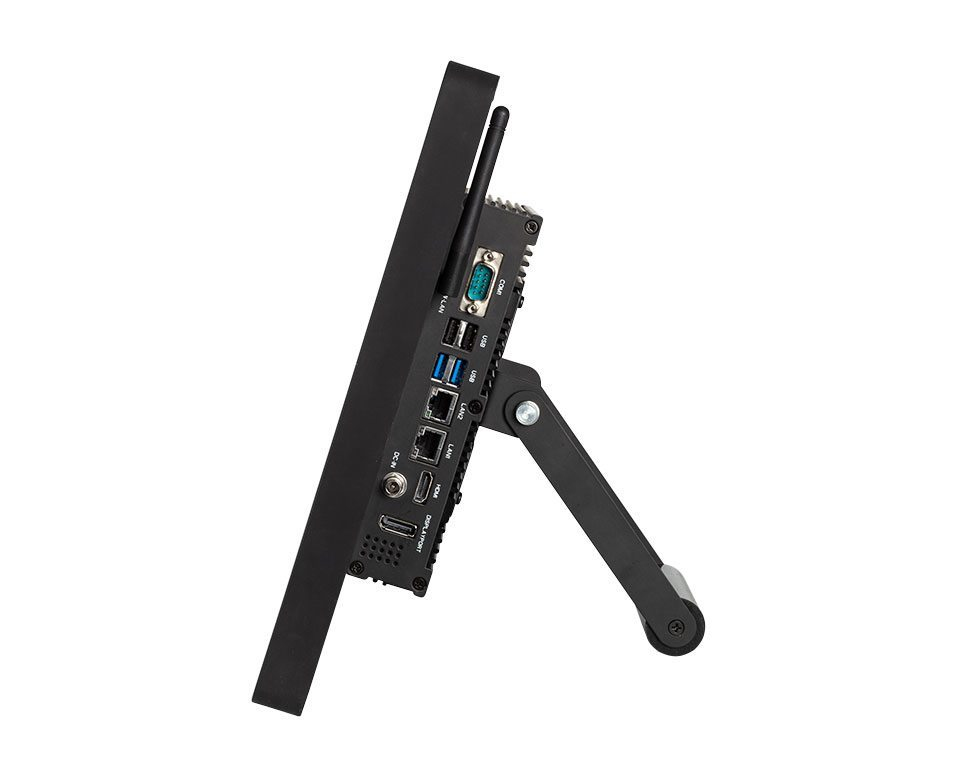

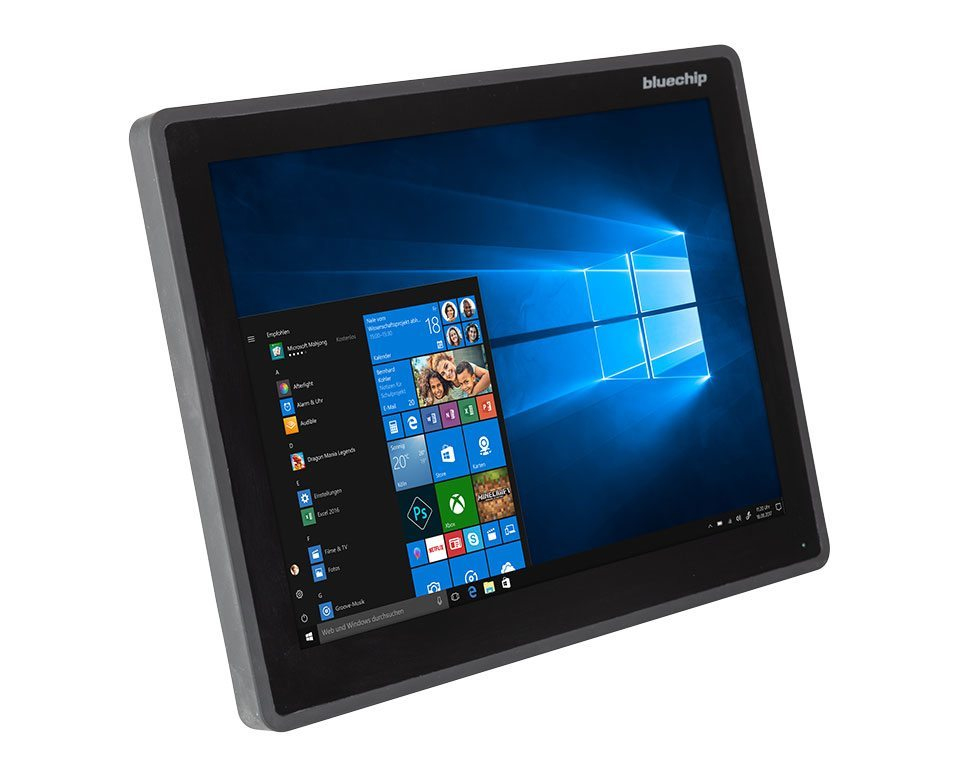

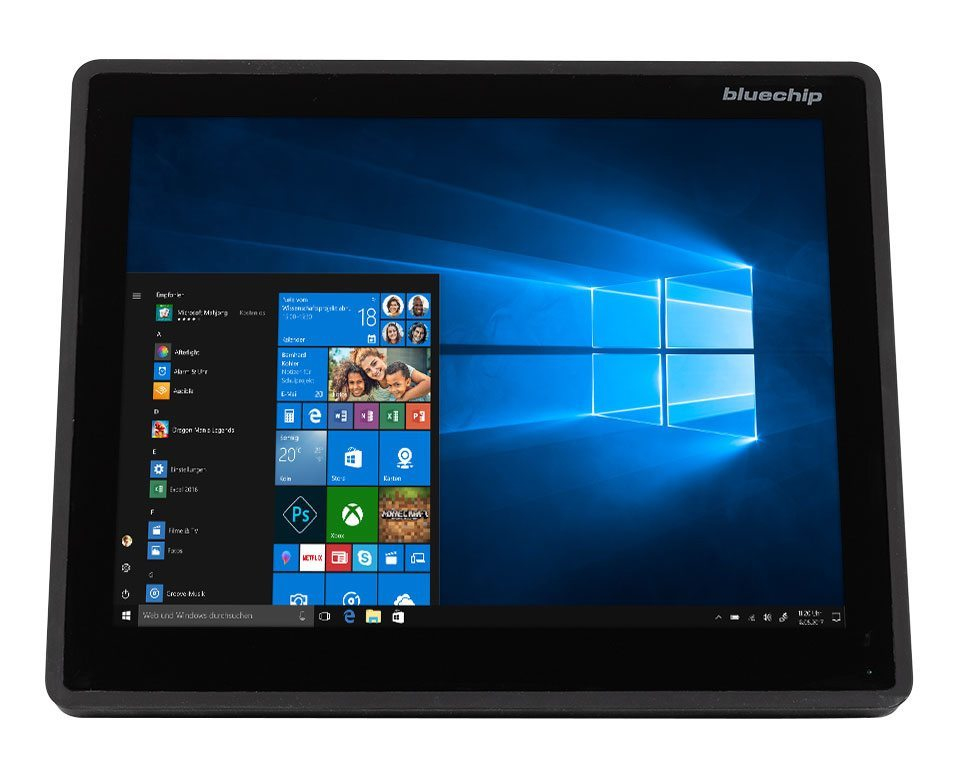

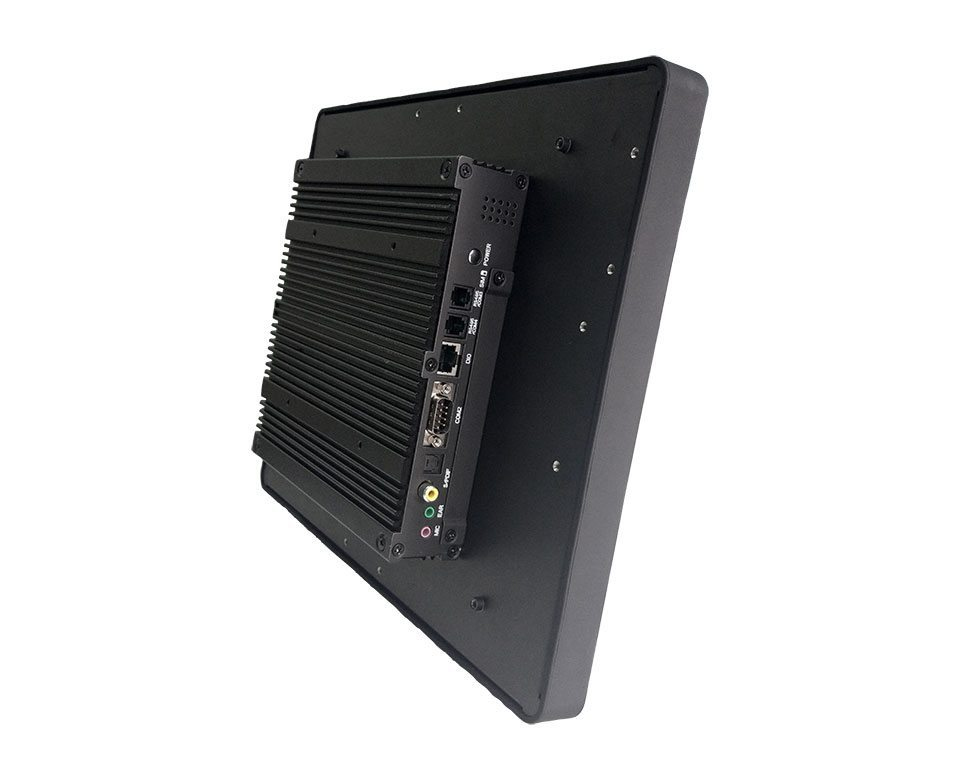

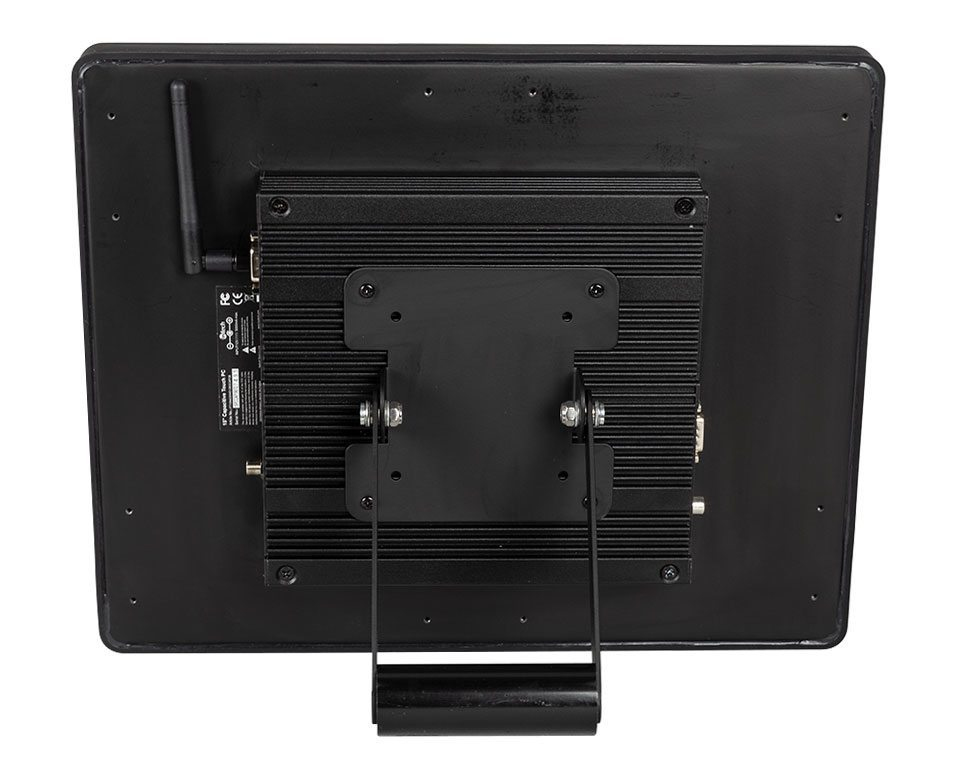

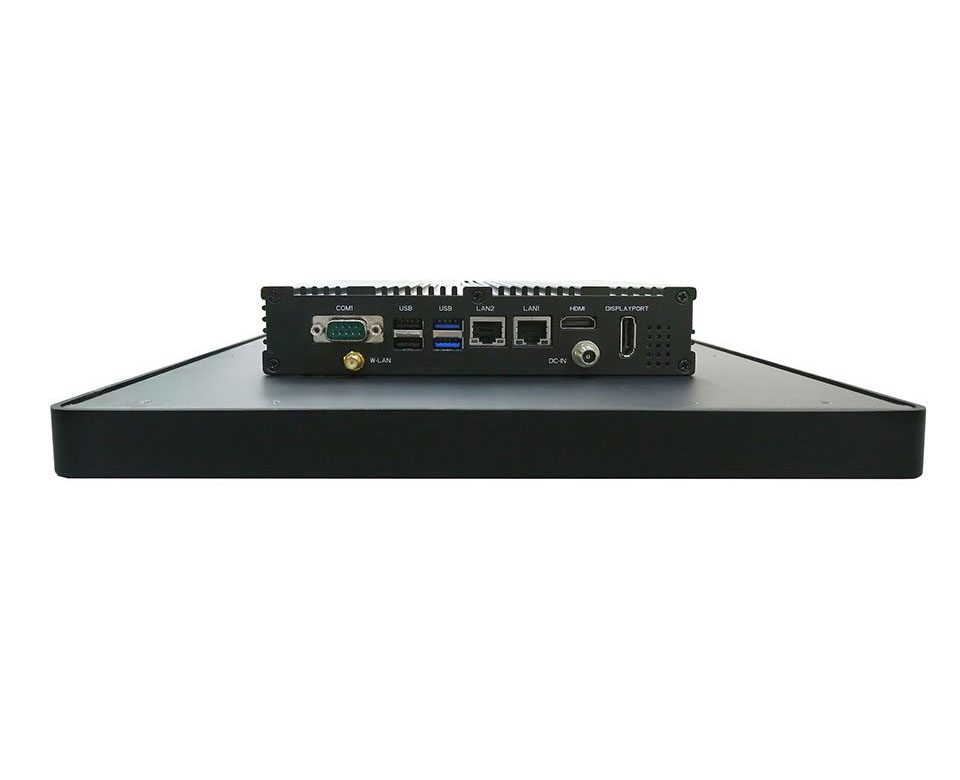

INDUSTRYline P15KT-1000
Model INDUSTRYline P15KT-1000Part no. 551312EAN 4250749700846
134 specifications
- Display38.1 cm (15")
- Resolution1024 x 768 pixels
- ProcessorIntel® Pentium®
- Memory4 GB
- Storage128 GB
- OSWindows 10 IoT Enterprise
Overview
- Display
- 38.1 cm (15")
- Resolution
- 1024 x 768 pixels
- Processor
- Intel® Pentium®
- Memory
- 4 GB
- Storage
- 128 GB
- OS
- Windows 10 IoT Enterprise
- Brand
- bluechip
- Category
- All-in-One PCs/Workstations
- Model
- INDUSTRYline P15KT-1000
- Part number
- 551312
- EAN / UPC
- 4250749700846
- Also known as
- bluechip INDUSTRYline P15KT-1000
Specifications
134 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Touchscreen | Yes |
| HD type | XGA |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 4:3 |
| Display brightness | 300 cd/m² |
| Response time | 12 ms |
| Contrast ratio (typical) | 700:1 |
| Display number of colours | 16.78 million colours |
| Multi-touch | Yes |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | N4200 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.5 GHz |
| Processor frequency | 1.1 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1296 |
| Thermal Design Power (TDP) | 6 W |
| Maximum number of PCI Express lanes | 6 |
| PCI Express configurations | 1x2, 1x2+2x1 |
| PCI Express slots version | 2.0 |
| Processor codename | Apollo Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium Processor N4000 Series for Mobile |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 105 °C |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 1866,2400 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3L |
| Memory layout (slots x size) | 1 x 4 GB |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 505 |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card burst frequency | 750 MHz |
| On-board graphics card ID | 0x5A84 |
| Number of execution units | 18 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Serial ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium, Silicone |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology | No |
| Intel Smart Connect Technology version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 95592 |
| Processor package size | 24 x 31 mm |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| Power consumption (standby) | 1 W |
| Power consumption (typical) | 17 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 359 mm |
| Depth (with stand) | 61 mm |
| Height (with stand) | 291 mm |
| Weight (with stand) | 3.4 kg |
| Package weight | 5.3 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Backlight type | LED |
| Chipset | Intel E3800 |
| Display diagonal (metric) | 38.1 cm |
| HDMI | Yes |
| Maximum resolution | 1920 x 1200 pixels |
