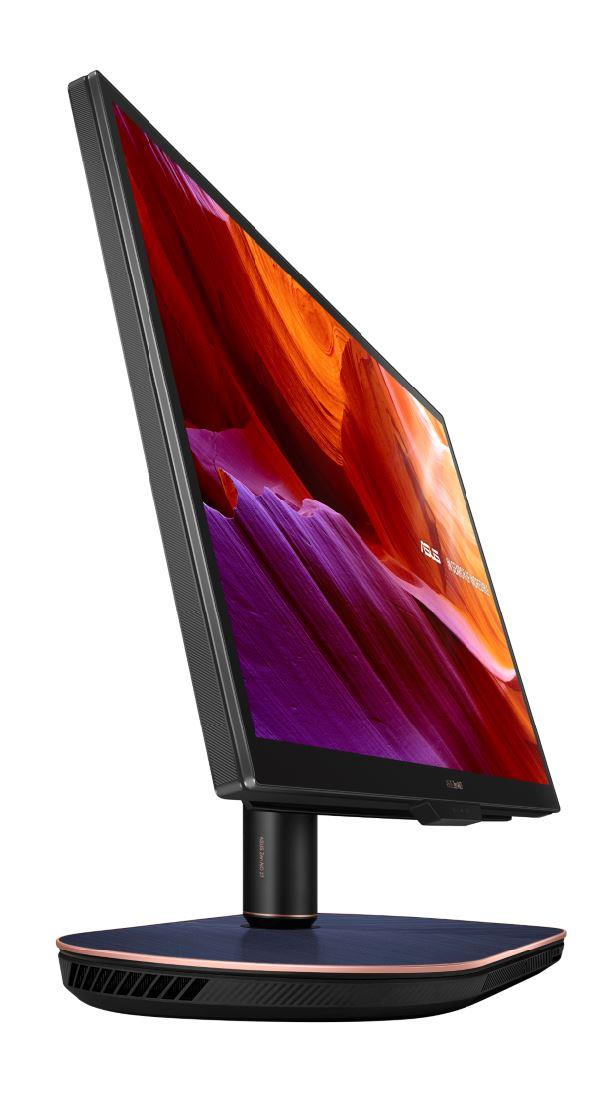

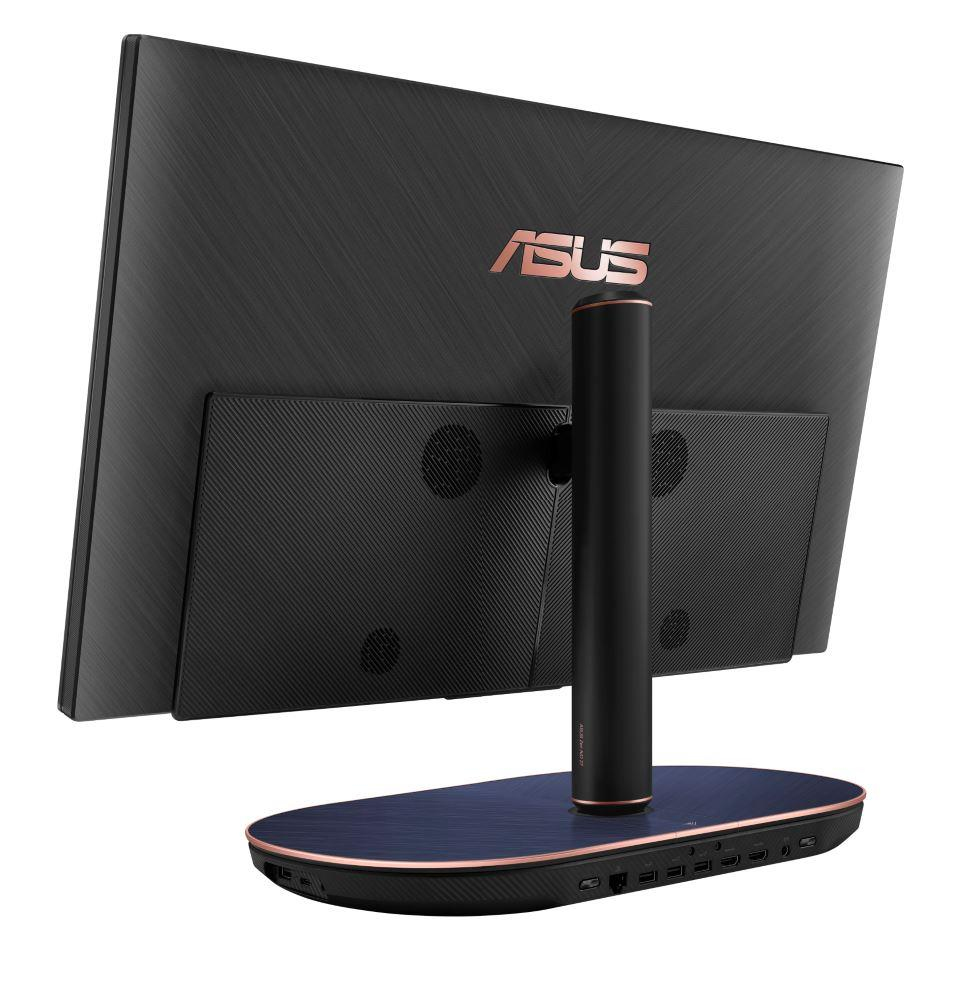

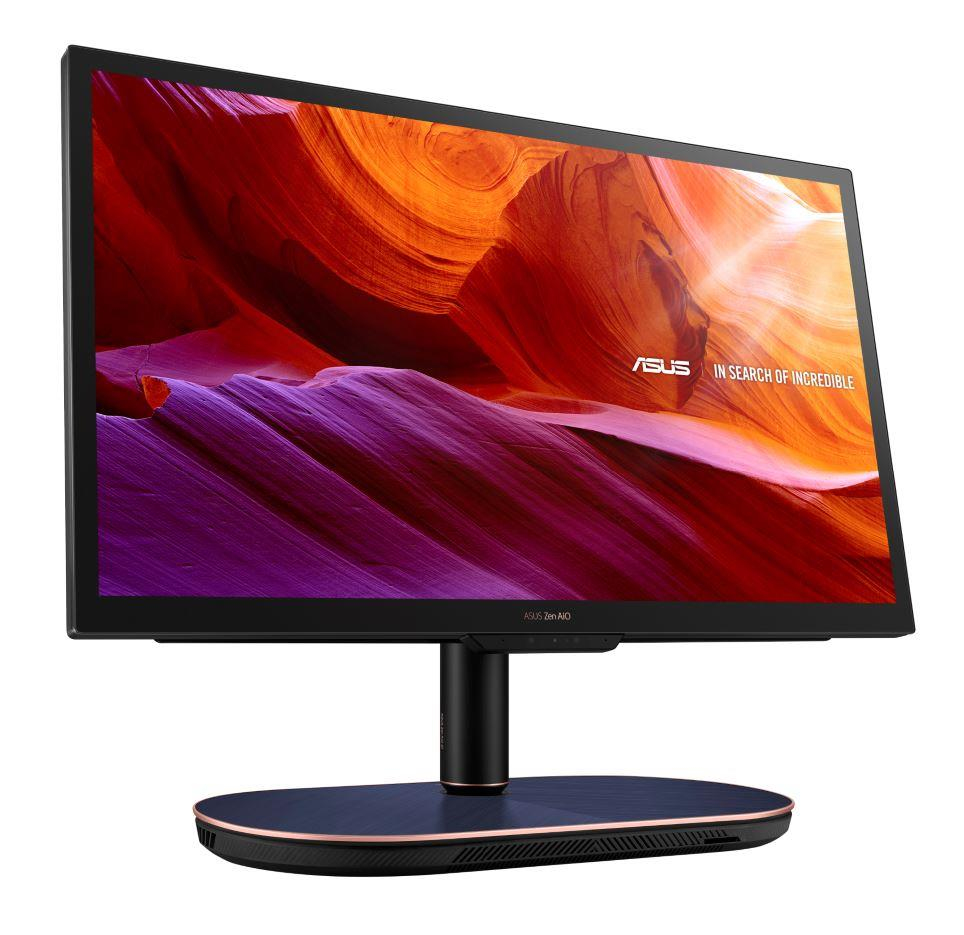

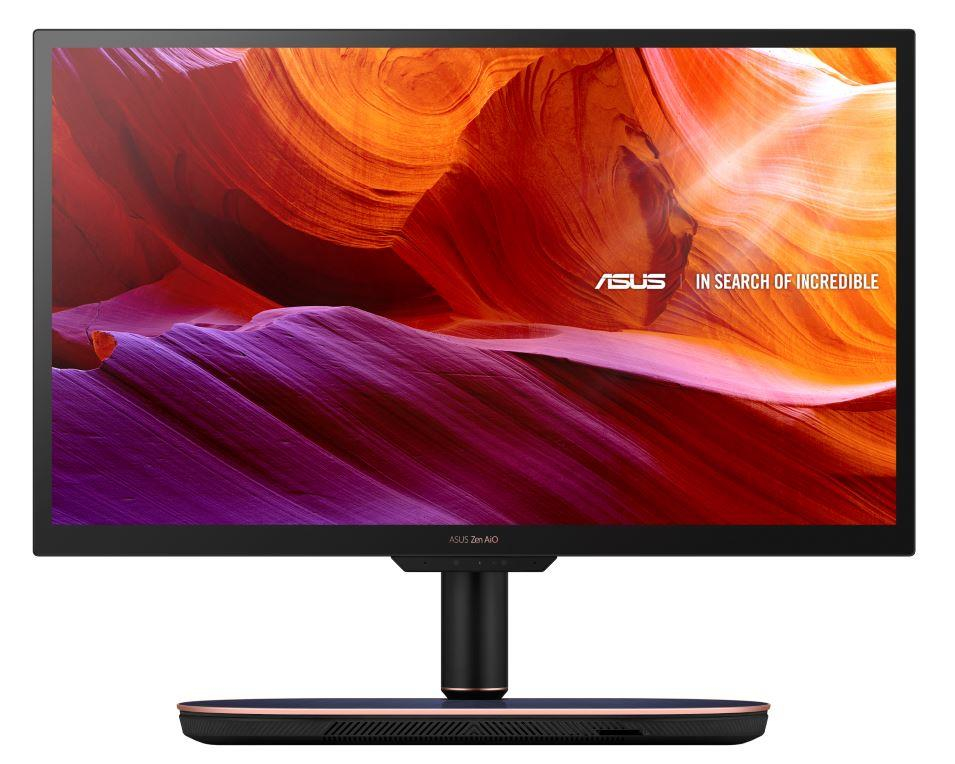

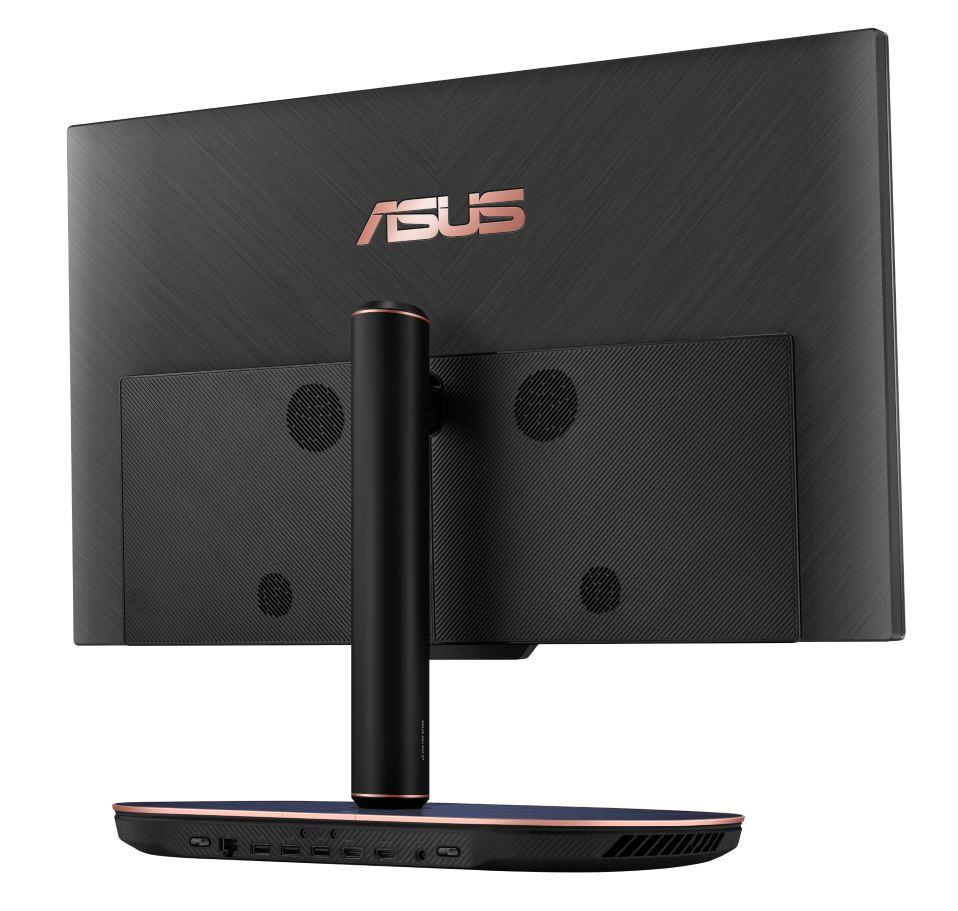

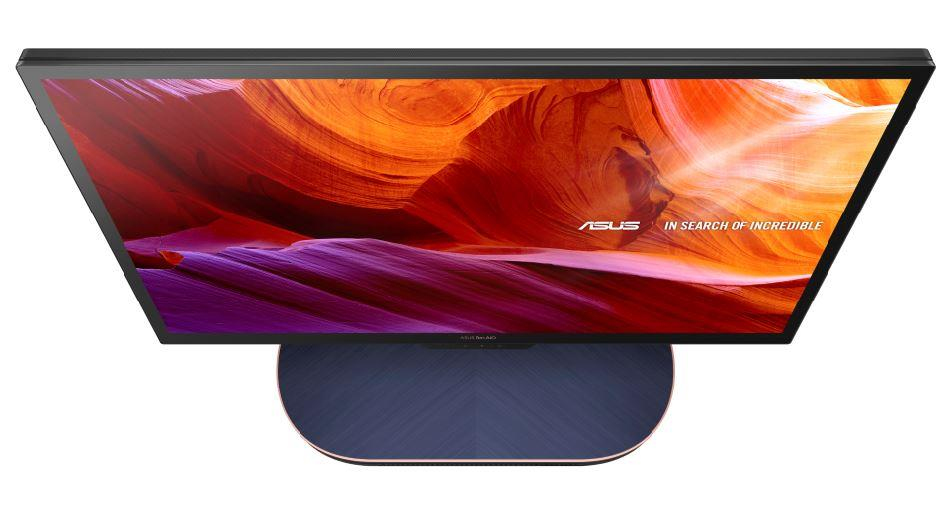

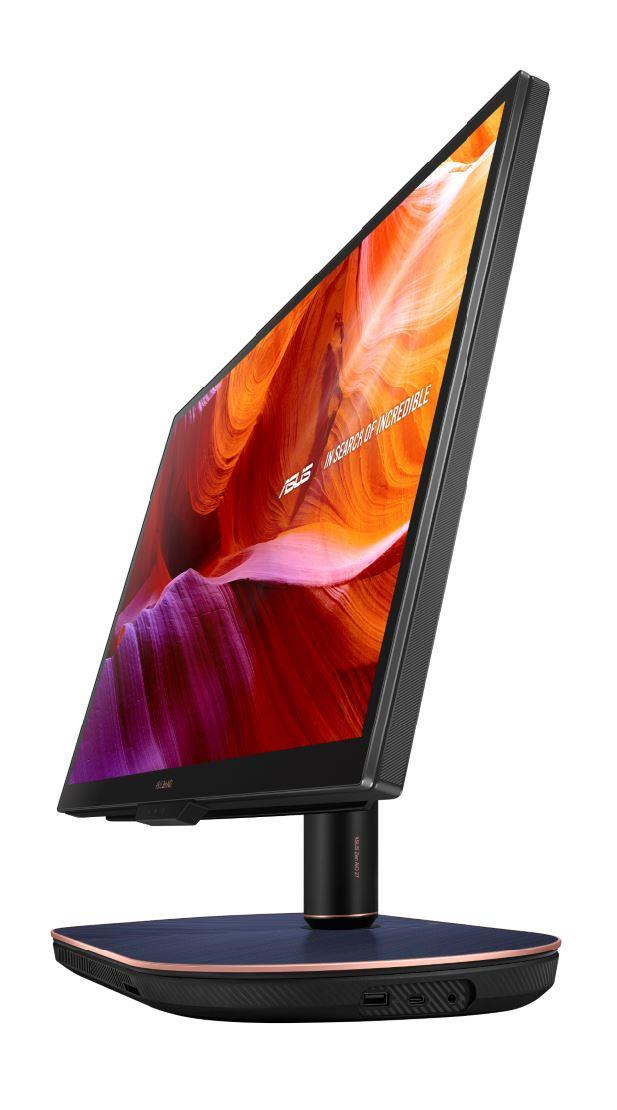

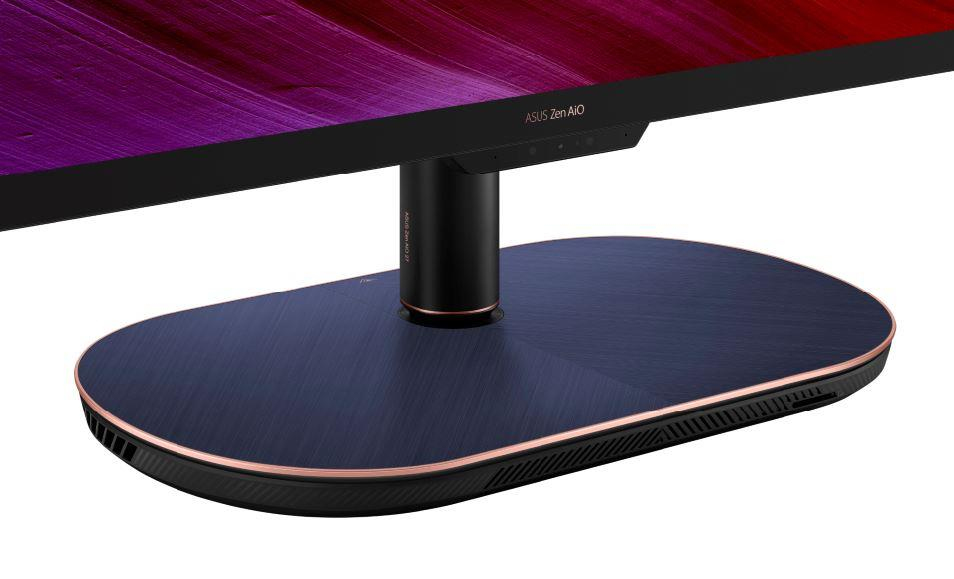

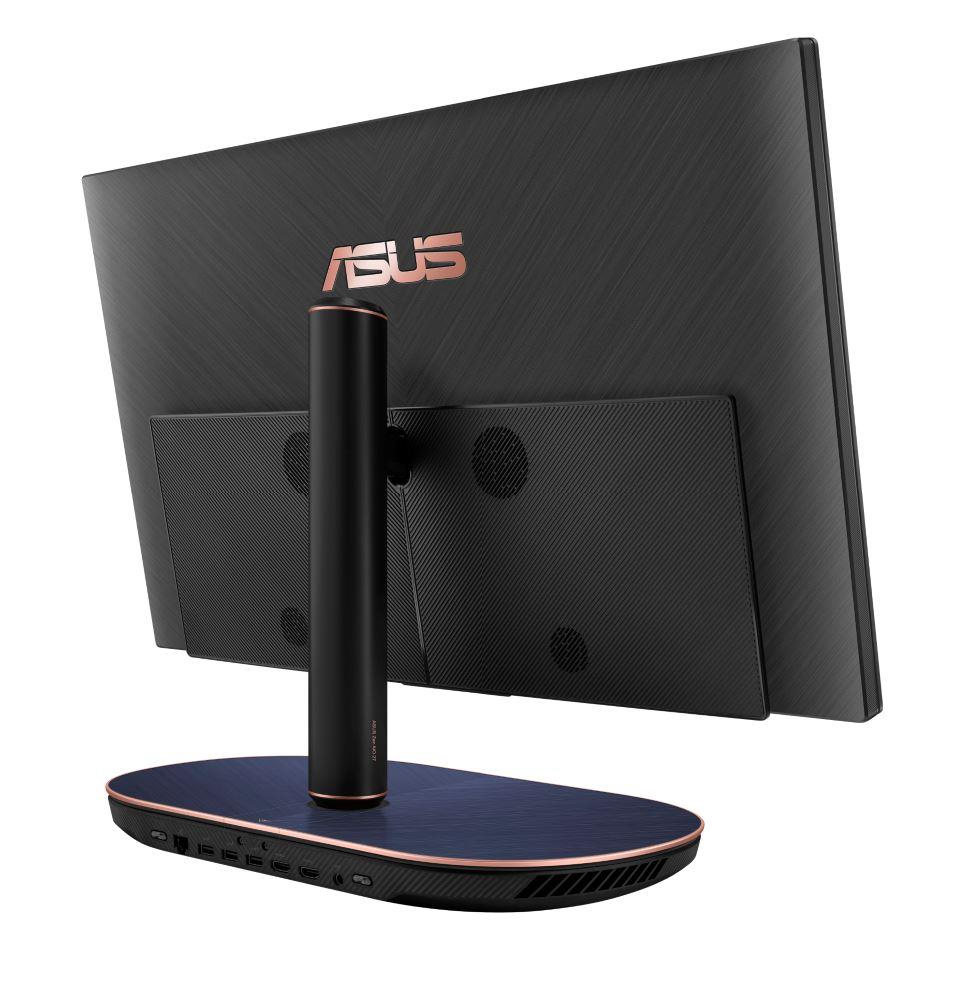

ASUS Zen AiO Z272SDK-BA080T Intel® Core™ i5 i5-8400T
ASUS

Zen AiO Z272SDK-BA080T Intel® Core™ i5 i5-8400T

68.6 cm (27") 3840 x 2160 pixels All-in-One PC 16 GB DDR4-SDRAM 2.25 TB HDD+SSD NVIDIA® GeForce® GTX 1050 W

Model Z272SDK-BA080TPart no. 90PT0281-M01880

150 specifications
  • Display68.6 cm (27")
  • Resolution3840 x 2160 pixels
  • ProcessorIntel® Core™ i5
  • Memory16 GB
  • Storage2.25 TB
  • GraphicsNVIDIA® GeForce® GTX 1050
See all specifications

Overview

Display
68.6 cm (27")
Resolution
3840 x 2160 pixels
Processor
Intel® Core™ i5
Memory
16 GB
Storage
2.25 TB
Graphics
NVIDIA® GeForce® GTX 1050
Brand
ASUS
Model
Z272SDK-BA080T
Part number
90PT0281-M01880
Also known as
ASUS Zen AiO Z272SDK-BA080T Intel® Core™ i5 i5-8400T 68.6 cm (27") 3840 x 2160 pixels All-in-One PC 16 GB DDR4-SDRAM 2.25 TB HDD+SSD NVIDIA® GeForce® GTX 1050 W

Specifications

150 specifications in 20 groups

Display

Display diagonal68.6 cm (27")
Display resolution3840 x 2160 pixels
HD type4K Ultra HD
LED backlightYes
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation8th gen Intel® Core™ i5
Processor modeli5-8400T
Processor cores6
Processor threads6
Processor boost frequency3.3 GHz
Processor frequency1.7 GHz
Processor cache9 MB
Processor cache typeSmart Cache
Processor socketLGA 1151 (Socket H4)
System bus rate8 GT/s
Thermal Design Power (TDP)35 W
Configurable TDP-down frequency1.2 GHz
Configurable TDP-down25 W
Bus typeDMI3
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
Processor codeSR3X6
Processor codenameCoffee Lake
Processor lithography14 nm
Processor operating modes64-bit
SteppingU0
Tjunction100 °C
Conflict-Free processorYes
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2666 MHz
Memory bandwidth supported by processor (max)41.6 GB/s
Memory channels supported by processorDual
ECC supported by processorNo

Memory

Internal memory16 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory32 GB
Memory clock speed2400 MHz

Storage

Total storage capacity2.25 TB
Storage mediaHDD+SSD
Total HDDs capacity2 TB
Number of HDDs installed1
HDD capacity2 TB
HDD size2.5"
HDD interfaceSATA III
Total SSDs capacity256 GB
Number of SSDs installed1
SSD capacity256 GB
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)

Graphics

Discrete graphics cardYes
Discrete graphics card modelNVIDIA® GeForce® GTX 1050
Discrete graphics card memory4 GB
On-board graphics cardYes
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1050 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x3E92
On-board graphics card OpenGL version4.5

Audio

Built-in speaker(s)Yes
Number of speakers4
RMS rated power16 W
Speakers manufacturerHarman Kardon

Camera

Built-in cameraYes

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
Antenna type2x2
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Thunderbolt 2 ports quantity0
Thunderbolt 3 ports quantity0
Thunderbolt ports quantity0
HDMI ports quantity2
VGA (D-Sub) ports quantity0
DisplayPorts quantity0
Mini DisplayPorts quantity0
Headphone outputs0
Microphone inNo
Combo headphone/mic portYes
DC-in jackYes

Design

Product colourBlack

Performance

Product typeAll-in-One PC

Software

Operating system installedWindows 10 Home
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID129940
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015A

Power

AC adapter power180 W

Pen

Pen includedNo

Weight & dimensions

Width (with stand)627 mm
Depth (with stand)199 mm
Height (with stand)523 mm
Weight (with stand)11 kg

Certificates

CertificationBSMI/CB/CE/FCC/UL/CCC

Sustainability

Sustainability certificatesENERGY STAR

Packaging content

Mouse includedYes
Keyboard includedYes
Warranty cardYes
AC adapter includedYes

Other features

3DNo
Autonomy modeNo
Detachable displayNo
