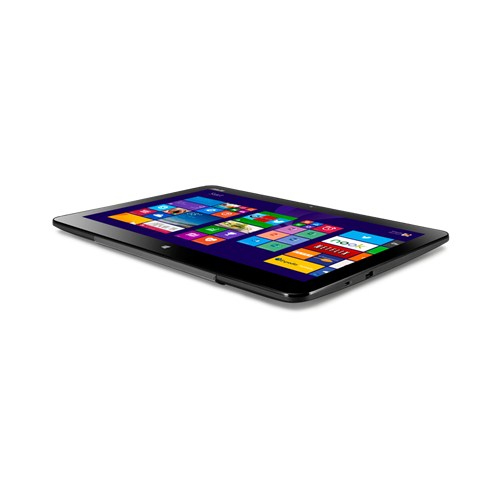

ASUS Portable AiO PT2001-B015Q All-in-One PC/workstation Intel® Core™ i3 i3-4010U

49.5 cm (19.5") 1600 x 900 pixels Touchscreen 4 GB 500 GB HDD NVIDIA® GeForce®

Model PT2001-B015QEAN 4716659745075

151 specifications

Display49.5 cm (19.5")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage500 GB
GraphicsNVIDIA® GeForce® 820M

See all specifications

Overview

Display: 49.5 cm (19.5")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 500 GB
Graphics: NVIDIA® GeForce® 820M

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: PT2001-B015Q
Part number: PT2001-B015Q
EAN / UPC: 4716659745075
Also known as: ASUS Portable AiO PT2001-B015Q All-in-One PC/workstation Intel® Core™ i3 i3-4010U 49.5 cm (19.5") 1600 x 900 pixels Touchscreen 4 GB 500 GB HDD NVIDIA® GeForce®

Specifications

151 specifications in 17 groups

Display

Specification	Value
Display diagonal	49.5 cm (19.5")
Display resolution	1600 x 900 pixels
Touchscreen	Yes
HD type	HD+
Full HD	No
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4010U
Processor cores	2
Processor threads	4
Processor frequency	1.7 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	15 W
Bus type	DMI2
FSB Parity	No
Maximum number of PCI Express lanes	12
PCI Express configurations	2x4, 4x1
PCI Express slots version	2.0
Processor code	SSSR16Q
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel® Core™ i3-4000 Mobile Series
Stepping	C0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® 820M
Discrete graphics card memory	1 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	2 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card ID	0xA16
On-board graphics card OpenGL version	4.3

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in microphone	Yes
Audio system	Sonic Master

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Total number of SATA connectors	4
Number of SATA III connectors	4

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel Smart Response Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75107
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
UART	Yes

Power

Specification	Value
AC adapter power	120 W

Weight & dimensions

Specification	Value
Width (with stand)	489 mm
Depth (with stand)	23 mm
Height (with stand)	309 mm
Weight (with stand)	3.3 kg
Depth (without stand)	12.3 mm

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Other features

Specification	Value
Autonomy mode	Yes
Battery life	5 h
Detachable display	No
Intel® Virtualization Technology (Intel® VT)	VT-x, VT-d
