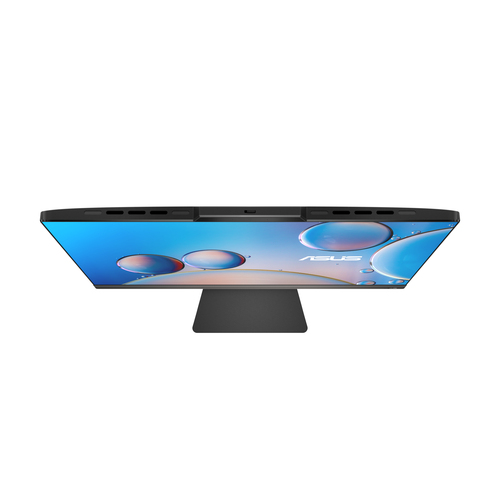

ASUS M3702WFAK-BPE047W AMD Ryzen™ 5 7520U

M3702WFAK-BPE047W AMD Ryzen™ 5 7520U

68.6 cm (27") 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB LPDDR5-SDRAM 1 TB SSD Windows 11 Home Wi-Fi 6E (802.1

Model M3702WFAK-BPE047WPart no. 90PT03M2-M00NN0EAN 197105681477

93 specifications

Display68.6 cm (27")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 5
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 5
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: M3702WFAK-BPE047W
Part number: 90PT03M2-M00NN0
EAN / UPC: 197105681477, 4711387681473
Also known as: ASUS M3702WFAK-BPE047W AMD Ryzen™ 5 7520U 68.6 cm (27") 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB LPDDR5-SDRAM 1 TB SSD Windows 11 Home Wi-Fi 6E (802.1

Specifications

93 specifications in 17 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	LCD
Anti-glare screen	Yes
RGB colour space	sRGB
Colour gamut	100%

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 7000 Series
Processor model	7520U
Processor cores	4
Processor boost frequency	4.3 GHz
Processor frequency	2.8 GHz
Processor cache	4 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Maximum internal memory	16 GB
Memory form factor	On-board

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 610M

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	Sonic Master

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	HD
Camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	1x1
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	2
HDMI version	1.4
Combo headphone/mic port	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black
Colour name	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Introduction year	2023

Performance

Specification	Value
Product type	All-in-One PC
Trusted Platform Module (TPM)	Yes
BIOS password	Yes
HDD user password	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V

Weight & dimensions

Specification	Value
Width (with stand)	613 mm
Depth (with stand)	217 mm
Height (with stand)	456 mm
Weight (with stand)	8.9 kg

Certificates

Specification	Value
Compliance certificates	REACH

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver

Packaging content

Specification	Value
Mouse connectivity	Wireless
Mouse included	Yes
Keyboard connectivity	Wireless
Keyboard included	Yes
Keyboard language	Belgian
Keyboard layout	AZERTY
