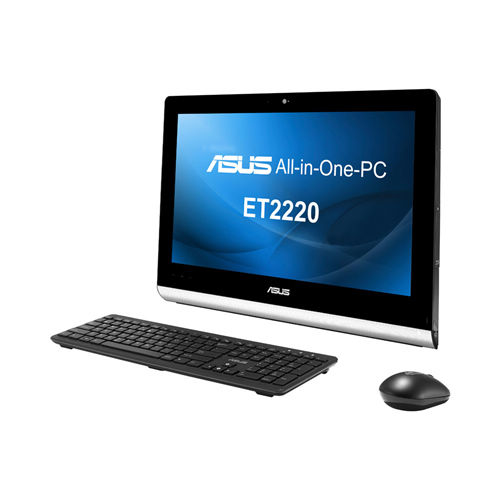

ET ET2220INTI-B046K Intel® Core™ i5 i5-3330

54.6 cm (21.5") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR3-SDRAM 2 TB HDD NVIDIA® GeForce® GT 610M

Model ET2220INTI-B046KPart no. 90PT00G1001910Q

138 specifications

Overview

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: ET2220INTI-B046K
Part number: 90PT00G1001910Q
Also known as: ASUS ET ET2220INTI-B046K Intel® Core™ i5 i5-3330 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR3-SDRAM 2 TB HDD NVIDIA® GeForce® GT 610M

138 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3330
Processor cores	4
Processor threads	4
Processor boost frequency	3.2 GHz
Processor frequency	3 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	77 W
Bus type	DMI
CPU multiplier (bus/core ratio)	30
FSB Parity	No
PCI Express configurations	1x16, 2x8
PCI Express slots version	3.0
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3300 Desktop Series
Tcase	67.4 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 610M
Discrete graphics card memory	1 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x152

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H61

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65509
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011D
