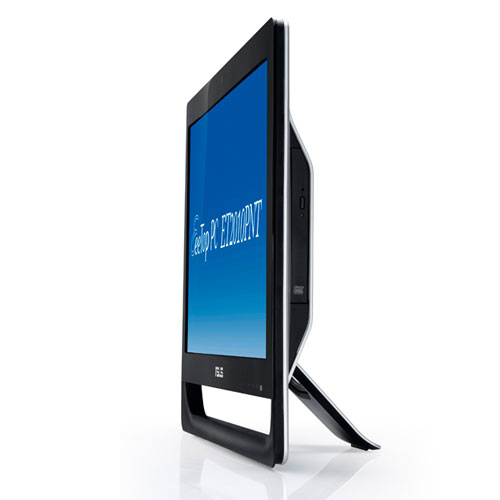

ASUS ET ET2010PNT Intel Atom® D510

50.8 cm (20") 2 GB DDR2-SDRAM NVIDIA® ION™ Windows 7 Home Premium Black

Model ET2010PNTPart no. ET2010PNT-B060EAN 610839310562

112 specifications

Display50.8 cm (20")
ProcessorIntel Atom®
Memory2 GB
GraphicsNVIDIA® ION™
OSWindows 7 Home Premium
ColourBlack

See all specifications

Overview

Display: 50.8 cm (20")
Processor: Intel Atom®
Memory: 2 GB
Graphics: NVIDIA® ION™
OS: Windows 7 Home Premium
Colour: Black

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: ET2010PNT
Part numbers: ET2010PNT-B060, ET2010PNT-B046E
EAN / UPC: 610839310562, 4719543310564
Also known as: ASUS ET ET2010PNT Intel Atom® D510 50.8 cm (20") 2 GB DDR2-SDRAM NVIDIA® ION™ Windows 7 Home Premium Black

Specifications

112 specifications in 17 groups

Display

Specification	Value
Display diagonal	50.8 cm (20")
Touch technology	Multi-touch

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBLA
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
Memory clock speed	800 MHz

Storage

Specification	Value
Number of HDDs installed	1
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® ION™
On-board graphics card	Yes

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
Firewire (IEEE 1394) ports	0
PS/2 ports quantity	0
Serial ports quantity	0

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Motherboard chipset	Intel® NM10 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	43098
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Power

Specification	Value
AC adapter input voltage	19 V

Weight & dimensions

Specification	Value
Width (with stand)	496.8 mm
Depth (with stand)	54.3 mm
Height (with stand)	373.7 mm
Weight (with stand)	6 kg

Packaging content

Specification	Value
Drivers included	Yes

Other features

Specification	Value
Graphics card family	NVIDIA
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display	LCD
Display included	Yes
Maximum number of SMP processors	1
Networking features	Gigabit Ethernet
Number of processors installed	1
Parallel ports quantity	0
Platform	PC
Power supply	65 W
Power supply type	AC - DC
Speakers	2 x 2W
Intel segment tagging	Enterprise, Small Business
