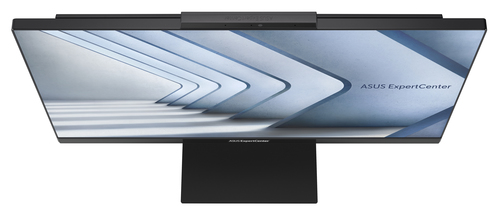

ASUS ExpertCenter E5 AiO 24 E5402WVARK-BPC005X Intel Core 5 120U

ExpertCenter E5 AiO 24 E5402WVARK-BPC005X Intel Core 5 120U

60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-F

Model E5402WVARK-BPC005XPart no. 90PT03J5-M027D0EAN 4711387508800

99 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel Core 5
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel Core 5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: E5402WVARK-BPC005X
Part number: 90PT03J5-M027D0
EAN / UPC: 4711387508800
Also known as: ASUS ExpertCenter E5 AiO 24 E5402WVARK-BPC005X Intel Core 5 120U 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-F

Specifications

99 specifications in 15 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	LCD
Anti-glare screen	Yes
RGB colour space	sRGB
Colour gamut	100%

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core 5
Processor generation	Intel Core (Series 1)
Processor model	120U
Processor cores	10
Processor boost frequency	5 GHz
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	55 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots type	SO-DIMM
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	HD
Camera resolution	1280 x 720 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	0
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1b
DisplayPorts quantity	1
Headphone outputs	1
Combo headphone/mic port	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black
Colour name	Black
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Product type	All-in-One PC
Market positioning	Business
Trusted Platform Module (TPM)	Yes
Windows Hello	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Power

Specification	Value
AC adapter power	120 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	20 V

Weight & dimensions

Specification	Value
Width (with stand)	541 mm
Depth (with stand)	426 mm
Height (with stand)	201 mm
Weight (with stand)	8.9 kg

Packaging content

Specification	Value
Mouse connectivity	Wireless
Mouse included	Yes
Keyboard connectivity	Wireless
Keyboard included	Yes
