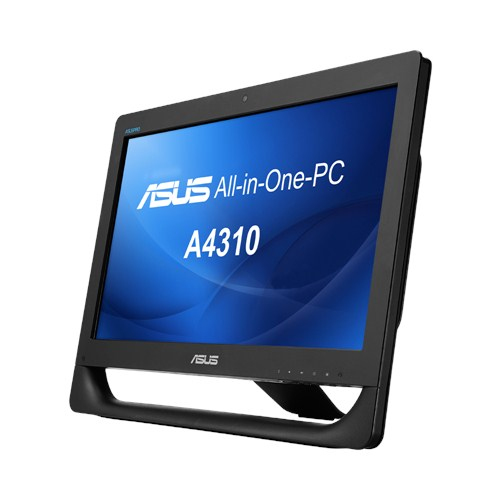

ASUSPRO A4310 Intel® Celeron® G G1840T

50.8 cm (20") 1600 x 900 pixels All-in-One PC 4 GB DDR3L-SDRAM 500 GB HDD FreeDOS Wi-Fi 4 (802.11n) Black

Model A4310Part no. 90PT00X1-M03220EAN 886227807369

146 specifications

Display50.8 cm (20")
Resolution1600 x 900 pixels
ProcessorIntel® Celeron® G
Memory4 GB
Storage500 GB
SpeedWi-Fi 4 (802.11n)

See all specifications

Overview

Display: 50.8 cm (20")
Resolution: 1600 x 900 pixels
Processor: Intel® Celeron® G
Memory: 4 GB
Storage: 500 GB
Speed: Wi-Fi 4 (802.11n)

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: A4310
Part numbers: 90PT00X1-M03220, 90PT00X1-M03230
EAN / UPC: 886227807369, 4716659807360, 4716659807377
Also known as: ASUSPRO A4310 Intel® Celeron® G G1840T 50.8 cm (20") 1600 x 900 pixels All-in-One PC 4 GB DDR3L-SDRAM 500 GB HDD FreeDOS Wi-Fi 4 (802.11n) Black

Specifications

146 specifications in 18 groups

Display

Specification	Value
Display diagonal	50.8 cm (20")
Display resolution	1600 x 900 pixels
HD type	HD+
Full HD	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® G
Processor model	G1840T
Processor cores	2
Processor threads	2
Processor frequency	2.5 GHz
Processor cache	2 MB
Processor cache type	L3
Processor socket	LGA 1150 (Socket H3)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	35 W
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR1KA
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor G1000 Series for Desktop
Stepping	C0
Tcase	66.4 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	8 GB
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
HDD interface	SATA
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	11.1

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H81

Software

Specification	Value
Operating system installed	FreeDOS
Trial software	Anti-Virus, MS Office
Bundled software	Adobe Acrobat Reader Adobe Flash Player ASUS WebStorage Skype

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	80801
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013A
