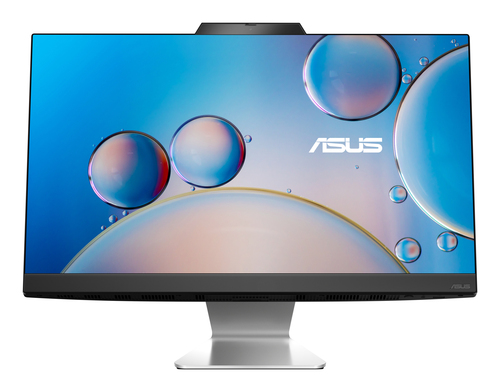

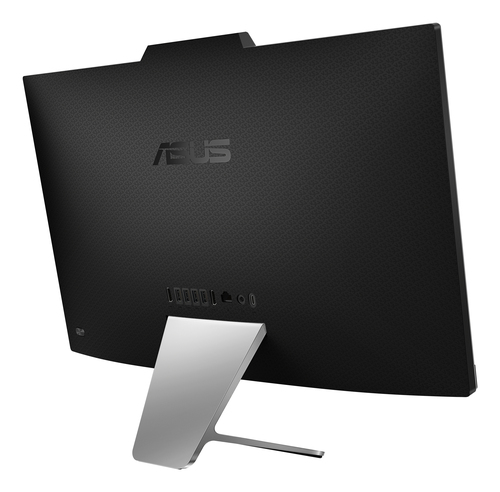

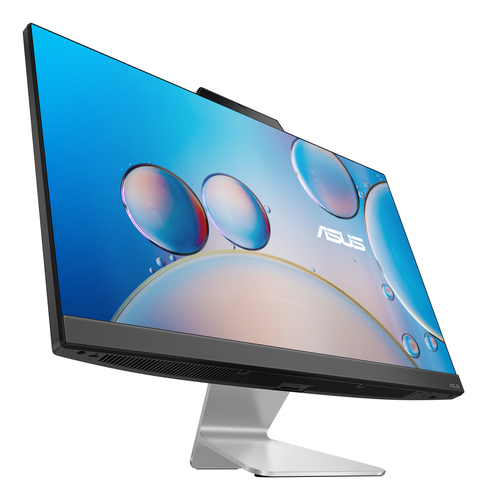

Zen AiO 24 A3402WVAK-BPC077W Intel Core 5 120U
60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Home Wi-Fi 6E (802.11a
Model A3402WVAK-BPC077WPart no. 90PT03T2-M00YB0EAN 4711387611654
85 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel Core 5
- Memory16 GB
- Storage1 TB
- GraphicsNot available
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel Core 5
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- Not available
- Brand
- ASUS
- Category
- All-in-One PCs/Workstations
- Model
- A3402WVAK-BPC077W
- Part number
- 90PT03T2-M00YB0
- EAN / UPC
- 4711387611654
- Also known as
- ASUS Zen AiO 24 A3402WVAK-BPC077W Intel Core 5 120U 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Home Wi-Fi 6E (802.11a
Specifications
85 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| RGB colour space | sRGB |
| Colour gamut | 100% |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core 5 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 120U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor frequency | 1.4 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots type | SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Audio system | Sonic Master |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Camera HD type | HD |
| Camera resolution | 1280 x 720 pixels |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Power
| Specification | Value |
|---|---|
| AC adapter power | 90 W |
| AC adapter output voltage | 19 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 539 mm |
| Depth (with stand) | 165 mm |
| Height (with stand) | 423 mm |
| Weight (with stand) | 5.4 kg |
| Package width | 195 mm |
| Package depth | 590 mm |
| Package height | 517 mm |
| Package weight | 5.65 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wireless |
| Mouse included | Yes |
| Keyboard connectivity | Wireless |
| Keyboard included | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
