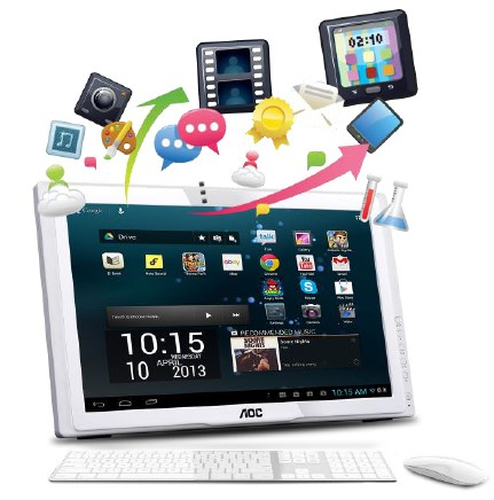

AOC A2472PW4T/BK All-in-One PC/workstation NVIDIA Tegra T33

AOC A2472PW4T/BK All-in-One PC/workstation NVIDIA Tegra T33

59.9 cm (23.6") 1920 x 1080 pixels Touchscreen 2 GB DDR3-SDRAM 8 GB Flash Android 4.2 Wi-Fi 4 (802.1

Model A2472PW4T/BKEAN 4038986144230

93 specifications

Display59.9 cm (23.6")
Resolution1920 x 1080 pixels
ProcessorNVIDIA Tegra
Memory2 GB
Storage8 GB
GraphicsNot available

See all specifications

Overview

Display: 59.9 cm (23.6")
Resolution: 1920 x 1080 pixels
Processor: NVIDIA Tegra
Memory: 2 GB
Storage: 8 GB
Graphics: Not available

Brand: AOC
Category: All-in-One PCs/Workstations
Model: A2472PW4T/BK
Part number: A2472PW4T/BK
EAN / UPC: 4038986144230
Also known as: AOC A2472PW4T/BK All-in-One PC/workstation NVIDIA Tegra T33 59.9 cm (23.6") 1920 x 1080 pixels Touchscreen 2 GB DDR3-SDRAM 8 GB Flash Android 4.2 Wi-Fi 4 (802.1

Specifications

93 specifications in 18 groups

Display

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Touch technology	Dual-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Viewable size, horizontal	47.7 cm
Viewable size, vertical	26.8 cm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Colour depth	8 bit
Pixel frequency	148.5 MHz
Panel type	IPS
Response time	5 ms
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Display number of colours	16.78 million colours
Maximum refresh rate	60 Hz
Pixel pitch	0.24825 x 0.24825 mm
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Tilt angle range	15 - 57°

Processor

Specification	Value
Processor manufacturer	NVIDIA
Processor family	NVIDIA Tegra
Processor model	T33
Processor cores	4
Processor frequency	1.6 GHz

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	8 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	SDHC

Graphics

Specification	Value
Discrete graphics card model	Not available

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	No
Microphone in	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington

Software

Specification	Value
Operating system installed	Android 4.2
Operating system architecture	32-bit

Processor special features

Specification	Value
Intel Smart Connect Technology	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Power consumption (off)	0.5 W
Power consumption (standby)	35 W
Power consumption (typical)	50 W

Weight & dimensions

Specification	Value
Width (with stand)	606.7 mm
Depth (with stand)	49.4 mm
Height (with stand)	379.4 mm
Weight (with stand)	6 kg
Package weight	8.5 kg

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	ISO

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
Warranty card	Yes
Cables included	AC, HDMI, USB

Other features

Specification	Value
Mean time between failures (MTBF)	50000 h
EuP compliance	Yes
Backlight type	W-LED
