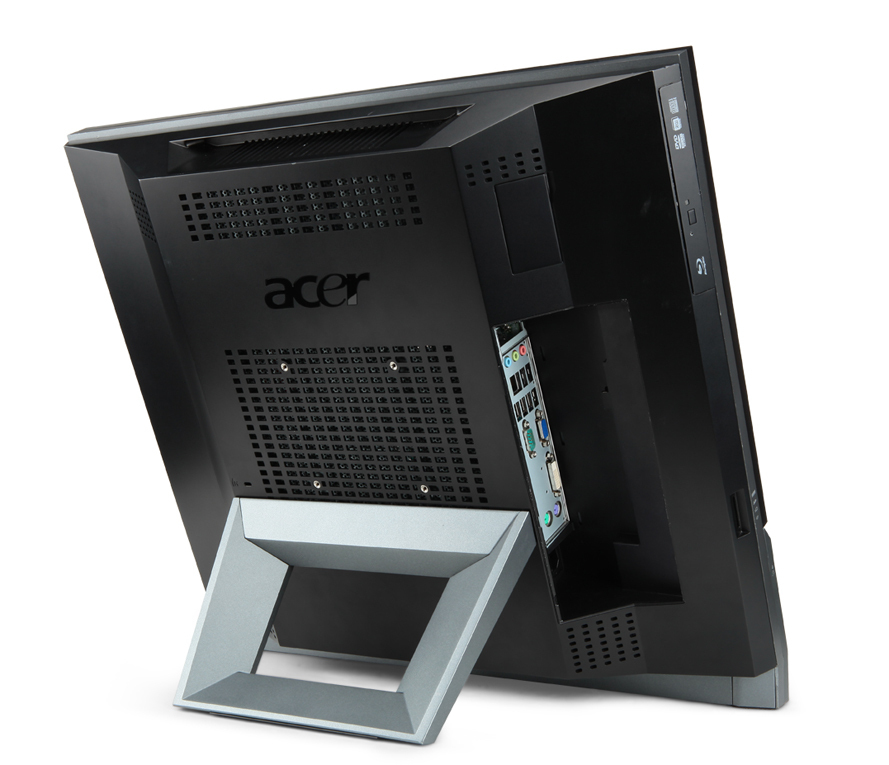

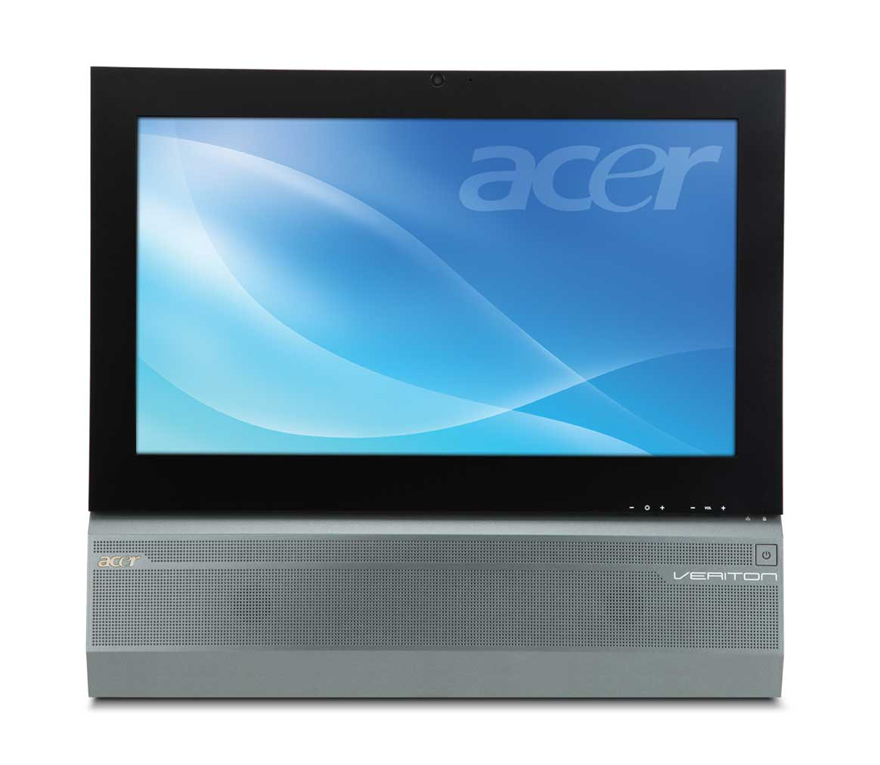

Acer Veriton Z431G-Ui5650W Intel® Core™ i5 i5-650

54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 640 GB Intel® HD Graphics Windows 7 Professiona

Model Z431G-Ui5650WPart no. PQ.VBT03.018EAN 884483976447

112 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Z431G-Ui5650W
Part number: PQ.VBT03.018
EAN / UPC: 884483976447
Also known as: Acer Veriton Z431G-Ui5650W Intel® Core™ i5 i5-650 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 640 GB Intel® HD Graphics Windows 7 Professiona

112 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-650
Processor cores	2
Processor threads	4
Processor boost frequency	3.46 GHz
Processor frequency	3.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	LGA 1156 (Socket H)
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	73 W
Bus type	DMI
CPU multiplier (bus/core ratio)	24
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	382 M
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processing Die size	81 mm²
Processor codename	Clarkdale
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-600 Desktop Series
Stepping	C2
Tcase	72.6 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	640 GB
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MMCmicro, MS Duo, MS PRO, SD, xD

Specification	Value
Discrete graphics card model	Intel® HD Graphics
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz

Specification	Value
Built-in camera	Yes

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes

Specification	Value
Product colour	Black, Silver

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43546
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
