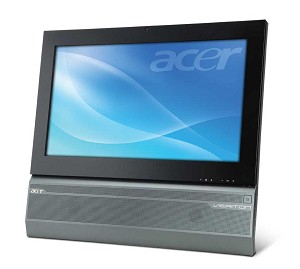

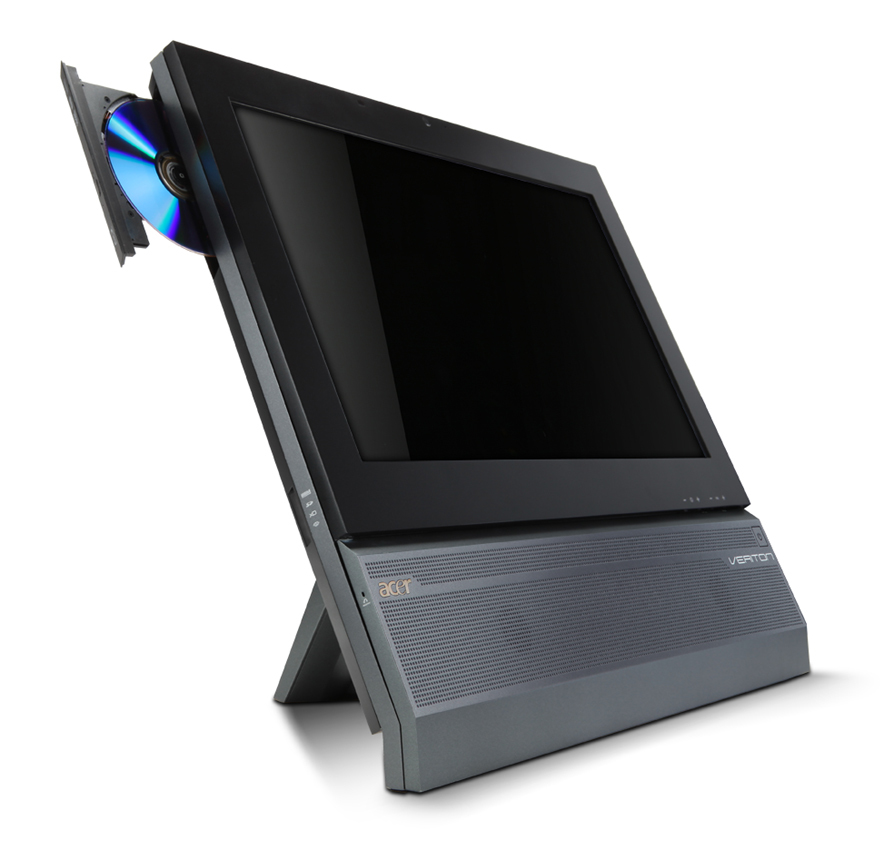

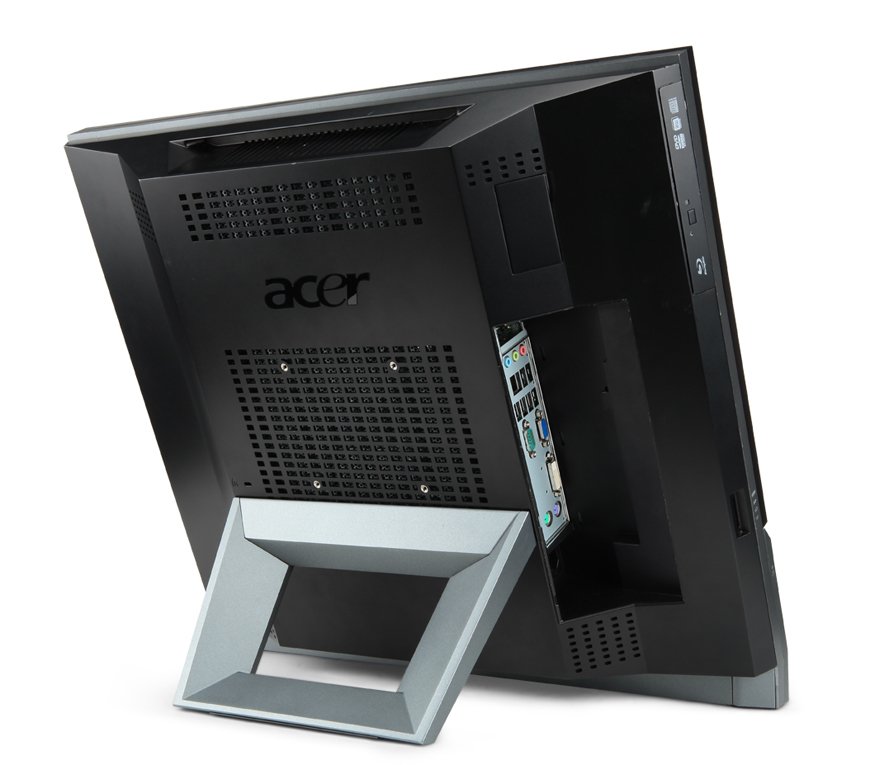

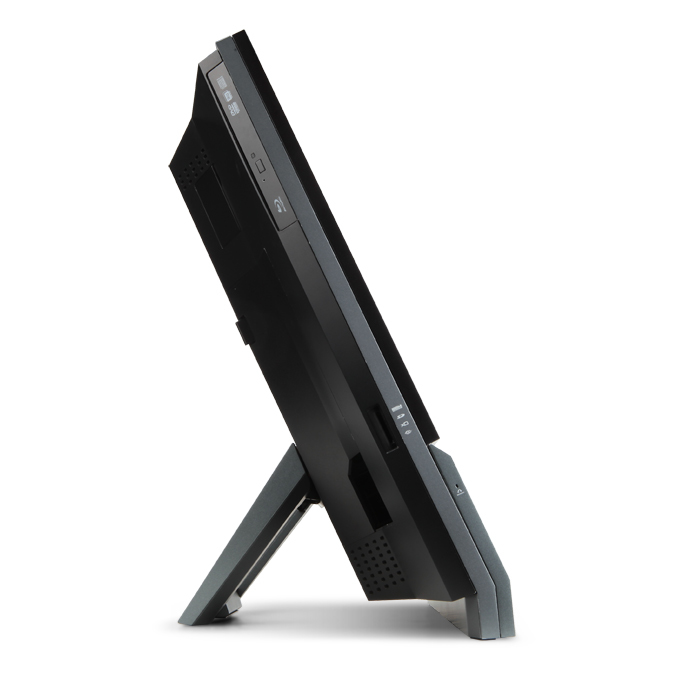

Acer Veriton Z431G-AIO Intel® Core™ i5 i5-650

54.6 cm (21.5") 1920 x 1080 pixels 4 GB DDR3-SDRAM 500 GB Intel® HD Graphics Windows 7 Home Premium Black, Silver

Model Z431G-AIOPart no. PQ.VBTE2.002EAN 4718235093228

130 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsIntel® HD Graphics

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: Intel® HD Graphics

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Z431G-AIO
Part number: PQ.VBTE2.002
EAN / UPC: 4718235093228
Also known as: Acer Veriton Z431G-AIO Intel® Core™ i5 i5-650 54.6 cm (21.5") 1920 x 1080 pixels 4 GB DDR3-SDRAM 500 GB Intel® HD Graphics Windows 7 Home Premium Black, Silver

Specifications

130 specifications in 16 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-650
Processor cores	2
Processor threads	4
Processor boost frequency	3.46 GHz
Processor frequency	3.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	LGA 1156 (Socket H)
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	73 W
Bus type	DMI
CPU multiplier (bus/core ratio)	24
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	382 M
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processing Die size	81 mm²
Processor codename	Clarkdale
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-600 Desktop Series
Stepping	C2
Tcase	72.6 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory clock speed	1333 MHz
Memory layout (slots x size)	2 x 2 GB

Storage

Specification	Value
Total storage capacity	500 GB
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MMCmicro, MS Duo, MS PRO, MS PRO Duo, SD, xD

Graphics

Specification	Value
Discrete graphics card model	Intel® HD Graphics
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz

Audio

Specification	Value
Built-in microphone	Yes
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	Yes
Headphone outputs	3
Microphone in	Yes
Firewire (IEEE 1394) ports	0
PS/2 ports quantity	2
eSATA ports quantity	0

Design

Specification	Value
Product colour	Black, Silver
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Motherboard chipset	Intel® H57 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43546
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No

Weight & dimensions

Specification	Value
Width (with stand)	549 mm
Depth (with stand)	129 mm
Height (with stand)	499 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display	Full HD
Display included	Yes
Modem (RJ-11) ports	0
Networking features	WLAN, Gigabit Ethernet
Number of processors installed	1
Parallel ports quantity	0
Power supply	220 W
TV tuner integrated	No
Wake-on-LAN ready	Yes
Intel segment tagging	Enterprise, Small Business
