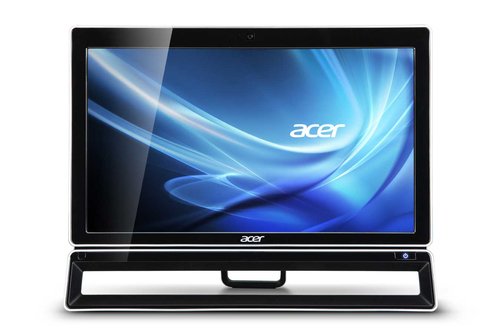

Acer Veriton Z2620G-Ui52400W Intel® Core™ i5 i5-2400S

50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 500 GB NVIDIA® GeForce® GT 520 Windows 7 Professional Blac

Model Z2620G-Ui52400WPart no. PQ.VDGP3.001EAN 163120473656

139 specifications

Display50.8 cm (20")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNVIDIA® GeForce® GT 520

See all specifications

Overview

Display: 50.8 cm (20")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: NVIDIA® GeForce® GT 520

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Z2620G-Ui52400W
Part number: PQ.VDGP3.001
EAN / UPC: 163120473656, 886541261854
Also known as: Acer Veriton Z2620G-Ui52400W Intel® Core™ i5 i5-2400S 50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 500 GB NVIDIA® GeForce® GT 520 Windows 7 Professional Blac

Specifications

139 specifications in 17 groups

Display

Specification	Value
Display diagonal	50.8 cm (20")
Display resolution	1600 x 900 pixels
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2400S
Processor cores	4
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	2.5 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	31
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-2400 Desktop Series
Stepping	D2
Tcase	69.1 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	7200 RPM
HDD interface	SATA II
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 520
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
Firewire (IEEE 1394) ports	0
eSATA ports quantity	0

Design

Specification	Value
Product colour	Black, Silver

Performance

Specification	Value
Motherboard chipset	Intel® H61

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Bundled software	Microsoft Office Starter Bing Bar Windows Live Essentials

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52208
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	500 mm
Depth (with stand)	61 mm
Height (with stand)	345 mm

Certificates

Specification	Value
Certification	WEEE

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Remote control included	No

Other features

Specification	Value
Graphics card family	NVIDIA
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Dimensions (WxDxH)	500 x 61 x 345 mm
Display	LCD
Display included	Yes
Floppy drive installed	No
Internal modem	No
Modem (RJ-11) ports	0
Networking topology	10,100,1000
Number of processors installed	1
Power supply	135 W
Power supply type	AC
TV tuner integrated	No
Wireless technology	WLAN
Intel segment tagging	Enterprise, Small Business
