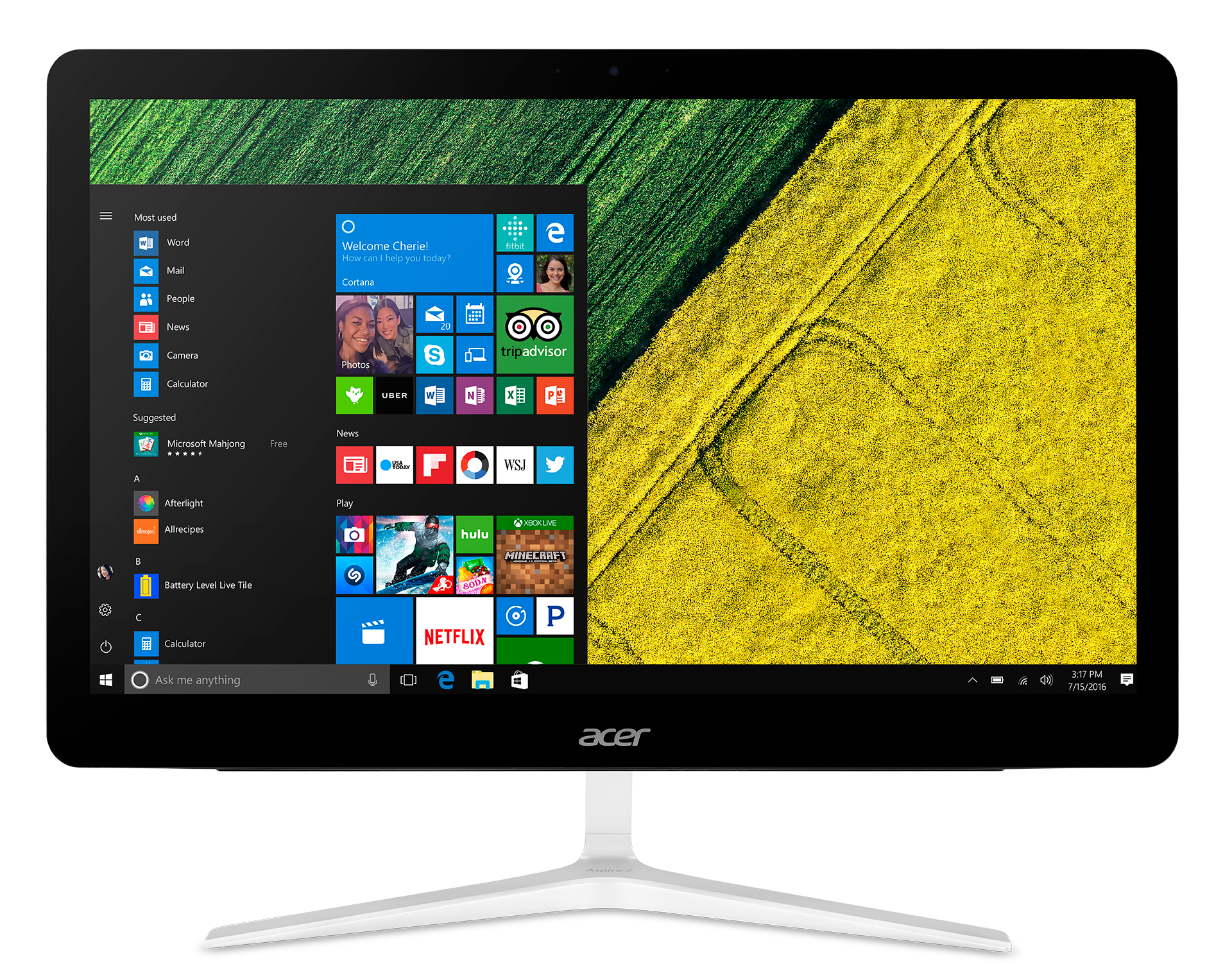

Aspire Z24-880 Intel® Core™ i7 i7-7700T

60.5 cm (23.8") 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR4-SDRAM 1.25 TB HDD+SSD Windows 10 Home Black

Model Z24-880Part no. DQ.B8VEQ.006EAN 4713883198691

138 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Z24-880
Part numbers: DQ.B8VEQ.006, DQ.B8TEQ.001, DQ.B8UEC.004, DQ.B8VEG.006, DQ.B8VER.003, DQ.B8VER.009 +34 more
EAN / UPC: 4713883198691, 4713883424288, 4713883186957, 4713883370905 +25 more
Also known as: Acer Aspire Z24-880 Intel® Core™ i7 i7-7700T 60.5 cm (23.8") 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR4-SDRAM 1.25 TB HDD+SSD Windows 10 Home Black

138 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7700T
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	2.9 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	LGA 1151 (Socket H4)
System bus rate	8 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	35 W
Configurable TDP-down frequency	1.9 GHz
Configurable TDP-down	25 W
Bus type	DMI3
Maximum number of PCI Express lanes	16
Number of QPI links	0
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor code	SR339
Processor codename	Kaby Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-7700 Desktop series
Stepping	B0
Tjunction	80 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Specification	Value
Total storage capacity	1.25 TB
Storage media	HDD+SSD
Number of storage drives installed	2
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	5400 RPM
HDD interface	SATA
Number of SSDs installed	1
SSD capacity	256 GB
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	5912
On-board graphics card OpenGL version	4.4

Specification	Value
Built-in camera	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Specification	Value
Product colour	Black, White

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	97122
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A
