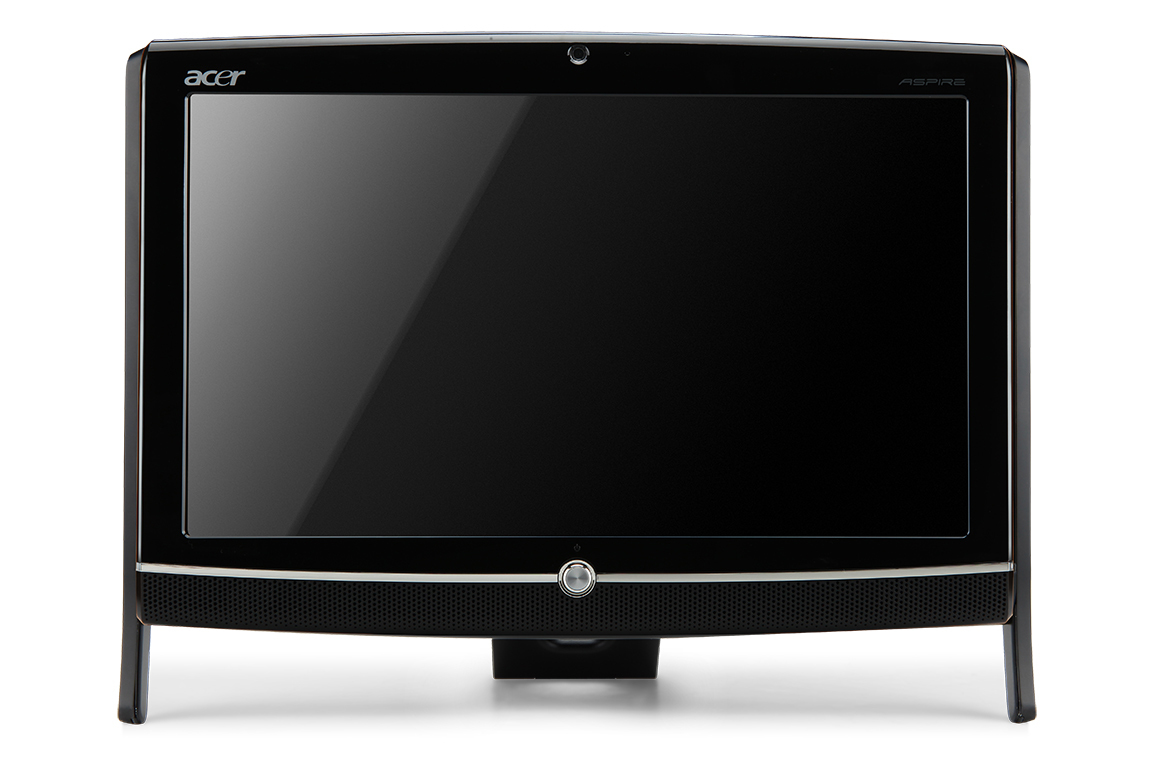

Acer Aspire Z1650 Intel Atom® D525

47 cm (18.5") 1366 x 768 pixels 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Black

Model Z1650Part no. DO.SJUET.002EAN 4712196070243

117 specifications

Display47 cm (18.5")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage500 GB
OSWindows 7 Home Premium

See all specifications

Overview

Display: 47 cm (18.5")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 500 GB
OS: Windows 7 Home Premium

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Z1650
Part number: DO.SJUET.002
EAN / UPC: 4712196070243
Also known as: Acer Aspire Z1650 Intel Atom® D525 47 cm (18.5") 1366 x 768 pixels 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Black

Specifications

117 specifications in 17 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	Not supported
Full HD	No
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor cores	2
Processor threads	4
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3 800 (SODIMM only); DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	4 GB
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO Duo, SD

Graphics

Specification	Value
On-board graphics card	Yes

Camera

Specification	Value
Built-in camera	Yes

Optical drive

Specification	Value
Disc types supported	CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Motherboard chipset	Intel® NM10 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	32-bit

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	49490
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Power

Specification	Value
AC adapter power	65 W

Weight & dimensions

Specification	Value
Width (with stand)	484 mm
Depth (with stand)	54.6 mm
Height (with stand)	381 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Case colour	Black
Compatible processor series	Intel Atom®
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Display	LCD
Display diagonal (metric)	47 cm
Display included	Yes
Ethernet interface type	Gigabit Ethernet
HDMI	Yes
Networking features	Gigabit Ethernet
Storage drive interface	Serial ATA
Supported HDD interfaces	Serial ATA
