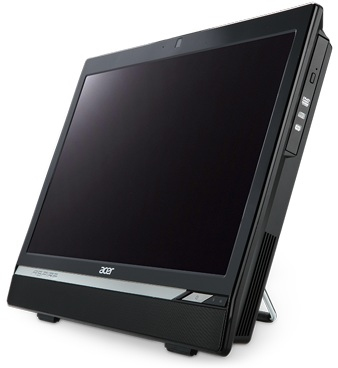

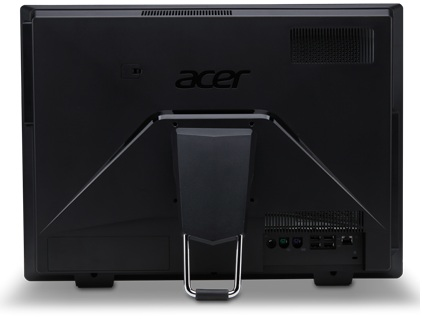

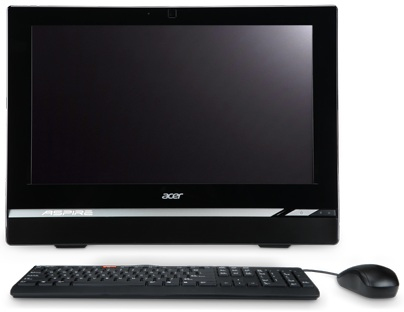

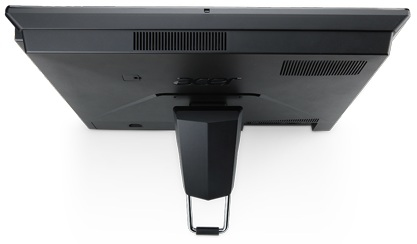

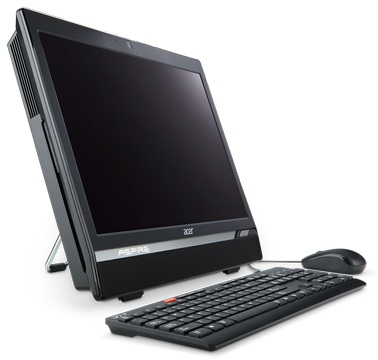

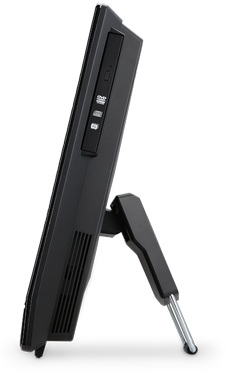

Aspire Z1620-ms308 Intel® Pentium® G645

50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 1 TB HDD Windows 8 Wi-Fi 4 (802.11n) Black

Model Z1620-ms308Part no. DQ.SMAAL.005EAN 886541811530

118 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Z1620-ms308
Part number: DQ.SMAAL.005
EAN / UPC: 886541811530
Also known as: Acer Aspire Z1620-ms308 Intel® Pentium® G645 50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 1 TB HDD Windows 8 Wi-Fi 4 (802.11n) Black

118 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	G645
Processor cores	2
Processor threads	2
Processor frequency	2.9 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	29
FSB Parity	No
PCI Express slots version	2.0
Processor code	SR0RS
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Stepping	Q0
Tcase	69.1 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO Duo, SD, SDHC, xD

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Specification	Value
Built-in camera	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Specification	Value
Product colour	Black

Specification	Value
Motherboard chipset	Intel® H61 Express

Specification	Value
Operating system installed	Windows 8

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	69116
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
