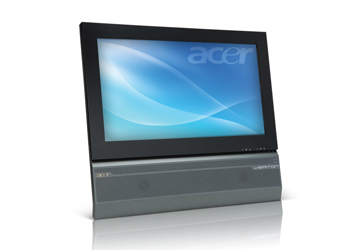

VZ291G-SD525S Intel Atom® D525

47 cm (18.5") 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB Windows 7 Starter Black, Grey

Model VZ291G-SD525SPart no. PQ.VD608.005

108 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: VZ291G-SD525S
Part number: PQ.VD608.005
Also known as: Acer VZ291G-SD525S Intel Atom® D525 47 cm (18.5") 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB Windows 7 Starter Black, Grey

108 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor cores	2
Processor threads	4
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBXC
Processor codename	Pineview
Processor front side bus	667 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3 800 (SODIMM only); DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Specification	Value
Product colour	Black, Grey

Specification	Value
Operating system installed	Windows 7 Starter
Operating system architecture	32-bit

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	49490
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Display	LCD TFT
Display included	Yes
Networking features	Gigabit Ethernet
Number of processors installed	1
PCI slots	1
Parallel ports quantity	0
Power supply	65 W
Wireless technology	Wi-Fi
