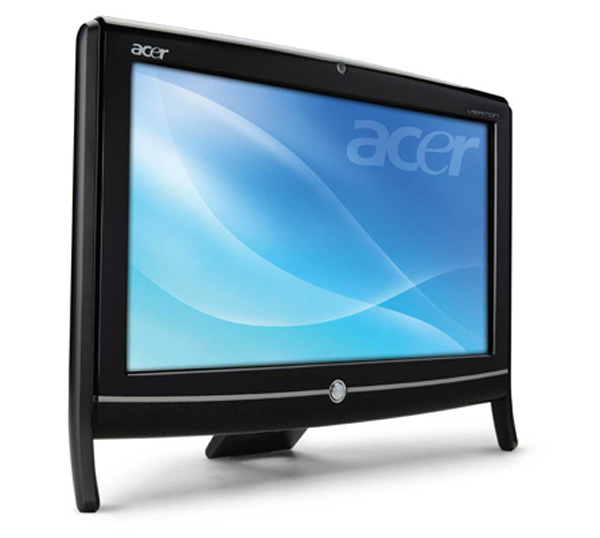

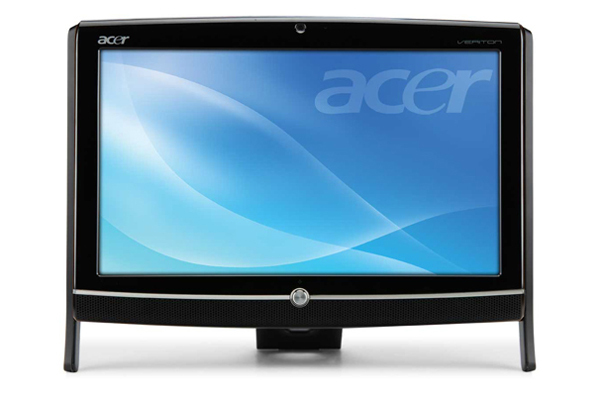

VZ290G-UD525W Intel Atom® D525

47 cm (18.5") 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB Intel® GMA 3150 Windows 7 Professional Black, Silver

Model VZ290G-UD525WPart no. PQ.VBK03.007

110 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: VZ290G-UD525W
Part number: PQ.VBK03.007
Also known as: Acer VZ290G-UD525W Intel Atom® D525 47 cm (18.5") 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB Intel® GMA 3150 Windows 7 Professional Black, Silver

110 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor cores	2
Processor threads	4
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3 800 (SODIMM only); DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Specification	Value
Discrete graphics card model	Intel® GMA 3150
Discrete graphics memory type	GDDR3
On-board graphics card	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Firewire (IEEE 1394) ports	0
PS/2 ports quantity	2
Serial ports quantity	0

Specification	Value
Product colour	Black, Silver

Specification	Value
Motherboard chipset	Intel® NM10 Express

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	49490
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Specification	Value
Certification	Energy Star

Specification	Value
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Compatible operating systems	Windows 7 Professional
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Display	TFT
Display included	Yes
Mac compatibility	No
Networking features	Gigabit Ethernet
Number of processors installed	1
Parallel ports quantity	0
Platform	PC
Power supply	65 W
