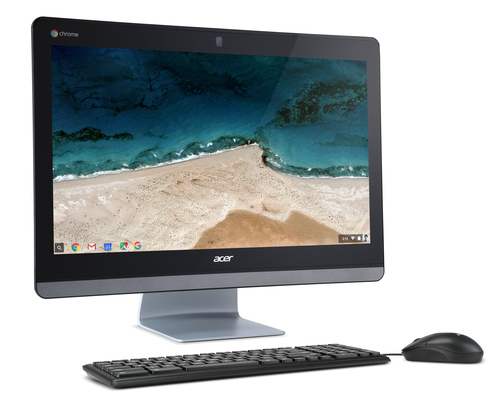

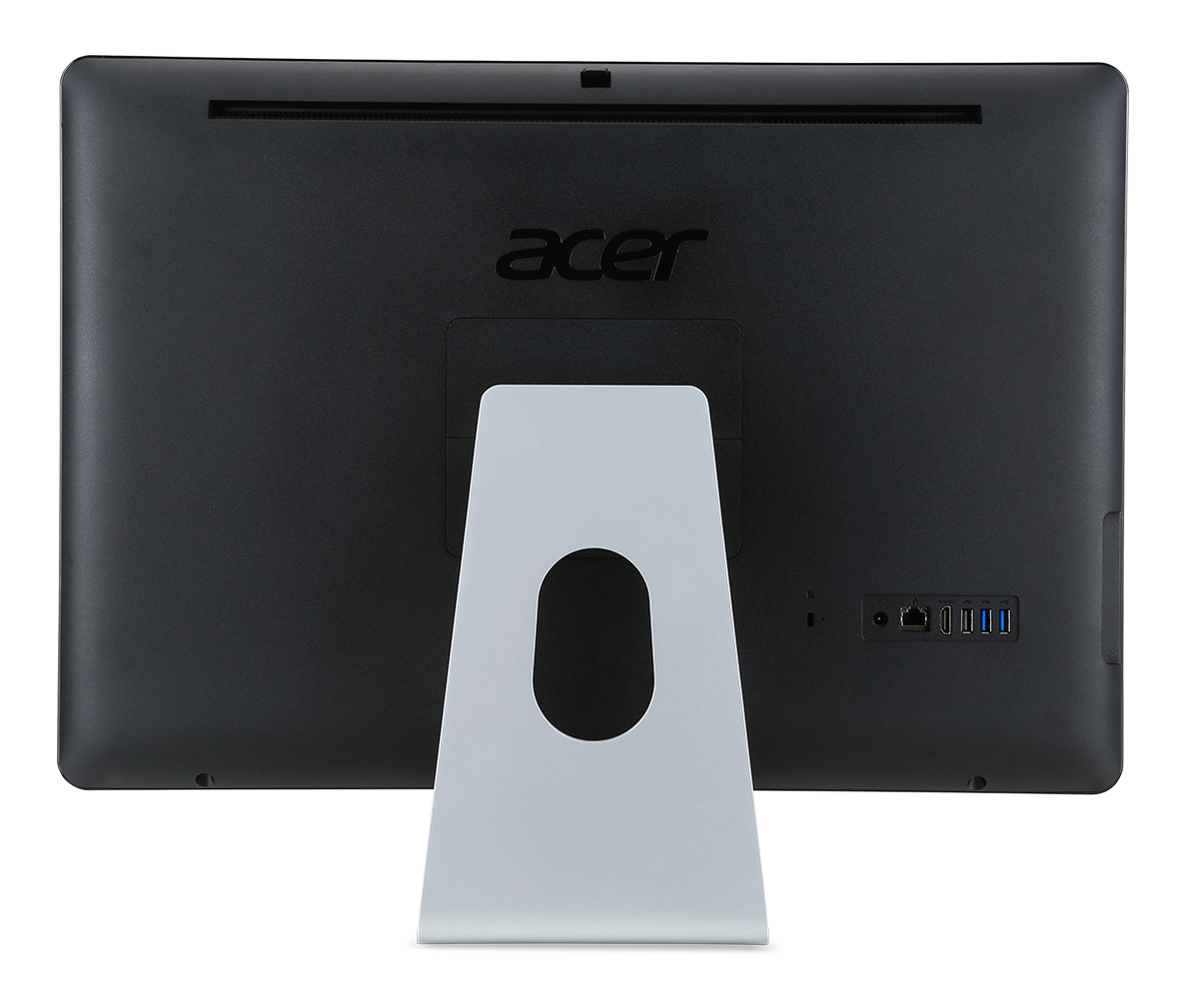

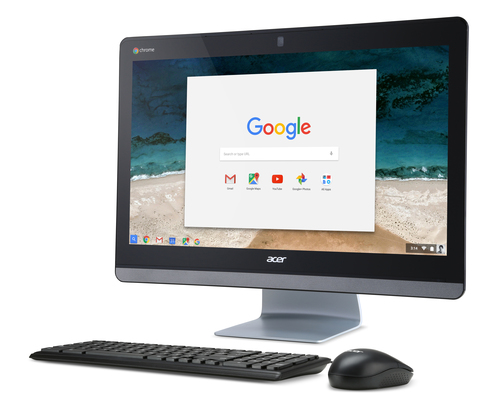

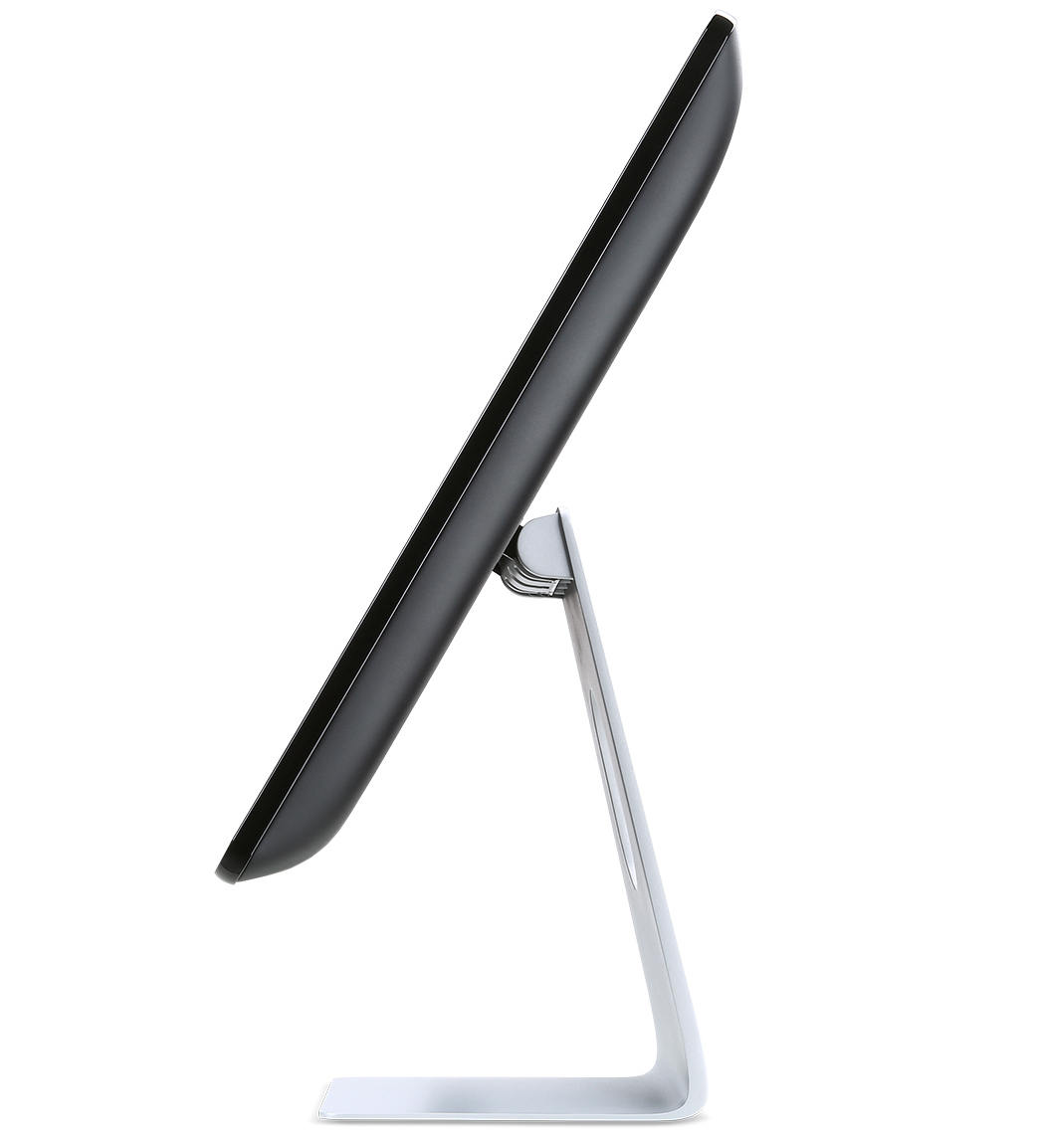

Acer Chromebase CA24I

Model Chromebase CA24IPart no. DQ.Z0DEH.002EAN 4713883603515

143 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Celeron®
Memory4 GB
Storage16 GB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Celeron®
Memory: 4 GB
Storage: 16 GB
Graphics: Not available

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Chromebase CA24I
Part numbers: DQ.Z0DEH.002, DQ.Z0EEH.001, DQ.Z0DEH.001, DQ.Z0EEH.002
EAN / UPC: 4713883603515, 4713392622168, 4713392622151, 4713883603522
Also known as: Acer Chromebase 24 CA24I Intel® Celeron® 3215U 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 4 GB DDR3L-SDRAM 16 GB SSD ChromeOS Wi-Fi 5 (802.11ac) Black, Si

Specifications

143 specifications in 20 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Screen shape	Flat
Tilt angle range	-5 - 30°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	3215U
Processor cores	2
Processor threads	2
Processor frequency	1.7 GHz
Processor cache	2 MB
Processor cache type	L3
Processor socket	BGA 1168
System bus rate	5 GT/s
Thermal Design Power (TDP)	15 W
Configurable TDP-down frequency	0.6 GHz
Configurable TDP-down	10 W
Bus type	DMI2
Maximum number of PCI Express lanes	12
PCI Express configurations	2x4, 4x1
PCI Express slots version	2.0
Processor code	SR243
Processor codename	Broadwell
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor 3000 series for Mobile
Stepping	F0
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	4 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Memory layout (slots x size)	2 x 2 GB

Storage

Specification	Value
Total storage capacity	16 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	16 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	850 MHz
On-board graphics card DirectX version	11.2/12

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth Low Energy (BLE)	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Black, Silver

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	ChromeOS

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Response Technology version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	84810
Processor package size	40 x 24 x 1.3 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	65 W

Pen

Specification	Value
Pen included	No

Weight & dimensions

Specification	Value
Width (with stand)	582.8 mm
Depth (with stand)	36 mm
Height (with stand)	401.2 mm
Weight (with stand)	8 kg

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Keyboard layout	QWERTY

Other features

Specification	Value
3D	No
Autonomy mode	No
Detachable display	No
