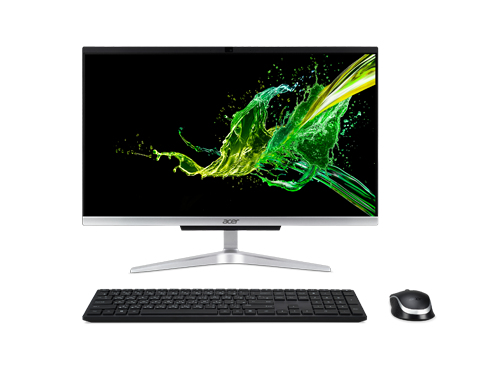

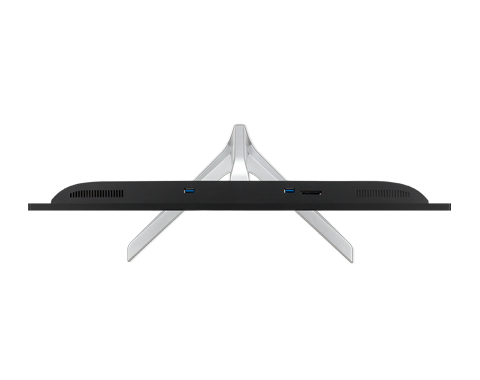

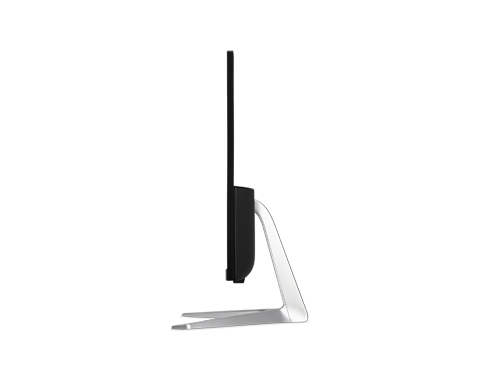

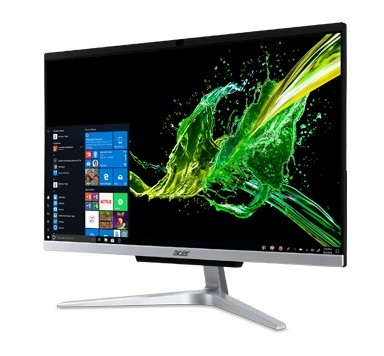

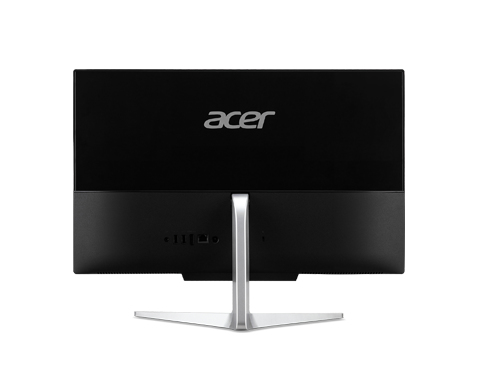

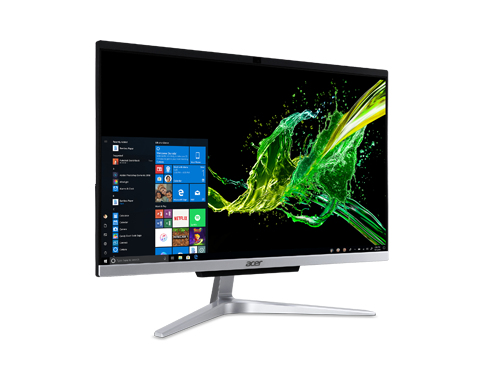

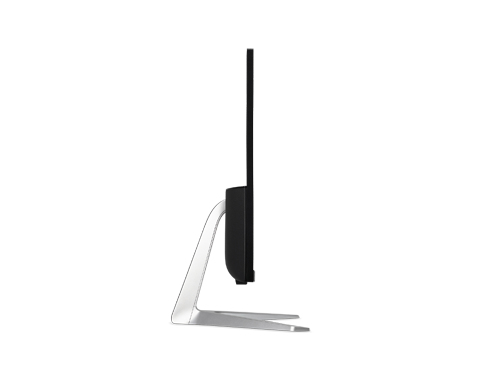

Aspire C22-960 Intel® Core™ i3 i3-10110U

54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac) Black, Silver

Model C22-960Part no. DQ.BD8EK.001EAN 4710180685947

107 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: C22-960
Part numbers: DQ.BD8EK.001, DQ.BD8ER.00C, DQ.BD9EK.001, DQ.BD9ER.00C
EAN / UPC: 4710180685947, 4710180662801
Also known as: Acer Aspire C22-960 Intel® Core™ i3 i3-10110U 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac) Black, Silver

107 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	10th gen Intel® Core™ i3
Processor model	i3-10110U
Processor cores	2
Processor threads	4
Processor boost frequency	4.1 GHz
Processor frequency	2.1 GHz
Processor cache	4 MB
Processor socket	BGA 1528
System bus rate	4 GT/s
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.6 GHz
Configurable TDP-up	25 W
Configurable TDP-down frequency	0.8 GHz
Configurable TDP-down	10 W
Maximum number of PCI Express lanes	16
PCI Express configurations	1x4, 2x2, 1x2+2x1, 4x1
PCI Express slots version	3.0
Processor codename	Comet Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Tjunction	100 °C
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	2666,2133 MHz
Memory bandwidth supported by processor (max)	41.66 GB/s

Specification	Value
Internal memory	4 GB
Maximum internal memory	32 GB

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x9B41
On-board graphics card OpenGL version	4.5
Number of execution units	23

Specification	Value
Ethernet LAN (RJ-45) ports	0
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
HDMI ports quantity	1
Headphone outputs	1
Microphone in	Yes

Specification	Value
Product colour	Black, Silver

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	196451
Processor package size	46 x 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
