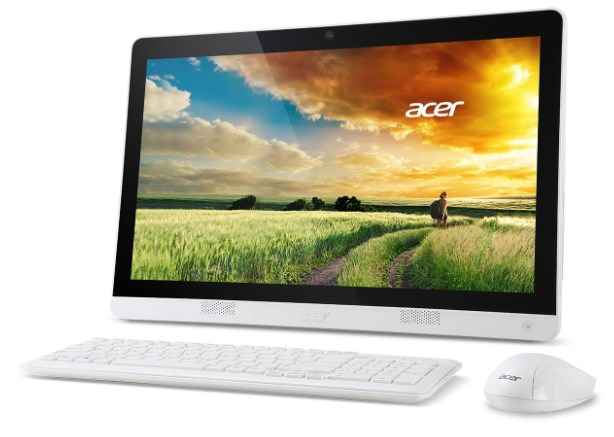

Acer Aspire AZC-606-MB27 Intel® Pentium® J2900

49.5 cm (19.5") 1600 x 900 pixels All-in-One PC 8 GB DDR3-SDRAM 1 TB HDD Windows 8.1 White

Model AZC-606-MB27Part no. DQ.SUTAL.001

139 specifications

Display49.5 cm (19.5")
Resolution1600 x 900 pixels
ProcessorIntel® Pentium®
Memory8 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 49.5 cm (19.5")
Resolution: 1600 x 900 pixels
Processor: Intel® Pentium®
Memory: 8 GB
Storage: 1 TB
Graphics: Not available

Brand: Acer
Category: All-in-One PCs/Workstations
Model: AZC-606-MB27
Part number: DQ.SUTAL.001
Also known as: Acer Aspire AZC-606-MB27 Intel® Pentium® J2900 49.5 cm (19.5") 1600 x 900 pixels All-in-One PC 8 GB DDR3-SDRAM 1 TB HDD Windows 8.1 White

Specifications

139 specifications in 18 groups

Display

Specification	Value
Display diagonal	49.5 cm (19.5")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
Full HD	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	J2900
Processor cores	4
Processor threads	4
Processor boost frequency	2.66 GHz
Processor frequency	2.41 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1170
64-bit computing	Yes
Thermal Design Power (TDP)	10 W
FSB Parity	No
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0
Processor code	SR1SB
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Pentium J2000 Series for Desktop
Stepping	B3
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	688 MHz
On-board graphics card burst frequency	896 MHz
On-board graphics card dynamic frequency (max)	896 MHz
On-board graphics card DirectX version	11.2

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	2.5 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Camera resolution	1920 x 1080 pixels

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	No
Combo headphone/mic port	Yes
Mini PCI Express slots	1

Design

Specification	Value
Product colour	White

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit
Bundled software	Acer Remote

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	78868
Processor package size	25 X 27 mm
Thermal Monitoring Technologies	No

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	480 mm
Depth (with stand)	313 mm
Height (with stand)	55.4 mm

Certificates

Specification	Value
Compliance certificates	RoHS

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
Autonomy mode	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Storage drive interface	Serial ATA
