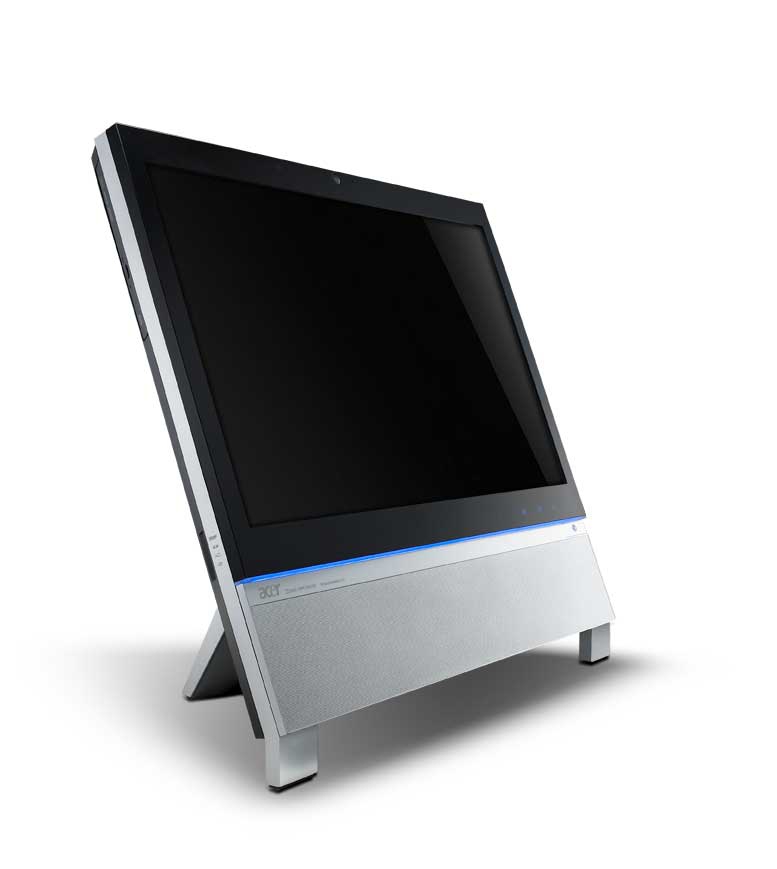

Acer AZ3730-MR20P Intel® Pentium® E5800

54.6 cm (21.5") 3 GB DDR3-SDRAM 500 GB Intel® GMA X4500 Windows 7 Home Premium Silver

Model AZ3730-MR20PPart no. PW.SF4P2.001EAN 099802962470

110 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: AZ3730-MR20P
Part number: PW.SF4P2.001
EAN / UPC: 099802962470
Also known as: Acer AZ3730-MR20P Intel® Pentium® E5800 54.6 cm (21.5") 3 GB DDR3-SDRAM 500 GB Intel® GMA X4500 Windows 7 Home Premium Silver

110 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E5800
Processor cores	2
Processor threads	2
Processor frequency	3.2 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	LGA 775 (Socket T)
Thermal Design Power (TDP)	65 W
Bus type	FSB
CPU multiplier (bus/core ratio)	16
FSB Parity	No
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
Processor code	SLGTG
Processor codename	Wolfdale
Processor front side bus	800 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E5000 Series for Desktop
Stepping	R0
Tcase	74.1 °C
Conflict-Free processor	No
ECC supported by processor	No

Specification	Value
Total storage capacity	500 GB
Number of HDDs installed	1
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMCmicro, MS Duo, MS PRO, MS PRO Duo, SD, xD

Specification	Value
Discrete graphics card model	Intel® GMA X4500
On-board graphics card	Yes

Specification	Value
Built-in microphone	Yes
Audio system	HD

Specification	Value
Built-in camera	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	No
Headphone outputs	1
Microphone in	Yes
Firewire (IEEE 1394) ports	0
PS/2 ports quantity	2
Serial ports quantity	0

Specification	Value
Product colour	Silver

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42802
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes

Specification	Value
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Display	LCD TFT
Display included	Yes
Megapixel (approx.)	2 MP
Networking features	Gigabit Ethernet
Number of processors installed	1
Parallel ports quantity	0
Power supply	220 W
Speakers	2
TV tuner integrated	Yes
TV tuner type	DVB-T
