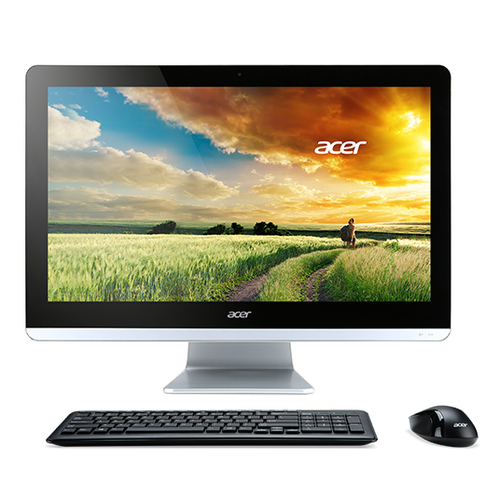

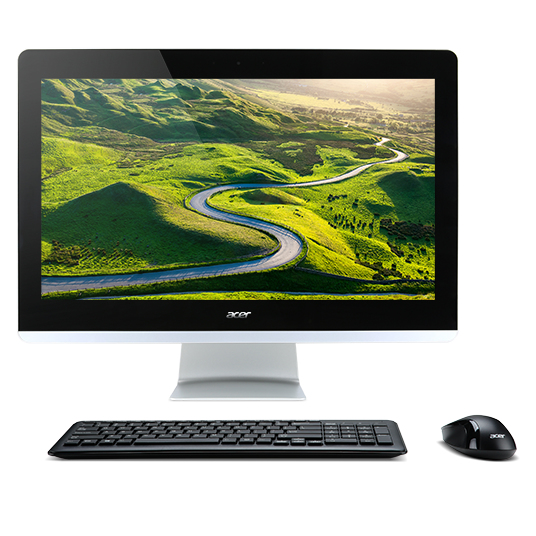

Acer Aspire AZ3-705-ES61 Intel® Pentium® 3805U

54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR3L-SDRAM 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac) Bla

Model AZ3-705-ES61Part no. DQ.B2FAA.001

127 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 1 TB
Graphics: Not available

Brand: Acer
Category: All-in-One PCs/Workstations
Model: AZ3-705-ES61
Part number: DQ.B2FAA.001
Also known as: Acer Aspire AZ3-705-ES61 Intel® Pentium® 3805U 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR3L-SDRAM 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac) Bla

Specifications

127 specifications in 17 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Panel type	TFT
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	3805U
Processor cores	2
Processor threads	2
Processor frequency	1.9 GHz
Processor cache	2 MB
Processor cache type	L3
Processor socket	BGA 1168
System bus rate	5 GT/s
Thermal Design Power (TDP)	15 W
Configurable TDP-down frequency	0.6 GHz
Configurable TDP-down	10 W
Bus type	DMI2
Maximum number of PCI Express lanes	12
PCI Express configurations	2x4, 4x1
PCI Express slots version	2.0
Processor code	SR210
Processor codename	Broadwell
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Pentium 3000 series for Mobile
Stepping	E0
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD±RW
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	100 MHz
On-board graphics card dynamic frequency (max)	800 MHz
On-board graphics card DirectX version	11.2/12

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth Low Energy (BLE)	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Headphone outputs	1

Design

Specification	Value
Product colour	Black, Stainless steel

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	84813
Processor package size	40 x 24 x 1.3 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	65 W

Weight & dimensions

Specification	Value
Width (with stand)	542.5 mm
Depth (with stand)	35.5 mm
Height (with stand)	355 mm

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	BSMI VCCI CE FCC CB

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
Autonomy mode	No
