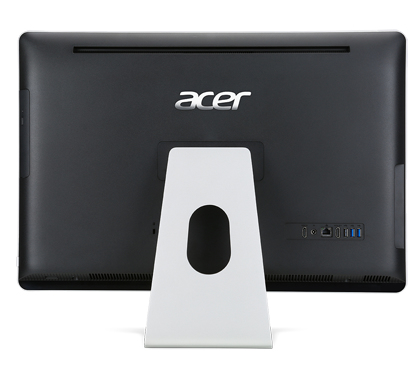

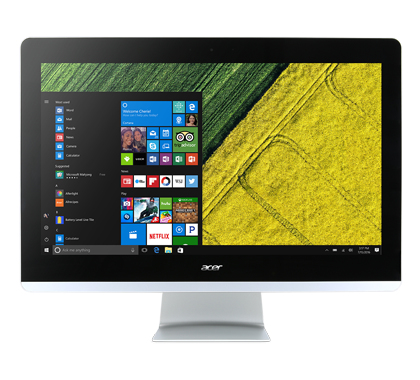

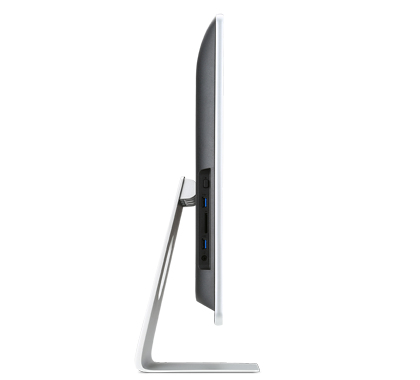

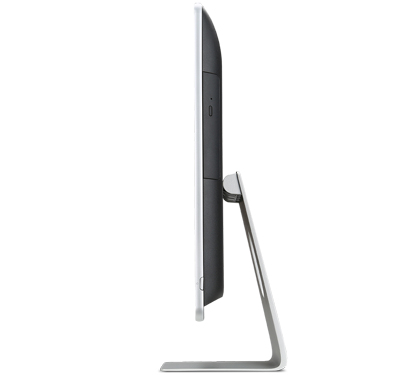

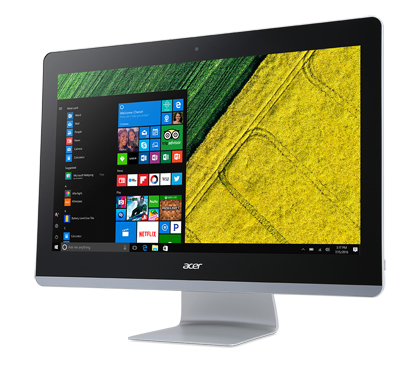

Acer Aspire AZ22-780-MC11 Intel® Core™ i3 i3-7100T
Acer

Aspire AZ22-780-MC11 Intel® Core™ i3 i3-7100T

54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 6 GB DDR4-SDRAM 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac)

Model AZ22-780-MC11Part no. DQ.B82AL.009EAN 191114412190

132 specifications
  • Display54.6 cm (21.5")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i3
  • Memory6 GB
  • Storage1 TB
  • SpeedWi-Fi 5 (802.11ac)
See all specifications

Overview

Display
54.6 cm (21.5")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i3
Memory
6 GB
Storage
1 TB
Speed
Wi-Fi 5 (802.11ac)
Brand
Acer
Model
AZ22-780-MC11
Part number
DQ.B82AL.009
EAN / UPC
191114412190
Also known as
Acer Aspire AZ22-780-MC11 Intel® Core™ i3 i3-7100T 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 6 GB DDR4-SDRAM 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac)

Specifications

132 specifications in 19 groups

Display

Display diagonal54.6 cm (21.5")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
LED backlightYes
Display brightness250 cd/m²
Panel typeLCD
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i3
Processor generation7th gen Intel® Core™ i3
Processor modeli3-7100T
Processor cores2
Processor threads4
Processor frequency3.4 GHz
Processor cache3 MB
Processor cache typeSmart Cache
Processor socketLGA 1151 (Socket H4)
System bus rate8 GT/s
Thermal Design Power (TDP)35 W
Configurable TDP-down frequency2.4 GHz
Configurable TDP-down25 W
Bus typeDMI3
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
Processor codeSR35P
Processor codenameKaby Lake
Processor lithography14 nm
Processor operating modes64-bit
SteppingS0
Tjunction92 °C
Conflict-Free processorYes
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor1333,1600,2133,2400 MHz
Memory channels supported by processorDual
ECC supported by processorNo

Memory

Internal memory6 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory16 GB
Memory clock speed2400 MHz

Storage

Total storage capacity1 TB
Storage mediaHDD
Number of storage drives supported1
Total HDDs capacity1 TB
Number of HDDs installed1
HDD capacity1 TB
HDD speed5400 RPM
HDD size2.5"
Optical drive typeNo
Card reader integratedYes

Graphics

Discrete graphics cardNo
On-board graphics cardYes
On-board graphics card modelIntel® HD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1100 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x5912
On-board graphics card OpenGL version4.4

Audio

Built-in speaker(s)Yes
Number of speakers2

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates1000 Mbit/s
BluetoothYes
Bluetooth version4.0

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity4
HDMI ports quantity2
Audio outputYes

Design

Product colourBlack, Silver
On/off buttonYes

Performance

Product typeAll-in-One PC
Market positioningBusiness

Software

Operating system installedWindows 10 Home
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost TechnologyNo
Processor ARK ID97485
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015A

Power

AC adapter power90 W

Pen

Pen includedNo

Weight & dimensions

Width (with stand)542.5 mm
Depth (with stand)35.5 mm
Height (with stand)426.1 mm

Certificates

Compliance certificatesRoHS
CertificationCE, FCC, CB

Sustainability

Sustainability certificatesENERGY STAR

Packaging content

Mouse includedYes
Keyboard includedYes
Cables includedAC
Power cord includedYes
ManualYes

Other features

3DNo
Detachable displayNo
