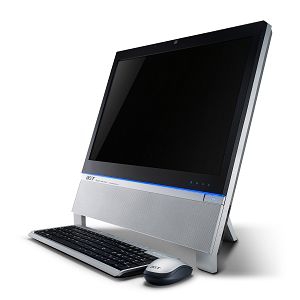

Aspire Z5751

Model Aspire Z5751Part no. PW.SF0E2.017EAN 4712842427254

132 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Aspire Z5751
Part numbers: PW.SF0E2.017, PW.SF0E2.027, PW.SF0E2.026, PW.SF0E2.013
EAN / UPC: 4712842427254, 4712842688945, 4712842688815, 4712842038320
Also known as: Acer Aspire Z5751 Intel® Core™ i5 i5-650 58.4 cm (23") 1920 x 1080 pixels 4 GB DDR3-SDRAM 1 TB Windows 7 Home Premium Silver

132 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-650
Processor cores	2
Processor threads	4
Processor boost frequency	3.46 GHz
Processor frequency	3.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	LGA 1156 (Socket H)
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	73 W
Bus type	DMI
CPU multiplier (bus/core ratio)	24
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	382 M
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processing Die size	81 mm²
Processor codename	Clarkdale
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-600 Desktop Series
Stepping	C2
Tcase	72.6 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Number of HDDs installed	1
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MMCmicro, MS Duo, MS PRO, MS PRO Duo, SD, xD

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz

Specification	Value
Built-in microphone	Yes
Audio system	HD

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	No
Headphone outputs	1
Microphone in	Yes
Firewire (IEEE 1394) ports	0
PS/2 ports quantity	2
Serial ports quantity	0

Specification	Value
Product colour	Silver

Specification	Value
Motherboard chipset	Intel® H57 Express

Specification	Value
Operating system installed	Windows 7 Home Premium

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43546
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Display	LCD TFT
Display included	Yes
Floppy drive installed	No
Networking features	Gigabit Ethernet
Number of processors installed	1
Parallel ports quantity	0
Platform	PC
Power requirements	100-240V
Power supply	220 W
Power supply type	AC
Speakers	2x 2.5W
TV tuner integrated	No
Wireless technology	WiFi
