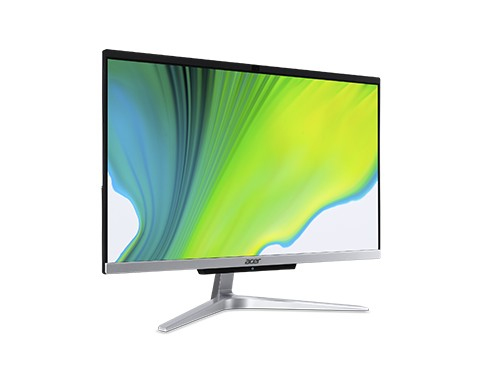

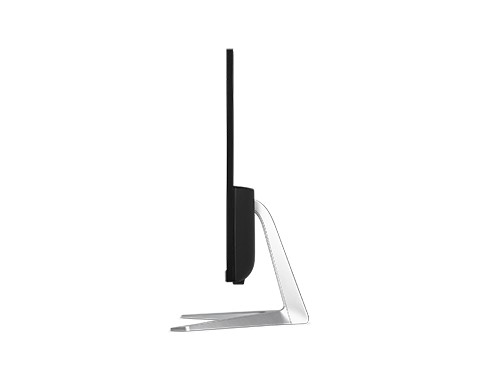

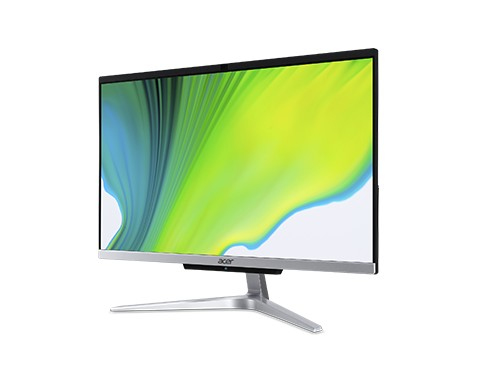

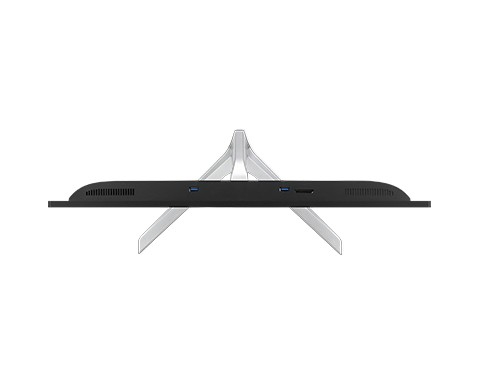

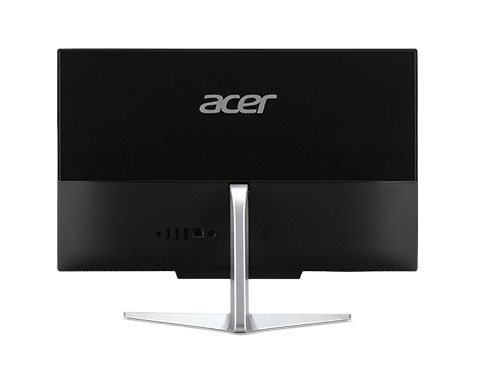

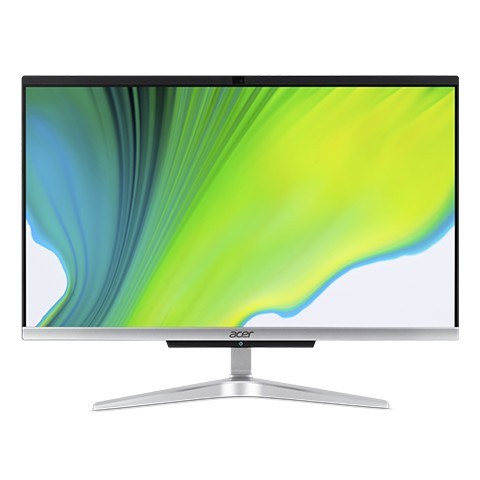

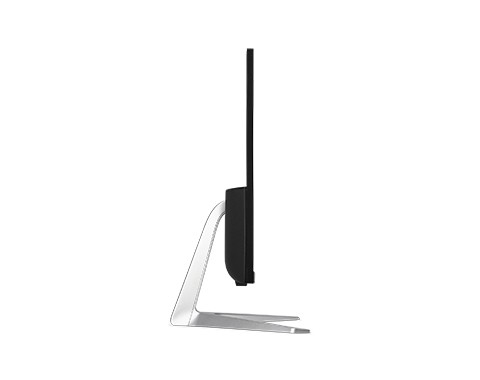

Aspire C24-963-UR14

Model Aspire C24-963-UR14Part no. DQ.BF7AA.002EAN 193199833785

88 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Aspire C24-963-UR14
Part number: DQ.BF7AA.002
EAN / UPC: 193199833785
Also known as: Acer Aspire C24-963-UR14 Intel® Core™ i5 i5-1035G1 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 12 GB DDR4-SDRAM 512 GB SSD Windows 10 Home Wi-Fi 5 (802.11a

88 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	10th gen Intel® Core™ i5
Processor model	i5-1035G1
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	1 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1526
System bus rate	4 GT/s
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.2 GHz
Configurable TDP-up	25 W
Configurable TDP-down frequency	0.7 GHz
Configurable TDP-down	13 W
PCI Express slots version	3.0
Processor lithography	10 nm
Processor operating modes	64-bit
Tjunction	100 °C
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR4-SDRAM
Memory clock speeds supported by processor	3200,3733 MHz

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	512 GB
Optical drive type	No

Specification	Value
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x8A56
On-board graphics card OpenGL version	4.5

Specification	Value
Ethernet LAN (RJ-45) ports	1

Specification	Value
Product colour	Silver
Colour name	Silver

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	196603
Processor package size	50 x 25 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0, AVX-512
Thermal Monitoring Technologies	Yes
