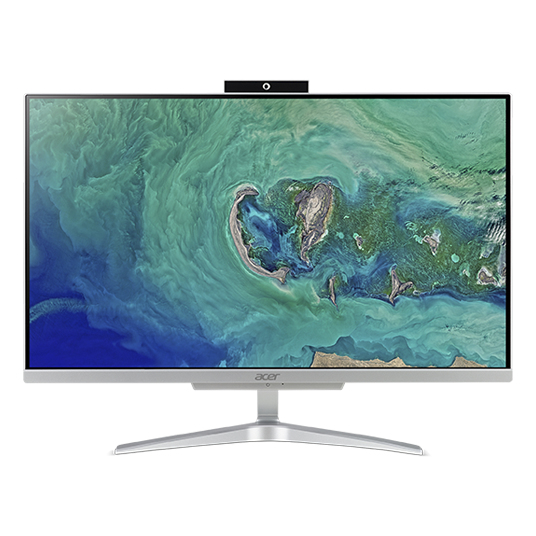

Aspire C24-963
Model Aspire C24-963Part no. DQ.BEREG.005
79 specifications
- Display60.5 cm (23.8")
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage1 TB
- SpeedWi-Fi 5 (802.11ac)
- TypeAll-in-One PC
Overview
- Display
- 60.5 cm (23.8")
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 1 TB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- All-in-One PC
- Brand
- Acer
- Category
- All-in-One PCs/Workstations
- Model
- Aspire C24-963
- Part number
- DQ.BEREG.005
- Also known as
- Acer Aspire C24-963 Intel® Core™ i5 i5-1035G1 60.5 cm (23.8") All-in-One PC 8 GB DDR4-SDRAM 1 TB SSD Wi-Fi 5 (802.11ac) Black, Stainless steel
Specifications
79 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | LCD |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-1035G1 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 1 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1526 |
| System bus rate | 4 GT/s |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 1.2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down frequency | 0.7 GHz |
| Configurable TDP-down | 13 W |
| PCI Express slots version | 3.0 |
| Processor lithography | 10 nm |
| Processor operating modes | 64-bit |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 3200,3733 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x8A56 |
| On-board graphics card OpenGL version | 4.5 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Stainless steel |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
Software
| Specification | Value |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 196603 |
| Processor package size | 50 x 25 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0, AVX-512 |
| Thermal Monitoring Technologies | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 538.4 mm |
| Depth (with stand) | 37.2 mm |
| Height (with stand) | 398.9 mm |
| Weight (with stand) | 3.2 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
