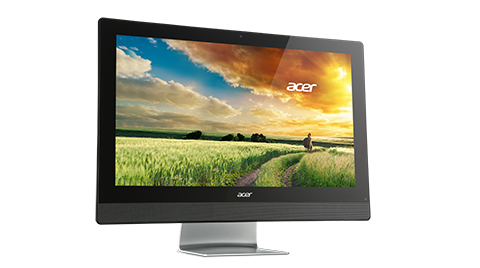

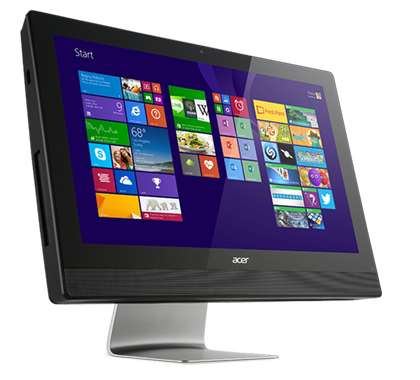

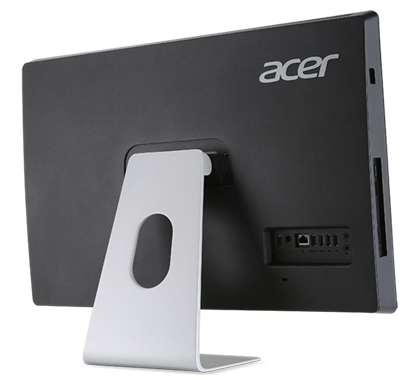

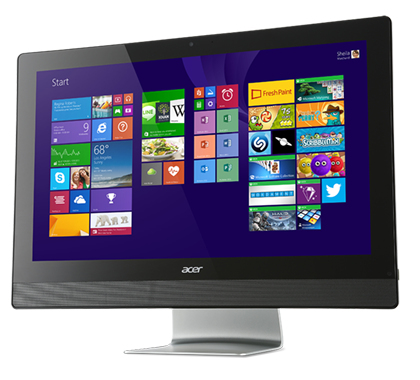

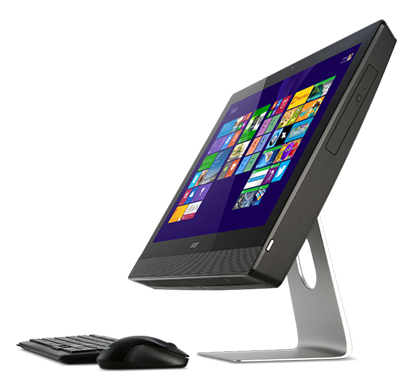

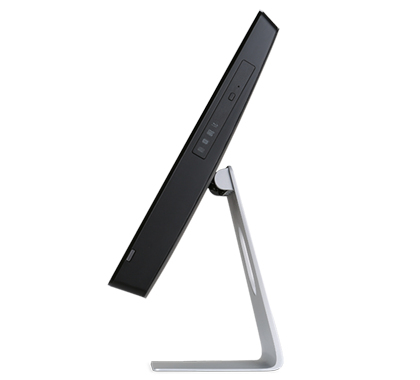

Aspire AZ3-615-UR13

Model Aspire AZ3-615-UR13Part no. DQ.SV9AA.004EAN 887899638091

134 specifications

Overview

Brand: Acer
Category: All-in-One PCs/Workstations
Model: Aspire AZ3-615-UR13
Part number: DQ.SV9AA.004
EAN / UPC: 887899638091
Also known as: Acer Aspire AZ3-615-UR13 Intel Pentium G G3220T 58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Wi-Fi 4 (802.11n

134 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G3220T
Processor cores	2
Processor threads	2
Processor frequency	2.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1150 (Socket H3)
System bus rate	5 GT/s
Thermal Design Power (TDP)	35 W
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of QPI links	0
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR1CL
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Pentium G3000 series for Desktop
Stepping	C0
Tcase	66.4 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	1.024 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	11.1

Specification	Value
Built-in camera	Yes

Specification	Value
Disc types supported	DVD+R, DVD+RW, DVD-R, DVD-RAM, DVD-RW

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
FireWire 800	No
Mini PCI Express slots	1
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Specification	Value
Product colour	Black

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	77774
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013A
