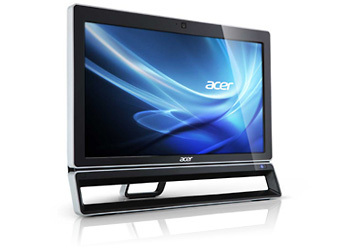

Acer 770 Intel® Pentium® G620

54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Black

Model 770Part no. PW.SHNE2.010EAN 4717276928544

144 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: Acer
Category: All-in-One PCs/Workstations
Model: 770
Part number: PW.SHNE2.010
EAN / UPC: 4717276928544
Also known as: Acer 770 Intel® Pentium® G620 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Black

Specifications

144 specifications in 18 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Native aspect ratio	16:9
Display number of colours	16.78 million colours

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	G620
Processor cores	2
Processor threads	2
Processor frequency	2.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	26
PCI Express slots version	2.0
Processor code	SR05R
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Stepping	Q0
Tcase	69.1 °C
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s
Memory channels supported by processor	Dual

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory slots	2x SO-DIMM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	7200 RPM
HDD interface	SATA II
Number of SSDs installed	0
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO Duo, MS Pro-HG Duo, SD, SDHC

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
Combo headphone/mic port	No
DC-in jack	Yes
Firewire (IEEE 1394) ports	0
ExpressCard slot	No
PS/2 ports quantity	0
Serial ports quantity	0
eSATA ports quantity	0
S/PDIF out port	Yes

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H61

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Bundled software	Microsoft Office Starter Bing Bar Windows Live Essentials

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53480
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	532 mm
Depth (with stand)	58 mm
Height (with stand)	414 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Numeric keypad	Yes
AC adapter included	Yes
Cables included	Yes
Remote control included	Yes

Other features

Specification	Value
3D	No
Graphics card family	Intel
BD interface type	SATA
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display	LCD
Display included	Yes
Floppy drive installed	No
Internal modem	No
Modem (RJ-11) ports	0
Number of processors installed	1
Parallel ports quantity	0
Power supply	135 W
Power supply type	AC
SmartCard slot	No
TV tuner integrated	Yes
TV tuner type	DVB-T
TV-out	No
