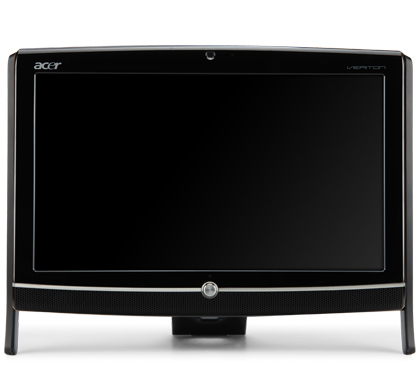

Acer Aspire 650 Intel Atom® D2700

47 cm (18.5") 1366 x 768 pixels 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Black

Model 650Part no. DQ.SK7ET.001EAN 4712196275877

114 specifications

Display47 cm (18.5")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 47 cm (18.5")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 500 GB
Graphics: Not available

Brand: Acer
Category: All-in-One PCs/Workstations
Model: 650
Part numbers: DQ.SK7ET.001, DO.SJUER.002, DO.SJUER.006, DO.SJ8ER.005
EAN / UPC: 4712196275877
Also known as: Acer Aspire 650 Intel Atom® D2700 47 cm (18.5") 1366 x 768 pixels 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Black

Specifications

114 specifications in 16 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	Not supported
Full HD	No
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor cores	2
Processor threads	4
Processor frequency	2.13 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
System bus rate	2.5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	10 W
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	4
Processor code	SR0D9
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Atom D2700 Series
Stepping	B2
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	4 GB
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO Duo, SD

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	640 MHz

Audio

Specification	Value
Built-in speaker(s)	Yes

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
Total number of SATA connectors	2

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Motherboard chipset	Intel® NM10 Express

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel ME Firmware Version	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	59683
Processor package size	22 X 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Weight & dimensions

Specification	Value
Width (with stand)	484 mm
Depth (with stand)	54.6 mm
Height (with stand)	381 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
Graphics card family	Intel
Power supply	65 W
Storage drive interface	Serial ATA
