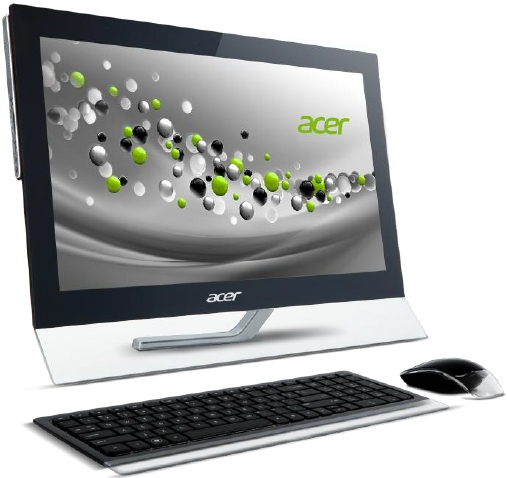

Acer Aspire 5600U-002A Intel® Core™ i3 i3-3110M

58.4 cm (23") Touchscreen 4 GB DDR3-SDRAM 1 TB HDD+SSD NVIDIA® GeForce® GT 630M Windows 8 Black

Model 5600U-002APart no. DQ.SMLEF.002EAN 4712196342258

126 specifications

Display58.4 cm (23")
ProcessorIntel® Core™ i3
Memory4 GB
Storage1 TB
GraphicsNVIDIA® GeForce® GT 630M
OSWindows 8

See all specifications

Overview

Display: 58.4 cm (23")
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® GT 630M
OS: Windows 8

Brand: Acer
Category: All-in-One PCs/Workstations
Model: 5600U-002A
Part number: DQ.SMLEF.002
EAN / UPC: 4712196342258
Also known as: Acer Aspire 5600U-002A Intel® Core™ i3 i3-3110M 58.4 cm (23") Touchscreen 4 GB DDR3-SDRAM 1 TB HDD+SSD NVIDIA® GeForce® GT 630M Windows 8 Black

Specifications

126 specifications in 18 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Touchscreen	Yes
Full HD	No
LED backlight	Yes
Touch technology	Multi-touch

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	3rd gen Intel® Core™ i3
Processor model	i3-3110M
Processor cores	2
Processor threads	4
Processor frequency	2.4 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	35 W
Bus type	DMI
CPU multiplier (bus/core ratio)	24
FSB Parity	No
Integrated 4G WiMAX	Yes
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Processor code	SR0N2
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-3100 Mobile Series
Stepping	L1
Tjunction	90 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD+SSD
Number of storage drives installed	2
Number of HDDs installed	1
HDD speed	5400 RPM
Number of SSDs installed	1
Optical drive type	DVD Super Multi
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 630M
Discrete graphics card memory	1 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	5 W
Dolby technologies	Dolby Home Theater v4

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Motherboard chipset	Intel HM77 Express

Software

Specification	Value
Operating system installed	Windows 8

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65700
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	135 W

Weight & dimensions

Specification	Value
Width (with stand)	574 mm
Depth (with stand)	268.5 mm
Height (with stand)	422 mm
Weight (with stand)	18 kg

Certificates

Specification	Value
Certification	CE, FCC, CB, BSMI

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
Storage drive interface	Serial ATA
TV tuner integrated	Yes
